      Temper Proof End Seal

      Temper Proof End Seal
      Temper Proof End Seal
      Send Inquiry
      Product Code : 01
      Product Description

      Tamper Proof End Seal

      • 36 Kv Cable Joints
      • tamper-2

      Tamper Proof End Seal is Heat Shrink End Cap, used to seal the ends of all types of Cables & to protect it from ingress of water/moisture. The caps are manufactured from high quality cross linked polyolefin material.

      Tamper Proof Features / Benefits :

      • Permanent Foolproof Seal to the Cable end.
      • Can not be tampered, removed or re-used.
      • Can be considered as Factory fitted Cable end seal.
      • Customised Logo Printing with Special High Performance Non Removable Ink.
      • Warranty of Cable length can be considered as void in case Cable is found without Tamper Proof end seal.
      • Avoids unwanted customer claims for Shortage/Pilferage of Cable length.

      Compatible with most commonly used 36 Kv Cable Joints i.e. XLPE, PVC, PILC or Rubber Sheathed Cable.

      Hot Melt adhesive lining provides permanent seal on irregular cable sheaths.

      Excellent resistance to weathering, moisture, contamination and adverse environmental conditions, according to IP 68 (Ingress Protection).

      • Valved End caps (V) available for pressurized application for Telecom cables.
      • Special Relief valved End Caps (RV) available for degassing application in High Voltage Power cables.
      SELECTION CHART
      All dimensions are in mm
      • CODE NO.
      • Ds (Min.)
      • Df (Max.)
      • Ls (Min.)
      • Tf(±10%)
      • CABLE RANGE
      • GEC 001S
      • 6
      • 2
      • 25
      • 2.0
      • 2-4
      • GEC 001SA
      • 8
      • 2
      • 25
      • 2.0
      • 4-6
      • GEC 001
      • 12
      • 4
      • 40
      • 2.3
      • 4-8
      • GEC 001L
      • 12
      • 4
      • 58
      • 2.3
      • 4-8
      • GEC 001 A
      • 14
      • 4
      • 38
      • 2.3
      • 4-11
      • GEC 001 AL
      • 14
      • 4
      • 58
      • 2.3
      • 4-11
      • GEC 101
      • 20
      • 7.5
      • 55
      • 2.3
      • 8-16
      • GEC 101 L
      • 20
      • 8
      • 75
      • 2.3
      • 8-16
      • GEC 101 A
      • 25
      • 8
      • 55
      • 2.3
      • 8-20
      • GEC 101 AL
      • 25
      • 8
      • 75
      • 2.5
      • 8-20
      • GEC 102
      • 30
      • 11
      • 75
      • 2.5
      • 12-26
      • GEC 102 A
      • 35
      • 11
      • 75
      • 2.5
      • 12-30
      • GEC 102 AL
      • 35
      • 11
      • 105
      • 2.5
      • 12-30
      • GEC 201
      • 40
      • 15
      • 90
      • 3.3
      • 16 - 35
      • GEC 201 L
      • 40
      • 15
      • 120
      • 3.3
      • 16-35
      • GEC 201 A
      • 45
      • 15
      • 90
      • 3.3
      • 16-40
      • GEC 201 AL
      • 45
      • 15
      • 120
      • 3.3
      • 16-40
      • GEC 301
      • 55
      • 25
      • 125
      • 3.8
      • 25 - 47
      • GEC 301 L
      • 55
      • 25
      • 170
      • 3.8
      • 25 - 47
      • GEC 301 A
      • 63
      • 25
      • 125
      • 3.8
      • 25 - 55
      • GEC 301 AL
      • 63
      • 25
      • 170
      • 3.8
      • 25 - 55
      • GEC 401
      • 75
      • 35
      • 140
      • 4.0
      • 35 - 68
      • GEC 401 L
      • 75
      • 35
      • 180
      • 4.0
      • 35-68
      • GEC 401 A
      • 85
      • 36
      • 140
      • 4.0
      • 36 - 78
      • GEC 401 AL
      • 85
      • 35
      • 140
      • 4.0
      • 36-78
      • GEC 501
      • 100
      • 45
      • 160
      • 4.0
      • 45 - 90
      • GEC 501 L
      • 100
      • 45
      • 200
      • 4.0
      • 45-90
      • GEC 501 A
      • 120
      • 45
      • 160
      • 4.0
      • 45 - 110
      • GEC 501 AL
      • 120
      • 45
      • 200
      • 4.0
      • 45-110
      • GEC 601
      • 130
      • 60
      • 155
      • 4.6
      • 64 - 120
      • GEC 601 L*
      • 130
      • 65
      • 300
      • 4.6
      • 67 - 120
      • GEC 701
      • 154
      • 60
      • 165
      • 4.6
      • 70 - 145
      • GEC 701 L*
      • 160
      • 65
      • 300
      • 4.5
      • 70 - 145
      • GEC 801 S*
      • 190
      • 125
      • 220
      • 4.0
      • 140 - 165
      • GEC 801*
      • 230
      • 125
      • 220
      • 4.0
      • 140 - 200
      • GEC 901*
      • 310
      • 120
      • 220
      • 7.0
      • 140 - 280
      • GEC 1001*
      • 400
      • 204
      • 220
      • 6.0
      • 230 - 360
      • GEC 1101*
      • 500
      • 200
      • 220
      • 6.0
      • 230 - 460

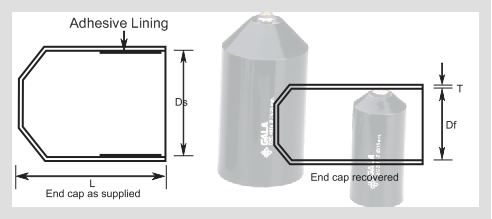

      tamper-3
      TECHNICAL SPECIFICATION
      • PROPERTIES
      • VALUE
      • STANDARD
      • Physical
      •
      •
      • Tensile Strength
      • 12 N/mm2 (MPA)(min.)
      • ASTM D638
      • Ultimate Elongation
      • 350% (Min.)
      • ASTM D638
      • Density
      • 1.05 ± 0.2 gm/cm3
      • ASTM D792
      • Hardness
      • 45 ? 10 Shore D
      • ASTM D2240
      • Water Absorption
      • 0.2 % (max.)
      • ASTM D570
      • Thermal
      •
      •
      • Accelerated Ageing
      • (120oC for 500 Hrs)
      • ASTM D2671
      • Tensile Strength
      • 11 N/mm2 (Mpa) (min.)
      • ASTM D 638
      • Ultimate Elongation
      • 300%(Min.)
      • ASTM D638
      • Low temperature Flexibility (-40oC for 4 Hrs.)
      • No Cracking
      • ASTM D2671
      • Heat Shock (250oC for 30 Min.)
      • No Cracking or flowing
      • ESI 09-11
      • Shrink Temperature
      • 125oC
      • IEC 216
      • Continuous Temperature limit
      • -40oC to + 110oC
      • IEC 216
      • Electrical
      •
      •
      • Dielectric Strength
      • 12 KV/mm. (Min.)
      • ASTM D149
      • Volume Resistivity
      • 1 x 1014 Ohm.cm(min.)
      • ASTM D257
      • Dielectric Constant
      • 5 (Max.)
      • ASTM D150

      Technical Qualification Report : QR 1011
