Barrier Board Insulating Sheet for Switchgear Phase Barriers (GBBS)

About Barrier Board Insulating Sheet for Switchgear Phase Barriers (GBBS)

Switchgear cabinets and outdoor structures often have less clearance between phases, or between a live part and the structure, than the designer would like. Contaminants, moisture and animals can then cause inter-phase flashovers. Gala's Barrier Board Sheet (code GBBS) is a non-shrinkable polyolefin sheet installed as an insulating barrier in those places: between phases inside switchgear, and on the underside of structures where clearance is reduced.

The sheet is tough, resists mechanical impact and everyday wear, and is easily fabricated into shape. It can be cut and drilled for mounting with ordinary tools, without special equipment. The material is track and erosion resistant, resists chemicals, solvents, alkalis and salt, and is suitable for indoor and outdoor use.

Five grades are offered: 2.0, 3.0 and 5.0 mm thick in 670 mm width (GBBS-2, GBBS-3, GBBS-5) and 3.0 and 5.0 mm thick in 970 mm width (GBBS-3A, GBBS-5A), each in 15 m lengths. On Gala's sheet the material is rated for continuous use from -45 deg C to +105 deg C; Gala gives its mechanical and electrical values as typical laboratory values, not specification limits.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Non-shrinkable insulating barrier sheet
• Material: Polyolefin, track and erosion resistant
• Colour: Red-brown (as photographed)
• Operating temperature: -45 deg C to +105 deg C (continuous)
• Size range: 670 mm or 970 mm wide, 15 m long
• Wall type / thickness: 2.0, 3.0 or 5.0 mm
• Standards tested to: Test methods quoted on Gala's datasheet - ASTM D638, ASTM D792, ASTM D2240, ASTM D570, ASTM D2671, ASTM D149, ASTM D257, ASTM D150, ASTM D2303, IEC 216 (typical values)
• Application: Inter-phase barriers in switchgear; insulating the underside of structures with reduced clearance
• Installation: Cut to shape, drill and fix with insulated fasteners
• Country of origin: India
• Tensile strength: 10 N/mm2 min, typical (ASTM D638)
• Elongation at break: 350% min, typical (ASTM D638)
• Hardness: 40 +/- 5 Shore D (ASTM D2240)
• Packing: 15 m lengths

Sizes

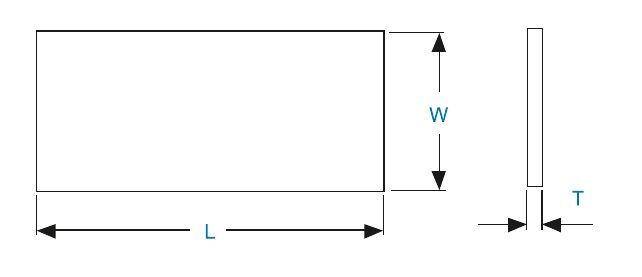

• GBBS-2 | width 670 mm | length 15 m | thickness 2.0 mm
• GBBS-3 | 670 mm | 15 m | 3.0 mm
• GBBS-5 | 670 mm | 15 m | 5.0 mm
• GBBS-3A | 970 mm | 15 m | 3.0 mm
• GBBS-5A | 970 mm | 15 m | 5.0 mm

Applications: Switchgear and panel manufacturers, substations, busduct makers, transformer and RMU builders, power utilities, switchgear retrofit and maintenance contractors
