Screened Separable Connector 24 kV 630 A (T Connector)

About Screened Separable Connector 24 kV 630 A (T Connector)

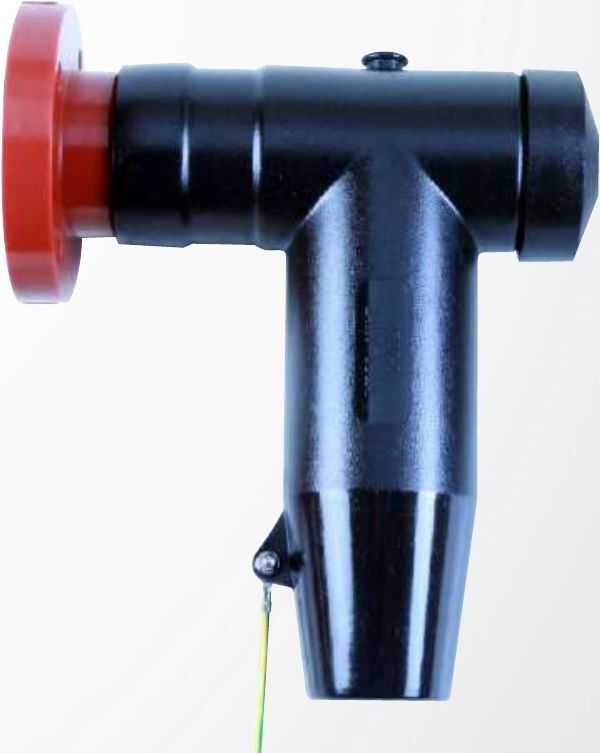

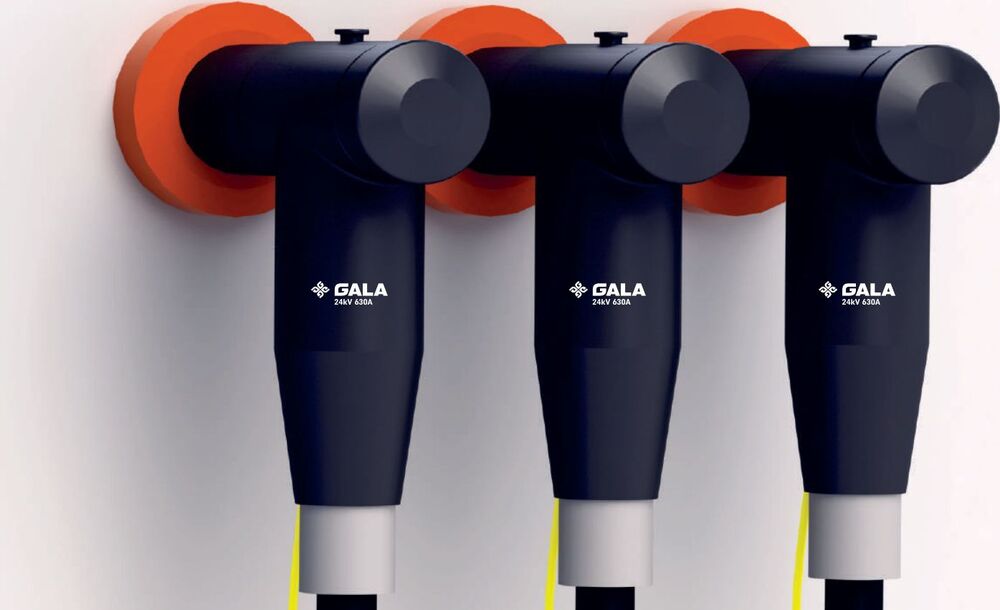

The Gala screened separable connector (GEB series) is a premoulded tee connector that connects single-core or three-core polymeric cable to medium voltage equipment fitted with Type C bushings to EN 50180 and EN 50181: ring main units, compact substations, switchgear and transformers. It is made from highly modified EPDM rubber with a conductive outer screen that is earthed, so the whole connection is touch-proof, fully screened and submersible, and it can be disconnected and reconnected.

Fitting needs no heat on the connector itself. The cable is prepared and wrapped with semiconductive tape; a greased cable adaptor with a built-in stress cone is pushed onto the insulation and a lug is fitted; the tee is pushed onto the bushing and bolted to its stud; an insulated plug and screened end cap close the front, and the screen is earthed. For three-core cable a conversion kit (heat shrink breakout, core tubes, copper braids, back-up ring and clamps) first splits the cable into three cores. A rear connector (GEBR) couples into the back of the tee so that a second cable can share the same bushing.

The connector is offered in 11 kV and 24 kV classes at 630 A continuous current, for conductors from 25 to 400 sq mm in copper or aluminium. Gala's 24 kV, 630 A connector was type tested at CPRI, Bangalore, in 2016 to IEC 60502-4 at 12/20 (24) kV. GSF states that each connector is factory tested for AC withstand and partial discharge.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Screened separable tee connector (front) and rear connector, bolted
• Material: Highly modified EPDM rubber, with conductive outer screen, insulation layer and conductive inner layer
• Colour: Black
• Voltage rating: 11 kV and 24 kV classes (up to 24 kV)
• Size range: Conductor 25 to 400 sq mm, copper or aluminium
• Standards tested to: IEC 60502-4 (type tested at CPRI, Bangalore, 2016, reports DCCD-15161 A, B and C, 12/20 (24) kV)
• Application: Connecting single-core and three-core polymeric MV cable to Type C bushings on RMUs, switchgear and transformers
• Installation: Cold, push-on and bolted (stud max 35 Nm; nut and insulated plug 30 Nm); heat shrink conversion kit for three-core cable
• Country of origin: India
• Current rating: 630 A continuous
• Bushing interface: EN 50180 and EN 50181, Type C
• AC withstand (24 kV class): 54 kV for 5 minutes (catalogue value)
• Impulse withstand (24 kV class): 125 kV, 10 impulses each polarity (catalogue value)
• Partial discharge: 10 pC max at 1.73 U0 (catalogue value)

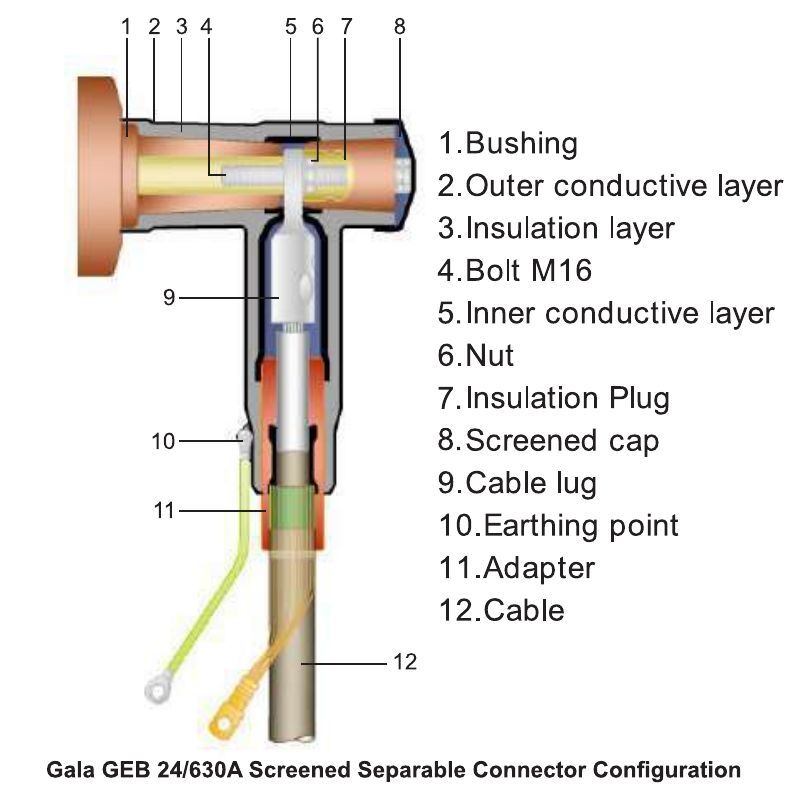

• Parts: Bushing interface, outer conductive layer, insulation layer, M16 bolt, inner conductive layer, nut, insulating plug, screened end cap, cable lug, earthing point, cable adaptor
• Ordering code: GEB + F (front) or R (rear) + voltage (kV) / current (A) + cable size (sq mm) + Al or Cu + pieces per kit + CON (with conversion kit). Example: GEBF 24/630 185 Al 03 CON
• Unit of sale: Per piece or per kit of 3 (code states pieces per kit)

Sizes

• No size chart; the ordering code selects voltage, current, conductor size and material.
• Voltage class | Current | Cable cross-section | Bushing
• 11 kV | 630 A | 25-400 sq mm | EN 50180/50181 Type C
• 24 kV | 630 A | 25-400 sq mm | EN 50180/50181 Type C

Applications: Ring main units, compact and package substations, MV switchgear, distribution transformers, solar and wind plant collection systems, industrial plants, utilities and EPC contractors
