Cable Terminal Protectors & Boots

(GTPE-500)

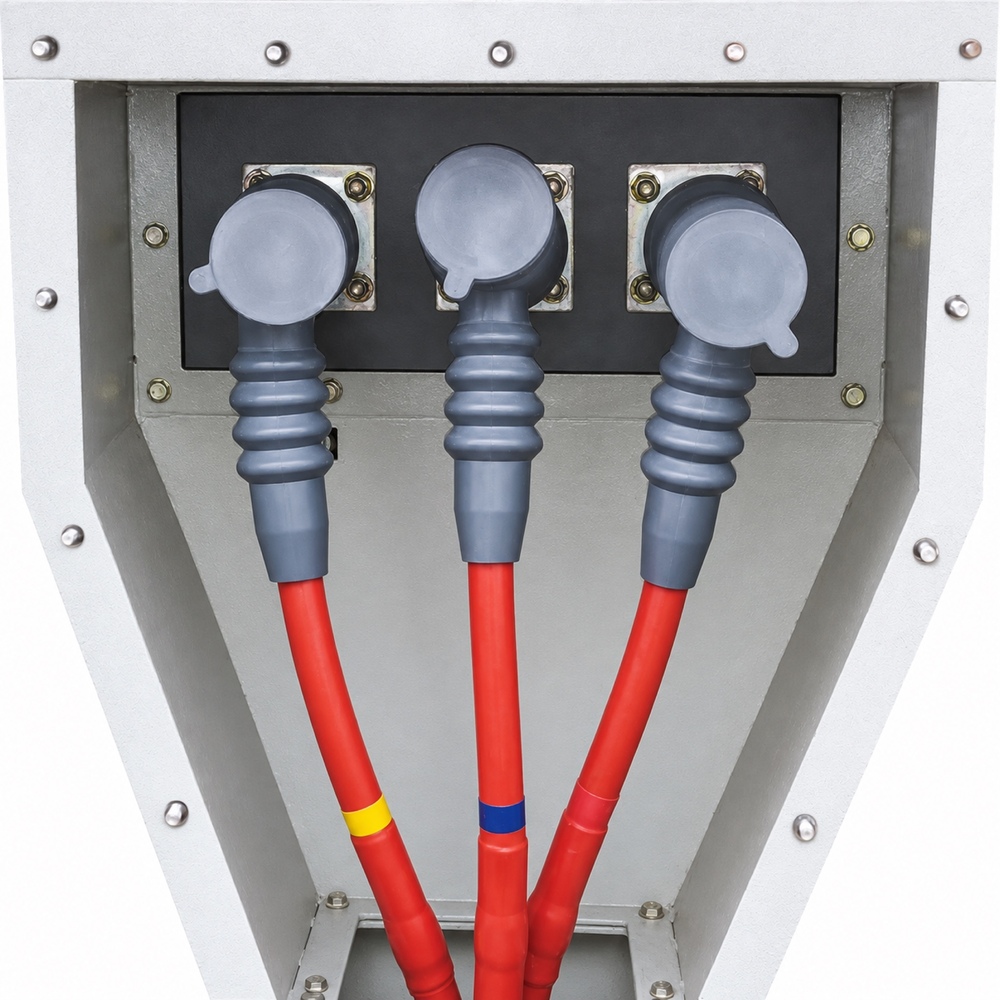

Cable Terminal Protector for RMU - Elbow Type (GTPE-500)

Price: 1 INR/Piece

Re-usable moulded elastomer elbow that insulates the cable termination and C-type bushing inside an 11 kV RMU cable box, guarding against flashover from humidity, reptiles and birds. Cables 25 to 400 sq mm.

Send Inquiry

Request To Call Back

(GRRB-1)

Reusable Right Angle Insulating Boot for Cable Terminations (GRRB)

Re-usable right-angle insulating boot of modified silicone rubber that seals the cable, lug and bushing of PILC or XLPE cable terminations against flashover from rodents and humidity. Removable for testing and maintenance.

Send Inquiry

Request To Call Back

(BUSHINGBOOT GSBB-1 / GSBB-2)

Bushing Boot for Switchgear and Transformers (BUSHINGBOOT GSBB)

Cold-applied bellows-type insulating boot that slides over a cable termination and onto a switchgear or transformer bushing, insulating the connection in a straight or right-angle position. Non-shrinkable, red.

Send Inquiry

Request To Call Back

(GSTB-1 / GRTB-1)

Cable Terminal Protector for Transformers - Straight and Right Angle (GSTB / GRTB)

Re-usable EPDM rubber boot, grommet and plug set that insulates power cable terminals on transformer, RMU and motor bushings in cramped cable boxes. Straight and right-angle shapes, cables 25 to 400 sq mm, 24 kV class.

Send Inquiry

Request To Call Back
