Heat Shrink Conductive End Cap for Unused Cable Ends (GCEC)

About Heat Shrink Conductive End Cap for Unused Cable Ends (GCEC)

A cable that is laid but not in use often runs beside live cables. The electric field of the live cables induces a potential in the unused one. Gala's conductive end cap is meant for the ends of such cables.

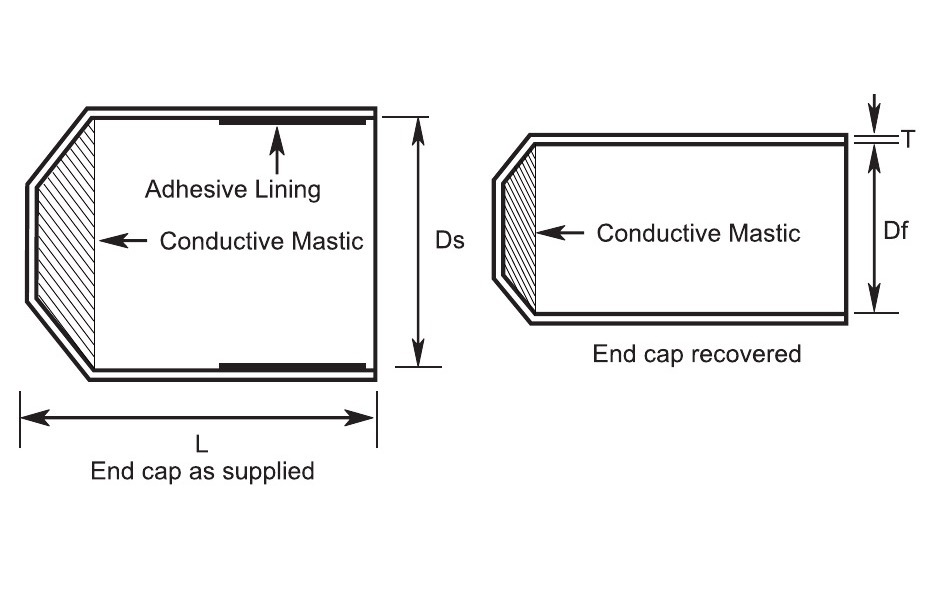

The cap is a closed-end moulding of cross-linked semi-conductive polyolefin, lined with hot-melt adhesive and with conductive mastic at its closed end. According to Gala, the conductive cap and the mastic inside it neutralise the potential induced in the unused cable. At the same time the cap does the job of a normal end cap: the adhesive seals irregular cable sheaths permanently and keeps water and moisture out.

Fitting is the same as for any heat-shrink end cap: clean and degrease the cable end, push the cap over it and shrink it with a gas torch from the closed end towards the cable until adhesive shows at the open end. Earthing of the cable and cap depends on your system, and Gala can advise on request.

Forty-one sizes, matching Gala's INSULCAP range, cover cable outside diameters from 2.5 mm to 460 mm, most in a standard and a long version. Guaranteed material values include a minimum tensile strength of 12 N/mm2, minimum elongation of 300 %, hardness of 45 +/- 10 Shore D and maximum water absorption of 0.2 %. Gala is an ISO 9001, ISO 14001 and ISO 45001 certified manufacturer.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Semi-conductive heat-shrinkable cable end cap with conductive mastic
• Material: Cross-linked semi-conductive polyolefin
• Colour: Black
• Size range: GCEC 001 S to GCEC 1101, cable outside diameter 2.5 to 460 mm
• Adhesive / sealant: Hot-melt adhesive lining; conductive mastic at the closed end
• Application: Sealing unused cable ends lying near live cables
• Installation: Heat-shrink with a gas torch, closed end first
• Country of origin: India
• Tensile strength: 12 N/mm2 min (ASTM D638)
• Elongation: 300 % min (ASTM D638)
• Hardness: 45 +/- 10 Shore D (ASTM D2240)
• Water absorption: 0.2 % max (ASTM D570)

Sizes

• All in mm. Supplied ID is the minimum internal diameter as supplied; choose by cable OD range.
• Code (standard / long) | Cable OD range | Supplied ID (min) | Length (min) standard / long
• GCEC 001 S | 2.5 - 4 | 6 | 25
• GCEC 001 SA | 2.5 - 6 | 8 | 25
• GCEC 001 / 001 L | 5 - 8 | 12 | 40 / 58
• GCEC 001 A / 001 AL | 5 - 11 | 14 | 40 / 58
• GCEC 101 / 101 L | 10 - 16 | 20 | 55 / 75
• GCEC 101 A / 101 AL | 10 - 20 | 25 | 55 / 75
• GCEC 102 / 102 L | 13 - 26 | 30 | 75 / 110
• GCEC 102 A / 102 AL | 13 - 30 | 35 | 75 / 115
• GCEC 201 / 201 L | 17 - 35 | 40 | 90 / 120
• GCEC 201 A / 201 AL | 17 - 40 | 45 | 90 / 120
• GCEC 301 / 301 L | 30 - 47 | 55 | 125 / 170
• GCEC 301 A / 301 AL | 30 - 55 | 63 | 125 / 170
• GCEC 401 / 401 L | 42 - 68 | 75 | 140 / 180
• GCEC 401 A / 401 AL | 42 - 78 | 85 | 140 / 180
• GCEC 501 / 501 L | 55 - 90 | 100 | 160 / 200
• GCEC 501 A / 501 AL | 55 - 110 | 120 | 160 / 200
• GCEC 601 / 601 L | 75 - 120 | 130 | 160 / 300
• GCEC 701 / 701 N / 701 L | 75 - 145 | 158 (701 L: 160) | 165 / 165 / 300
• GCEC 701 XXL | 85 - 160 | 180 | 585
• GCEC 801 S | 140 - 165 | 190 | 220
• GCEC 801 | 140 - 200 | 230 | 220
• GCEC 901 | 140 - 280 | 310 | 220
• GCEC 1001 | 230 - 360 | 400 | 220
• GCEC 1101 | 230 - 460 | 500 | 220

Applications: Power distribution utilities, substations and cable trenches, industrial plants, cable laying contractors, network extension projects with spare cables
