Heat Shrink End Cap with Pressure Valve for Telecom Cable (GEC-H V)

About Heat Shrink End Cap with Pressure Valve for Telecom Cable (GEC-H V)

Telecommunication cables kept under internal air or gas pressure need end caps that seal tight and still give a way to pressurise the cable. Gala's end cap with pressure valve does both.

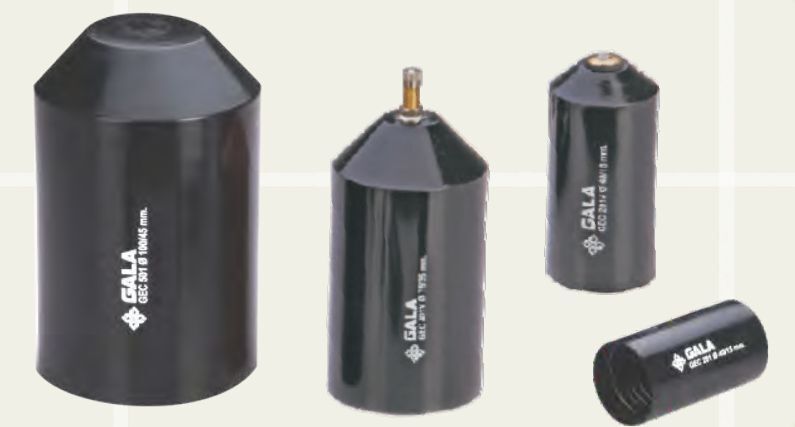

The cap is moulded from cross-linked rigid polyolefin, glossy black, with a hot-melt adhesive lining and a brass tyre-type valve stem at its closed tip. It is shrunk onto the cable end (shrink temperature 125 deg C), where the adhesive seals irregular sheaths permanently. Pressure is then applied to the cable through the valve, and the cap holds it, keeping moisture and contamination out. It suits XLPE, PVC, PILC and rubber-sheathed cables.

Gala rates the cap for constant internal pressure up to 2 bar and service temperatures up to 70 deg C. The cap material has a minimum tensile strength of 15 N/mm2 and a minimum elongation of 400 %, a hardness of 55 +/- 10 Shore D and a continuous material temperature limit of -40 to +100 deg C.

Six sizes cover cable outside diameters from 13 mm to 120 mm. Typical buyers are telecom operators, telecom cable contractors and cable manufacturers supplying pressurised cable. For HV cable drums that need gas let out rather than pressure held in, see Gala's de-gassing end cap with relief valve. Gala is an ISO 9001, ISO 14001 and ISO 45001 certified manufacturer.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Heat-shrinkable cable end cap with pressure valve
• Material: Cross-linked rigid polyolefin cap, brass valve stem
• Colour: Black
• Operating temperature: Up to 70 deg C in pressurised service; material limit -40 to +100 deg C (continuous)
• Size range: GEC-H 102 V to GEC-H 601 V, cable outside diameter 13 to 120 mm
• Adhesive / sealant: Hot-melt adhesive lining
• Application: Sealing and pressurising the ends of pressurised telecom cables
• Installation: Heat-shrink onto the cable end with a gas torch
• Country of origin: India
• Pressure rating: Constant internal pressure up to 2 bar (Gala rating)
• Shrink temperature: 125 deg C
• Tensile strength: 15 N/mm2 min (ASTM D638)
• Elongation: 400 % min (ASTM D638)
• Hardness: 55 +/- 10 Shore D (ASTM D2240)

Sizes

• All in mm.
• Code | Cable OD range | Supplied ID (min) | Recovered ID (max) | Length (min) | Recovered wall
• GEC-H 102 V | 13 - 26 | 30 | 11 | 75 | 2.5
• GEC-H 201 V | 17 - 35 | 40 | 15 | 90 | 3.3
• GEC-H 301 V | 30 - 47 | 55 | 25 | 125 | 3.5
• GEC-H 401 V | 42 - 68 | 75 | 35 | 140 | 4.0
• GEC-H 501 V | 55 - 90 | 100 | 45 | 160 | 4.0
• GEC-H 601 V | 75 - 120 | 130 | 60 | 160 | 4.6

Applications: Telecom cable networks, pressurised telecom cables, telecom cable jointing contractors, cable manufacturing
