LV Busbar Heat Shrink Sleeve - Thin Wall up to 3.3 kV (GSC)

About LV Busbar Heat Shrink Sleeve - Thin Wall up to 3.3 kV (GSC)

Gala's thin-wall busbar sleeve (GSC series, part of the BUSSLEEVE range) is the economical choice for insulating busbars in low-voltage switchboards, MCCs, PCCs, distribution boards and bus ducts. The sleeve is a thin cross-linked polyolefin tube supplied expanded. Slid over a copper or aluminium bar and heated, it shrinks down to follow the bar closely, giving a continuous insulating jacket that guards against accidental contact and flash-over between closely spaced bars and protects the copper from corrosion.

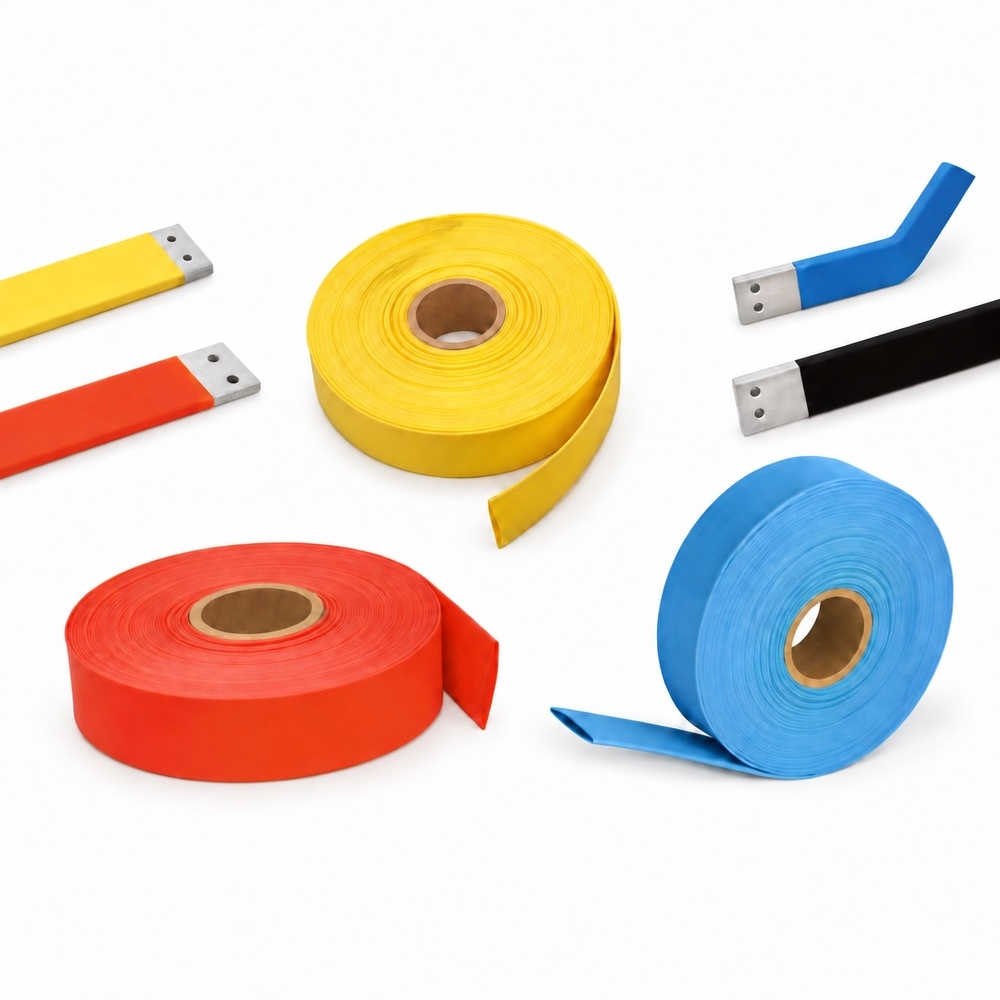

It is supplied in phase colours (the catalogue shows yellow, red and blue reels), so the same sleeve that insulates the bar also marks the phase. Twelve sizes cover rectangular bars from 16 to 236 mm (width plus thickness) and round bars from 12 to 150 mm; sizes up to 20/10 come on 100 m reels, larger sizes on 50 m or 25 m reels.

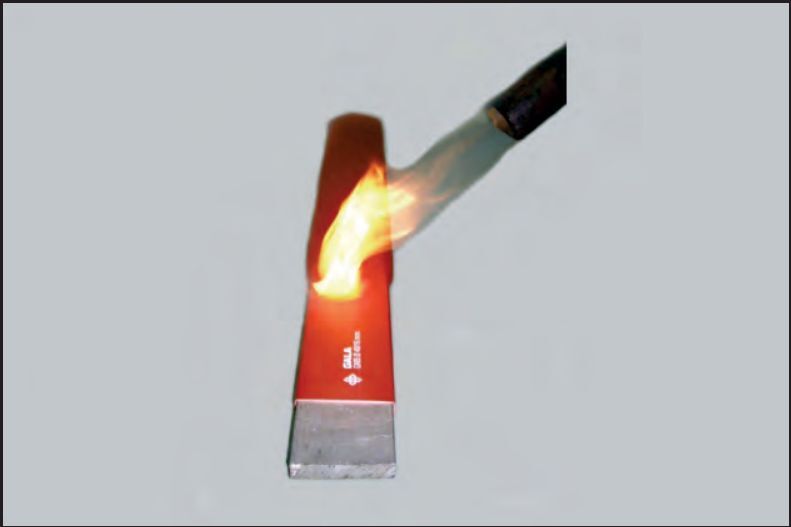

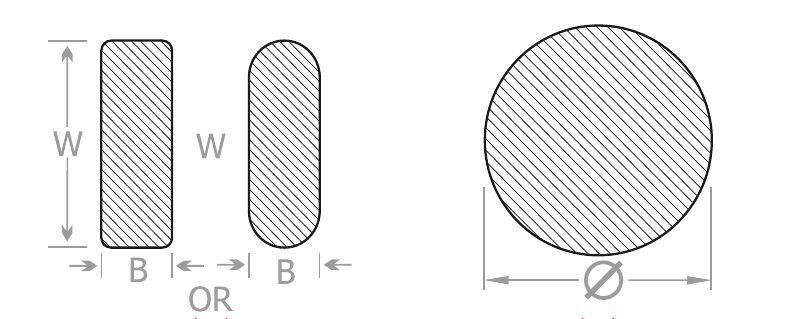

Choose the size from the busbar dimensions: add the bar's width and thickness and pick the size whose W+B range contains that figure. Fitting is by torch or oven. With a torch, preheat the bar, slide the sleeve into position and shrink it from one end. In an air-circulating oven, 120 to 150 deg C for about 10 to 15 minutes is typical, never less than 5. Trim the ends and punch holes only after the bar has cooled.

The GSC material is a UL Recognized Component (file E328193).

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Thin wall heat shrink busbar sleeve
• Material: Cross-linked polyolefin
• Colour: Yellow, red, blue (phase colours); black also shown
• Voltage rating: Up to 3.3 kV (GSF rating); UL recognised at 600 V
• Shrink ratio: 2:1
• Size range: GSC 16/8 to GSC 180/90; rectangular bar W+B 16 to 236 mm; round bar 12 to 150 mm
• Wall type / thickness: Thin wall, 0.69 mm to 1.50 mm after recovery (+5% / -2%)
• Standards tested to: UL Recognized Component, file E328193 (UL 224 basis, VW-1 flame rating, 125 deg C)
• Application: Insulation and phase identification of LV busbars in switchgear, panels and bus ducts
• Installation: Torch (preheat bar, shrink from one end) or air-circulating oven at 120 to 150 deg C for 10 to 15 minutes
• Country of origin: India
• Shrink temperature: 125 deg C
• Packing: Reels of 100 m, 50 m or 25 m depending on size

Sizes

• GSC 16/8 | D 16 / d 8 | T 0.69 | 100 m | rect W+B 16-18 | round 12
• GSC 20/10 | D 20 / d 10 | T 0.78 | 100 m | rect 22-25 | round 14-16
• GSC 30/15 | D 30 / d 15 | T 0.86 | 50 m | rect 33-38 | round 21-24
• GSC 40/20 | D 40 / d 20 | T 0.96 | 50 m | rect 44-52 | round 28-33
• GSC 50/25 | D 50 / d 25 | T 0.96 | 25 m | rect 53-65 | round 34-41
• GSC 60/30 | D 60 / d 30 | T 0.96 | 25 m | rect 64-75 | round 41-48
• GSC 70/35 | D 70 / d 35 | T 1.10 | 25 m | rect 72-90 | round 46-57
• GSC 80/40 | D 80 / d 40 | T 1.27 | 25 m | rect 86-100 | round 55-64
• GSC 100/50 | D 100 / d 50 | T 1.40 | 25 m | rect 104-125 | round 66-80
• GSC 120/60 | D 120 / d 60 | T 1.40 | 25 m | rect 110-150 | round 70-96
• GSC 150/75 | D 150 / d 75 | T 1.40 | 25 m | rect 151-190 | round 96-121
• GSC 180/90 | D 180 / d 90 | T 1.50 | 25 m | rect 179-236 | round 114-150

Applications: LV switchgear and panel builders, MCC and PCC manufacturers, bus duct makers, distribution boards, electrical contractors, industrial plants
