Silicone Interlocking Overhead Line Cover (GSIOC / GSDIOC)

About Silicone Interlocking Overhead Line Cover (GSIOC / GSDIOC)

Gala's silicone interlocking overhead line cover is a non-tracking silicone rubber profile that is fitted over a bare overhead conductor in the field and closed along its length by a hooked interlocking edge. It gives the conductor a layer of phase-to-phase and phase-to-ground insulation, so that birds, squirrels and other wildlife, tree branches or wind-blown debris touching the line no longer cause a flashover or an outage.

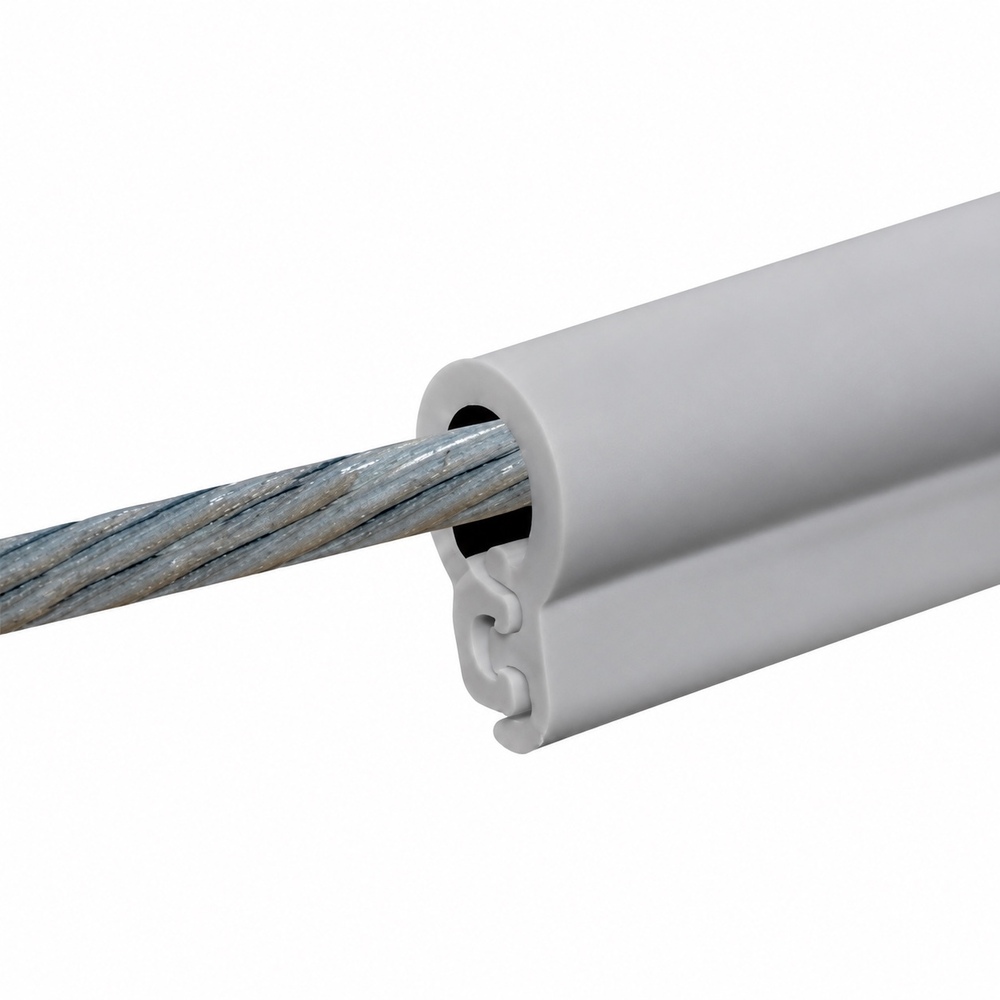

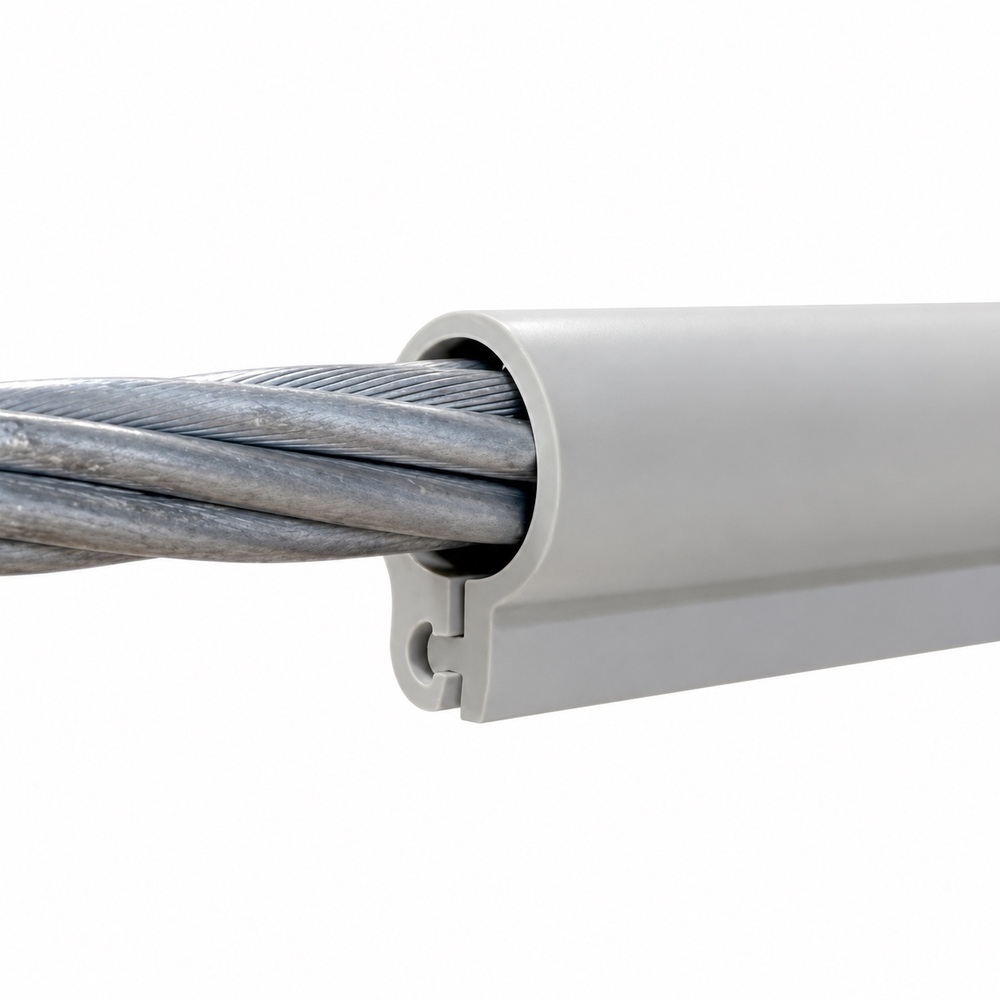

Two closures are made. The single interlocking cover (GSIOC) comes in a medium-voltage version, GSIOC-M, with a 2 mm wall for systems up to 12 kV, and a high-voltage version, GSIOC-H, with a 2.7 mm wall for systems up to 33 kV; each is made for conductors up to 12, 15, 18, 20 and 24 mm diameter. The double interlocking cover (GSDIOC-10) has two stacked hook profiles and a 3.8 mm wall, for conductors up to 10 mm diameter and systems up to 33 kV. Every size is packed in 15 m rolls.

Silicone rubber stays flexible in the cold (no cracking at -20 deg C), resists UV and weathering, and protects the conductor against corrosion from acid, alkali and salt. The cover is used by distribution utilities and line contractors on spans near trees, through wildlife areas, in substations and on jumpers, where retrofitting insulation is cheaper than replacing the conductor.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Interlocking overhead line cover (cold applied, not heat-shrinkable)
• Material: Non-tracking silicone rubber

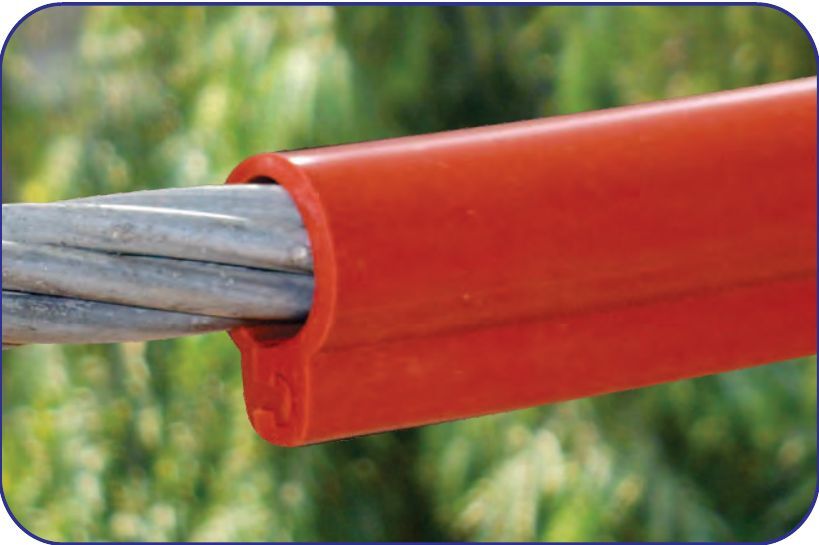

• Colour: Grey (also shown in red)
• Voltage rating: GSIOC-M up to 12 kV; GSIOC-H and GSDIOC up to 33 kV
• Size range: Conductor diameter up to 10, 12, 15, 18, 20 and 24 mm
• Wall type / thickness: 2 mm (GSIOC-M), 2.7 mm (GSIOC-H), 3.8 mm (GSDIOC)
• Adhesive / sealant: None
• Application: Insulating bare overhead conductors against contact by birds, animals and trees
• Installation: By hand over the conductor; closed along its length by a single or double hooked interlocking edge
• Country of origin: India
• Low temperature flexibility: No cracking at -20 deg C for 4 h
• Packing: 15 m per roll
• Test methods on Gala datasheet: ASTM D638, ASTM D792, ASTM D2240, ASTM D2671, ASTM D570, ASTM D257, ASTM D2303

Sizes

• GSIOC-M 12 / M 15 / M 18 / M 20 / M 24 | single interlocking, wall 2 mm | conductor dia up to 12 / 15 / 18 / 20 / 24 mm | 15 m roll | up to 12 kV
• GSIOC-H 12 / H 15 / H 18 / H 20 / H 24 | single interlocking, wall 2.7 mm | conductor dia up to 12 / 15 / 18 / 20 / 24 mm | 15 m roll | up to 33 kV
• GSDIOC-10 | double interlocking, wall 3.8 mm | conductor dia up to 10 mm | 15 m roll | up to 33 kV

Applications: Electricity distribution utilities, overhead distribution lines, substations, lines through forests and wildlife areas, wildlife protection programmes, power line contractors and EPC companies
