Heat Shrink Cable Repair Sleeve - Adhesive Lined Wraparound (GMRS)

About Heat Shrink Cable Repair Sleeve - Adhesive Lined Wraparound (GMRS)

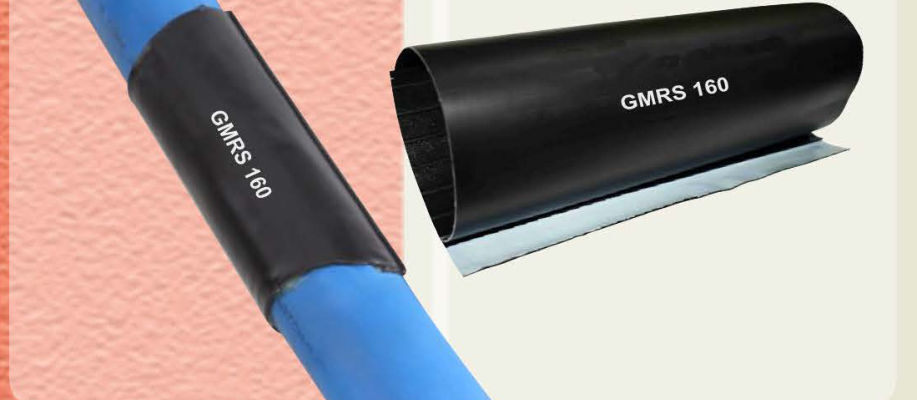

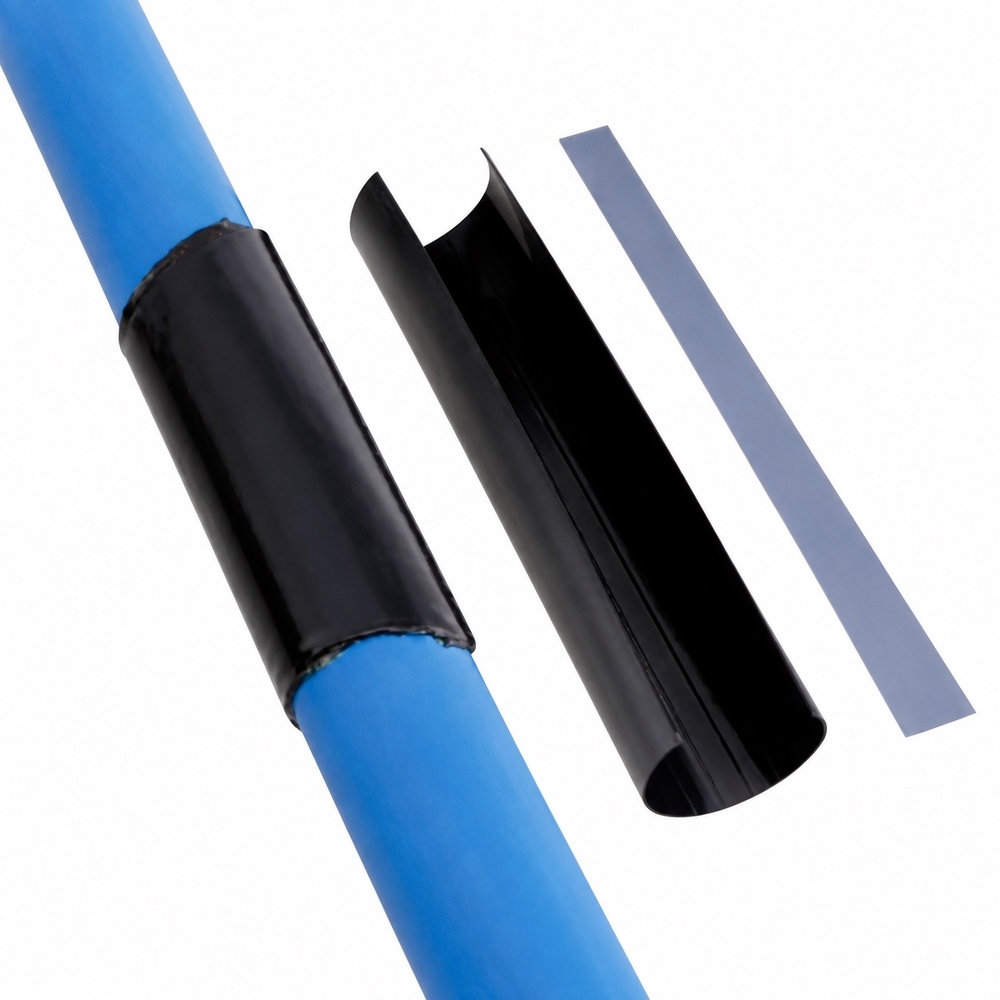

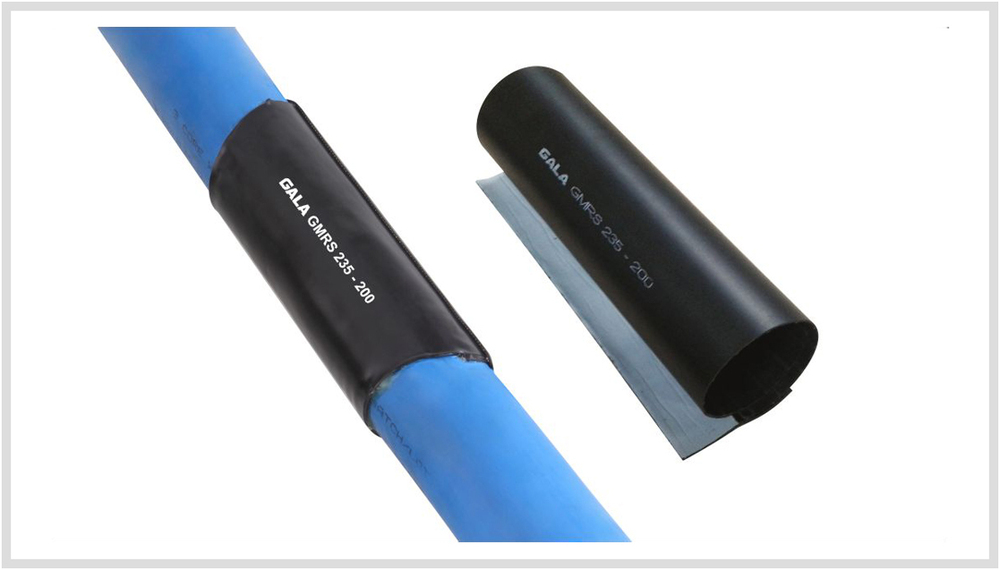

When a cable's outer sheath is cut, scraped or crushed, the usual fixes mean cutting the cable or shutting the circuit down. Gala's Heat Shrink Cable Repair Sleeve (GMRS) avoids both. It is a flat sheet of cross-linked polyolefin with a hot-melt adhesive layer. It is wrapped round the damaged section where the cable lies, the overlap is closed, and the sleeve is heat-shrunk so that it tightens onto the cable while the adhesive melts and seals the damage. The result is a permanent waterproof barrier and mechanical protection over the repaired length.

Typical jobs are repairing damaged cable jackets, retrofitting protection over existing connections, repairing frayed cables and connectors in confined or underground spaces, and covering cable-to-conduit transitions and bundles of cable, wire or rope. It is used on communication, power, utility, industrial, shipboard and offshore cables.

Installation: roughen and degrease the cable jacket and the sleeve's inner overlap, wrap the sleeve so that the damage sits opposite the overlap, close the overlap, then shrink with a gas torch from the centre towards the edges until adhesive comes out at both ends, rolling out any wrinkles while hot.

Nine sizes cover cable outside diameters from 5 mm to 192 mm. Smaller sizes come in 100, 200 or 300 mm lengths, larger ones in 300 or 400 mm, with a minimum overlap of 25 to 75 mm. Custom dimensions are available on request. Stocking a few sizes covers most repair needs.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Heat shrink cable repair sleeve, wraparound, adhesive lined
• Material: Cross-linked polyolefin backing with hot-melt adhesive layer
• Colour: Black
• Size range: 9 sizes, GMRS-19 to GMRS-250, for cable OD 5 to 192 mm
• Adhesive / sealant: Hot-melt adhesive layer
• Application: Repair of damaged cable sheaths and protection of existing connections without cutting the cable
• Installation: Wrap, close the overlap, shrink with a gas torch from the centre outwards until adhesive appears at the ends
• Country of origin: India
• Lengths: 100, 200 or 300 mm (GMRS-19 to GMRS-115); 300 or 400 mm (GMRS-160 to GMRS-250)
• Overlap: 25 mm min (small sizes) to 75 mm min (large sizes)

Sizes

• GMRS-19 | cable OD 5-10 mm | length 100/200/300 mm | overlap min 25 mm
• GMRS-30 | cable OD 8-17 mm | 100/200/300 mm | min 25 mm
• GMRS-40 | cable OD 12-28 mm | 100/200/300 mm | min 25 mm
• GMRS-70 | cable OD 24-55 mm | 100/200/300 mm | min 25 mm
• GMRS-115 | cable OD 40-85 mm | 100/200/300 mm | min 50 mm
• GMRS-160 | cable OD 55-122 mm | 300/400 mm | min 50 mm
• GMRS-180 | cable OD 60-132 mm | 300/400 mm | min 75 mm
• GMRS-200 | cable OD 65-150 mm | 300/400 mm | min 75 mm
• GMRS-250 | cable OD 75-192 mm | 300/400 mm | min 75 mm

Applications: Power utilities and cable maintenance teams, telecom and communication networks, shipbuilding, marine and offshore, industrial plants, cable laying contractors
