Heat Shrink LV Cable Breakout 2 to 7 Core up to 1.1 kV (INSULCORE)
Heat Shrink LV Cable Breakout 2 to 7 Core up to 1.1 kV (INSULCORE)
Heat Shrink LV Cable Breakout 2 to 7 Core up to 1.1 kV (INSULCORE)
Heat Shrink LV Cable Breakout 2 to 7 Core up to 1.1 kV (INSULCORE)

Heat Shrink LV Cable Breakout 2 to 7 Core up to 1.1 kV (INSULCORE)

MOQ : 1 Piece

Heat Shrink LV Cable Breakout 2 to 7 Core up to 1.1 kV (INSULCORE) Specification

  • Installation Guideline
  • Propane or butane torch, from the centre of the body outwards
  • Coating Type
  • Hot-melt adhesive lining
  • Size
  • 2, 3, 4, 5, 6 and 7 core; 71 sizes; body recovering to 8 to 175 mm, fingers to 2.5 to 55 mm
  • Product Type
  • Heat-shrinkable cable breakout (crutch seal) for multi-core LV cable
  • Rated Voltage
  • Up to 1.1 kV
  • Tensile Strength
  • 12 N/mm2 min (ASTM D638)
  • Application
  • Sealing the crutch of multi-core PVC, XLPE, rubber and PILC LV cables
  • Usage & Applications
  • Sealing the crutch of multi-core PVC, XLPE, rubber and PILC LV cables
  • Color
  • Black
  • Operating Temperature
  • -40 to +100 deg C (continuous)
  • Material
  • Cross-linked polyolefin



About Heat Shrink LV Cable Breakout 2 to 7 Core up to 1.1 kV (INSULCORE)

Where the outer sheath of a multi-core cable is stripped back and the cores fan out, the crutch is the weakest point for water entry. Gala's INSULCORE LV breakout seals it.

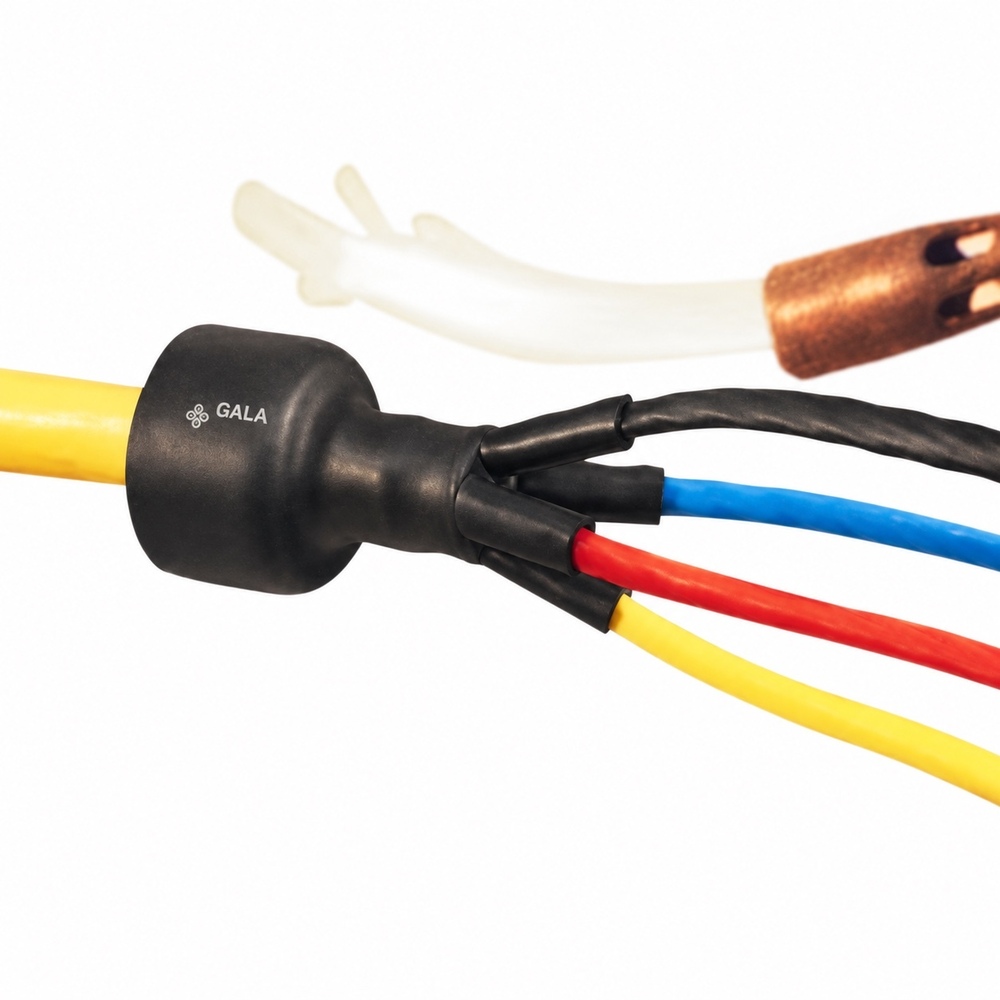

The breakout is a moulded cross-linked polyolefin boot with a body that fits over the cable sheath and one finger for each core. It is lined with hot-melt adhesive and supplied expanded. Slide it over the crutch with one core through each finger, then shrink it with a propane (preferred) or butane torch, starting at the centre of the body and working out towards the fingers. It recovers above 125 deg C. When fitted correctly the surface is smooth and adhesive shows at the ends of the body and fingers, giving a permanent moisture-proof seal at the crutch. Work only on de-energised circuits.

The range covers 2, 3, 4, 5, 6 and 7-core PVC, XLPE, rubber and PILC cables rated up to 1.1 kV, including five sizes with two different finger sizes for cables whose cores are not all the same size. Each code states supplied and recovered body and finger diameters, so the breakout is chosen from the sheath diameter and the core diameter of the cable. Custom dimensions can be made on request.

Breakouts are used in LV cable terminations and at cable entries into panels, motors and equipment. The material is cross-linked polyolefin with a guaranteed 12 N/mm2 tensile strength and a continuous temperature limit of -40 to +100 deg C. Gala is an ISO 9001, ISO 14001 and ISO 45001 certified manufacturer.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

  • Brand: Gala
  • Product type: Heat-shrinkable cable breakout (crutch seal) for multi-core LV cable
  • Material: Cross-linked polyolefin
  • Colour: Black
  • Voltage rating: Up to 1.1 kV
  • Operating temperature: -40 to +100 deg C (continuous)
  • Size range: 2, 3, 4, 5, 6 and 7 core; 71 sizes; body recovering to 8 to 175 mm, fingers to 2.5 to 55 mm
  • Adhesive / sealant: Hot-melt adhesive lining
  • Application: Sealing the crutch of multi-core PVC, XLPE, rubber and PILC LV cables
  • Installation: Propane or butane torch, from the centre of the body outwards
  • Country of origin: India
  • Shrink temperature: 125 deg C
  • Tensile strength: 12 N/mm2 min (ASTM D638)
  • Elongation: 350 % min (ASTM D638)
  • Water absorption: 0.2 % max (ASTM D570)
  • Dielectric strength: 12 kV/mm min (ASTM D149)

Sizes

  • All in mm, internal diameters supplied (min) / after free recovery (max). Full 71-size chart with lengths and walls in the datasheet.
  • Cores | Codes | Sizes | Body ID supplied / recovered | Finger ID supplied / recovered
  • 2 | LV2GBB-0308 S to LV2GBB-55175 A | 19 | 22-370 / 8-175 | 9-156 / 3-55
  • 3 | LV3GBB-0308 to LV3GBB-3060 | 15 | 32-200 / 8-60 | 12-70 / 2.8-30
  • 4 | LV4GBB-0209 to LV4GBB-1880 | 21 | 28-215 / 9-80 | 9-70 / 2.5-40
  • 5 | LV5GBB-0308 to LV5GBB-0832 A | 7 | 32-100 / 8-33 | 10-32 / 3-8
  • 6 | LV6GBB-0412, LV6GBB-0737 | 2 | 44-85 / 12-37 | 13-25 / 4-7
  • 7 | LV7GBB-0737, LV7GBB-1845 | 2 | 95-118 / 37-46 | 26-35 / 7-19
  • Two finger sizes (body / larger fingers / smaller fingers, supplied / recovered):
  • LV2GBB-61820 (2 core) | 65/20 | 44/18 | 25/6
  • LV4GBB-1880(2X2) (4 core) | 215/80 | 75/18 | 45/18
  • LV5GBB-5725 (5 core) | 65/25 | 23/7 | 16/5
  • LV5GBB-7939 (5 core) | 90/39 | 30/9 | 24/7
  • LV5GBB-7939 A (5 core) | 100/39 | 35/9 | 16/7

Applications: LV cable terminations, LV cable jointing, motor and equipment cable entries, control panels and distribution boards, industrial plants, building services, power distribution utilities, solar and wind plant LV cabling
