Heat Shrink Transition Boot for Cable Harness - Y / T / 2 3 4 Way

About Heat Shrink Transition Boot for Cable Harness - Y / T / 2 3 4 Way

Where a cable harness splits into branches, taped or tubed joints tend to crack, leak and look different every time. Gala's moulded transition boots give each branch point a fixed shape with mechanical protection, strain relief and sealing against dust and moisture.

Each transition is supplied expanded and shrinks with heat onto the main bundle and each branch. Shapes cover the common layouts: Y-type and T-type for two branches, Q-type with a side branch (including a 30-degree bifurcated version), 2-way boots for two parallel branches, E-type and 3-way boots for three branches and 4-way boots for four. The inner wall can be pre-coated with adhesive for sealing and waterproofing.

Boots are offered in three material grades: -10 semi-rigid fluid-resistant modified elastomer (-75 to 150 deg C, installs at 175 deg C), -20 semi-rigid flame-retardant polyolefin (-55 to 135 deg C, installs at 150 deg C) and -30 semi-flexible polyolefin (-42 to 105 deg C, installs at 150 deg C), with three adhesive options: -11 general-purpose hot melt, -22 high-performance hot melt and -33 epoxy.

Typical users are harness makers for defence, railway and public transport, commercial vehicles and industrial equipment. Sizes are chosen from the bundle diameter at the body end and at each branch, using the supplied and recovered diameters in the charts.

Supplied by Gala, India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Moulded heat-shrink transition / branch boot for cable harnesses
• Material: Three grades - modified elastomer (-10), flame-retardant polyolefin (-20), semi-flexible polyolefin (-30)
• Colour: Black
• Operating temperature: -75 to 150 deg C (grade -10), -55 to 135 deg C (grade -20), -42 to 105 deg C (grade -30)
• Size range: 41 sizes; recovered diameters from 3.3 mm (smallest branch) to 54.6 mm (largest body end)
• Adhesive / sealant: Optional: -11 hot melt (-20 to 60 deg C), -22 hot melt (-55 to 105 deg C), -33 epoxy (-75 to 150 deg C)
• Application: Sealing and strain relief at harness branch points
• Installation: Heat-shrink with hot-air tool at the grade's installation temperature
• Country of origin: India
• Shrink temperature: 175 deg C (grade -10), 150 deg C (grades -20 and -30)
• Number of branches: 2, 3 or 4 by shape

Sizes

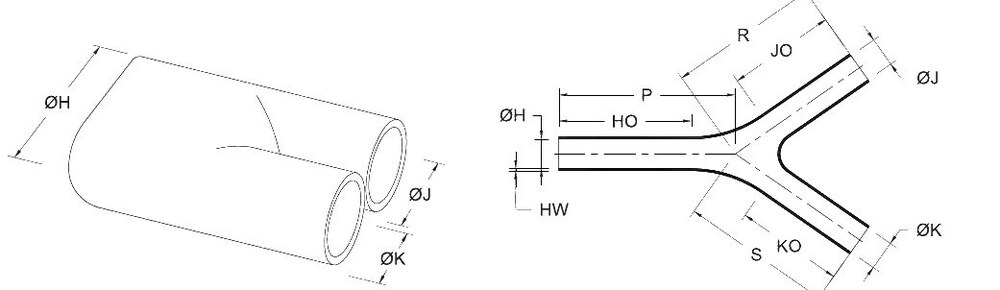

• All in mm, supplied (min) / after free recovery (max). Lengths, angles and walls per size are in the datasheet.
• Family | Codes | Sizes | Body end H | Branches
• Q-type GHQB | GHQB-0407 to GHQB-0714 | 3 | 13-27 / 7-14 | run end 13-27 / 7-14; side branch 7-13 / 3.5-7
• Q-type 30 deg GHQB1 | GHQB1-1015, -0918, -0519 | 3 | 30.4-35.6 / 15-18.8 | run end as body; side branch 10.2-20.3 / 5.3-10
• T-type GHTB | GHTB-0004 to GHTB-0030 | 5 | 6.6-55.6 / 3.6-30.2 (both run ends) | stem 13.2-111.2 / 3.6-30.2
• T-type GHTB1 | GHTB1-0007 to GHTB1-0033 | 4 | 19.8-83.3 / 6.6-33.2 | two branches 13.2-54.8 / 6.6-33.2
• Y-type GHYB | GHYB-0007 to GHYB-0033 | 4 | 19.8-83.3 / 6.6-33.2 | two branches 13.2-54.8 / 6.6-33.2
• 2-way GH2B | GH2B-0306 to GH2B-1326 | 4 | 13.2-55.6 / 6.1-25.9 | two branches 6.6-26.9 / 3.3-12.7
• E-type GHEB | GHEB-0007 to GHEB-0033 | 4 | 19.8-99.8 / 6.6-33.2 | three branches 13.2-54.8 / 6.6-33.2
• 3-way GH3B | GH3B-0407 to GH3B-2754 | 6 | 13.2-91.4 / 6.6-54.6 | three branches 6.6-45.7 / 3.6-27.4
• 4-way GH4B | GH4B-0307 to GH4B-1327 | 8 | 13.2-55.6 / 6.9-26.7 | four branches 6.6-26.9 / 3.5-13.0

Applications: Defence and military harnesses, railway and metro rolling stock, public transport vehicles, commercial and special vehicles, industrial equipment, cable harness manufacturing
