Heavy Wall Heat Shrink Tube for Cable Joints (GHW)

About Heavy Wall Heat Shrink Tube for Cable Joints (GHW)

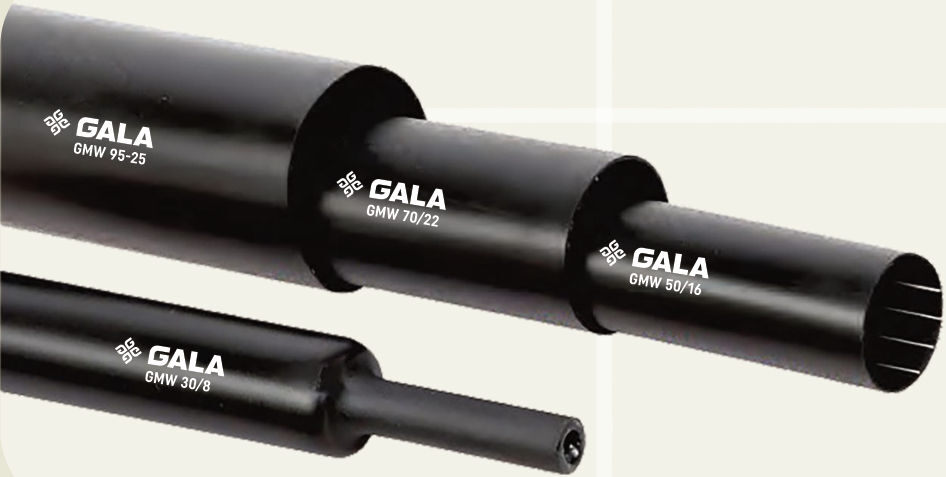

GHW is the heavy-wall member of Gala's INSULTUBE tubing range. It is a cross-linked polyolefin tube supplied expanded, which shrinks at about 125 deg C into a thick, tough outer layer. The compound carries carbon black for protection against sunlight.

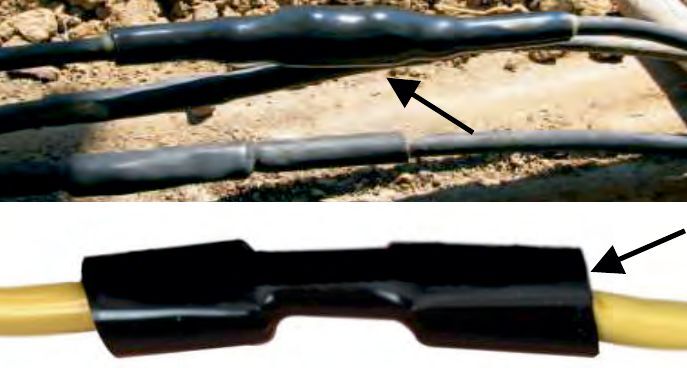

The thicker wall is what sets it apart from medium-wall tube. On underground straight-through cable joints it is used as the final outer sleeve: it rebuilds the cable's protective jacket over the joint, resists the knocks, stones and abrasion of backfilling, and with the optional hot-melt adhesive lining it seals the joint ends against water. It is used on joints for systems up to 33 kV (36 kV equipment), as part of the joint build-up rather than as the primary insulation. The same tube suits any job that needs a heavy protective cover over cables, pipes or connections.

Sizes run from GHW 12/3 to GHW 425/120. Pick a size whose first figure (supplied inside diameter) passes over the widest part of the joint and whose second figure (recovered inside diameter) is smaller than the cable sheath it must grip. Order as code, size and length in mm, for example GHW 50/16 1000; cut lengths are available up to 1200 mm on most sizes.

Installation: park the tube on the cable before jointing, then centre it over the finished joint and shrink it with a propane torch from the middle outwards. On adhesive-lined tube, adhesive showing at both ends confirms a complete seal.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Heavy wall heat shrink tube
• Material: Cross-linked polyolefin, carbon black UV protected
• Colour: Black (other colours on request)
• Voltage rating: Outer protective sleeve for cable joints on systems up to 33 kV (36 kV equipment)
• Operating temperature: -40 deg C to +110 deg C continuous

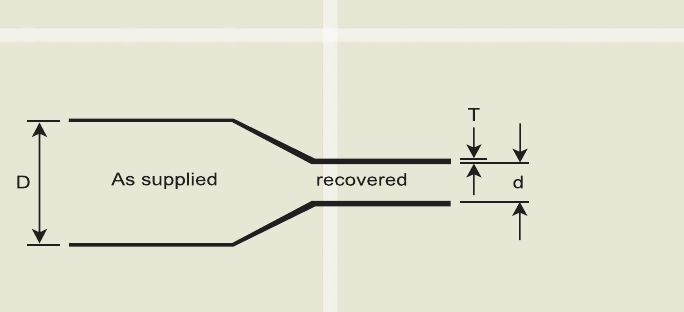

• Shrink ratio: About 3:1 to 4:1 depending on size (supplied ID / recovered ID)
• Size range: 12 mm to 425 mm supplied ID; 3 mm to 120 mm recovered ID
• Wall type / thickness: Heavy wall, 2.4 mm to 4.5 mm after recovery (+/-10%)
• Adhesive / sealant: Optional hot-melt adhesive lining
• Standards tested to: Test methods quoted on Gala's datasheet - ASTM D638, ASTM D2671, ASTM D149, ASTM D257
• Application: Outer mechanical protection and sealing of underground straight-through cable joints; heavy-duty protection of cables and pipes
• Installation: Propane torch, shrink from the centre outwards
• Country of origin: India
• Shrink temperature: 125 deg C
• Tensile strength: 12 N/mm2 min (ASTM D638)
• Elongation at break: 350% min
• Dielectric strength: 12 kV/mm min on 2 mm wall (ASTM D149)
• Volume resistivity: 1 x 10¹² ohm.cm min (ASTM D257)
• Water absorption: 0.5% max
• Maximum cut length: 1200 mm up to 250/70; 1000 mm for 320/90; 500 mm for 375/110 and above
• Ordering format: code + size + length in mm, e.g. GHW 50/16 1000

Sizes

• GHW 12/3 | D 12 / d 3 | T 2.4 mm
• GHW 19/6 | D 19 / d 6 | T 2.5 mm
• GHW 22/6 | D 22 / d 6 | T 2.7 mm
• GHW 25/8 | D 25 / d 8 | T 2.8 mm
• GHW 30/8 | D 30 / d 8 | T 3.0 mm
• GHW 33/10 | D 33 / d 10 | T 3.0 mm
• GHW 40/12 | D 40 / d 12 | T 4.0 mm
• GHW 50/16 | D 50 / d 16 | T 4.0 mm
• GHW 65/19 | D 65 / d 19 | T 4.0 mm
• GHW 70/22 | D 70 / d 22 | T 4.0 mm
• GHW 75/22 | D 75 / d 22 | T 4.0 mm
• GHW 95/25 | D 95 / d 25 | T 4.0 mm
• GHW 105/30 | D 105 / d 30 | T 4.0 mm
• GHW 115/34 | D 115 / d 34 | T 4.0 mm
• GHW 130/36 | D 130 / d 36 | T 4.0 mm
• GHW 140/42 | D 140 / d 42 | T 4.2 mm
• GHW 160/50 | D 160 / d 50 | T 4.3 mm
• GHW 180/55 | D 180 / d 55 | T 4.3 mm
• GHW 200/60 | D 200 / d 60 | T 4.3 mm
• GHW 250/70 | D 250 / d 70 | T 4.3 mm
• GHW 320/90 | D 320 / d 90 | T 4.5 mm
• GHW 375/110 | D 375 / d 110 | T 4.5 mm
• GHW 425/120 | D 425 / d 120 | T 4.5 mm

Applications: Electricity distribution utilities, underground cable jointing contractors, cable joint kit makers, cable manufacturers, railways, oil and gas pipelines, offshore and marine, industrial plant maintenance
