Thin Wall Heat Shrink Tube 2:1 Flame Retardant (GSC / GSC-YG)

About Thin Wall Heat Shrink Tube 2:1 Flame Retardant (GSC / GSC-YG)

GSC is Gala's general-purpose thin-wall heat-shrink tube. It is a flexible cross-linked polyolefin tube with a 2:1 shrink ratio: heated, it recovers to half its supplied diameter and grips wires, terminals and components tightly. The material is flame retardant and self-extinguishing, and GSC is listed by UL as a Recognized Component under file E328193 (600 V, 125 deg C, VW-1 flame rating).

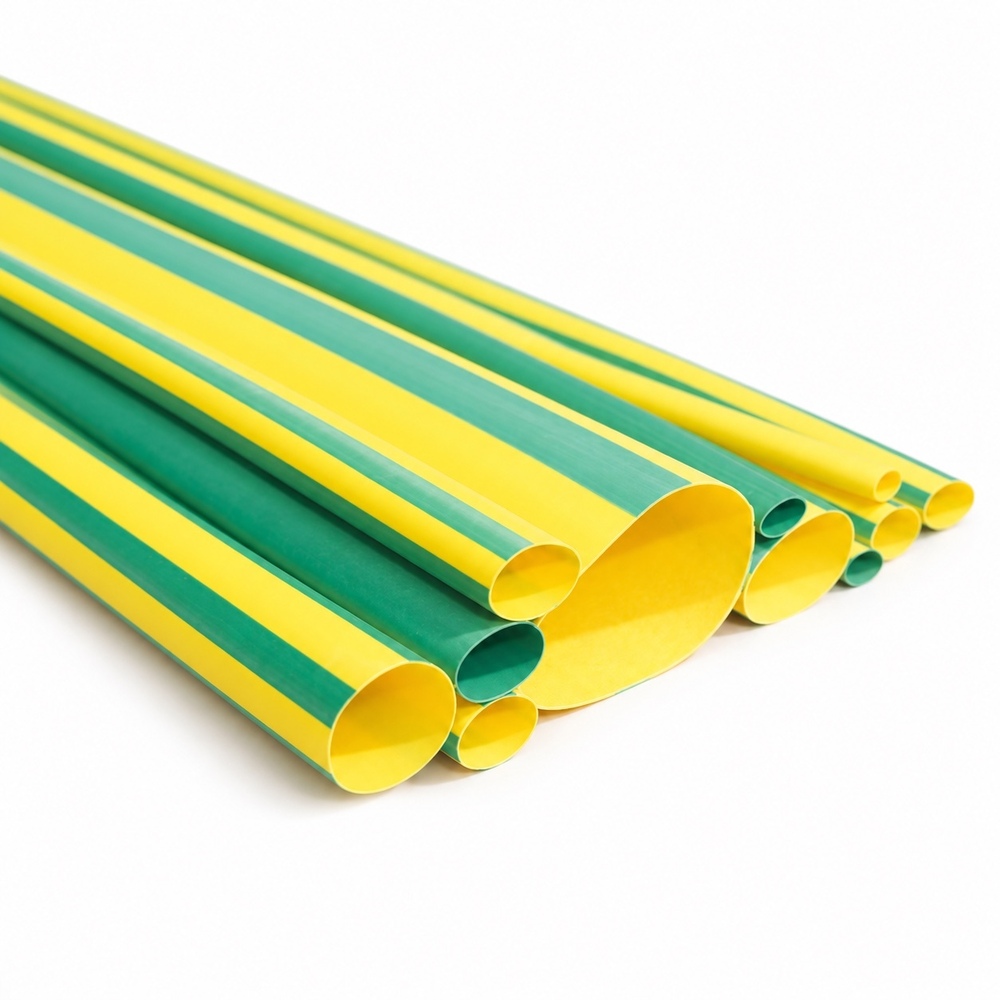

It is used for light-duty wire harnessing in electrical and electronic equipment, insulating and protecting in-line components, strain relief at wire connections, busbar insulation in switchgear, and colour coding of wires, cables, terminals and components. The GSC/YG version carries yellow and green stripes for identifying earth (ground) leads.

Twenty-four sizes run from GSC 1.0/0.5 to GSC 100/50.0; the code gives supplied and recovered inside diameter in mm. Standard colours are black, white, yellow, red, blue, green and yellow/green. Tube is supplied on spools (400 m for the smallest sizes, down to 25 m for the largest) or in boxes of 1.2 m cut lengths.

To choose a size, the supplied diameter must pass over the largest part of the job and the recovered diameter must be smaller than the smallest part. Shrink with a hot-air tool or torch.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Thin wall flame-retardant heat shrink tube, 2:1
• Material: Flexible cross-linked polyolefin
• Colour: Black, white, yellow, red, blue, green, yellow/green striped (GSC/YG)
• Voltage rating: Up to 3.3 kV (GSF rating); UL recognised at 600 V
• Operating temperature: -55 deg C to +125 deg C
• Shrink ratio: 2:1
• Size range: 1.0 mm to 100 mm supplied ID; 0.5 mm to 50 mm recovered ID
• Wall type / thickness: Thin wall, 0.28 mm to 1.27 mm after recovery
• Standards tested to: UL Recognized Component, file E328193 (UL 224 basis, VW-1); other test methods quoted on GSF's datasheet - ASTM D638, ASTM D570, ASTM D2671, ASTM D150, ASTM D257
• Application: Wire harnessing, component insulation, strain relief, busbar insulation, colour coding and earth-lead identification
• Installation: Hot-air tool or torch
• Country of origin: India
• Flammability: VW-1 flame rated (UL recognition)
• Tensile strength: 9 N/mm2 min (ASTM D638)
• Elongation at break: 300% min
• Water absorption: 0.15% max
• Dielectric strength: 20 kV/mm min
• Dielectric constant: 3.0 max
• Volume resistivity: 1 x 1013 ohm.cm min
• Low temperature flexibility: -55 deg C for 4 h, no cracking
• Packing: Spools 400 m to 25 m by size, or 1.2 m cut lengths boxed (600 to 5 per box)

Sizes

• GSC 1.0/0.5 | wall 0.28 | 400 m | 600 per box
• GSC 1.5/0.75 | wall 0.32 | 400 m | 600
• GSC 2.0/1.0 | wall 0.35 | 400 m | 600
• GSC 2.5/1.2 | wall 0.44 | 400 m | 600
• GSC 3.0/1.5 | wall 0.44 | 400 m | 500
• GSC 4.0/2.0 | wall 0.44 | 400 m | 250
• GSC 5.0/2.5 | wall 0.56 | 200 m | 250
• GSC 6.0/3.0 | wall 0.56 | 200 m | 200
• GSC 7.0/3.5 | wall 0.56 | 100 m | 200
• GSC 8.0/4.0 | wall 0.56 | 100 m | 175
• GSC 10.0/5.0 | wall 0.56 | 100 m | 150
• GSC 12.7/6.35 | wall 0.56 | 100 m | 120
• GSC 14.0/7.0 | wall 0.69 | 100 m | 100
• GSC 16.0/8.0 | wall 0.69 | 100 m | 100
• GSC 18.0/9.0 | wall 0.69 | 100 m | 80
• GSC 20.0/10.0 | wall 0.78 | 100 m | 65
• GSC 25.0/12.5 | wall 0.78 | 50 m | 40
• GSC 30.0/15.0 | wall 0.87 | 50 m | 30
• GSC 40.0/20.0 | wall 0.97 | 50 m | 20
• GSC 50.0/25.0 | wall 0.97 | 25 m | 15
• GSC 60.0/30.0 | wall 0.96 | 25 m | 10
• GSC 70.0/35.0 | wall 1.10 | 25 m | 10
• GSC 80.0/40.0 | wall 1.27 | 25 m | 10
• GSC 100/50.0 | wall 1.17 | 25 m | 5

Applications: Wire harness makers, electrical and electronic equipment, switchgear and panel builders, automotive wiring, white goods, aviation wiring, heater leads, electrical contractors and maintenance
