Polyolefin Overhead Line Tube for Conductors (GOT-M / GOT-H)

About Polyolefin Overhead Line Tube for Conductors (GOT-M / GOT-H)

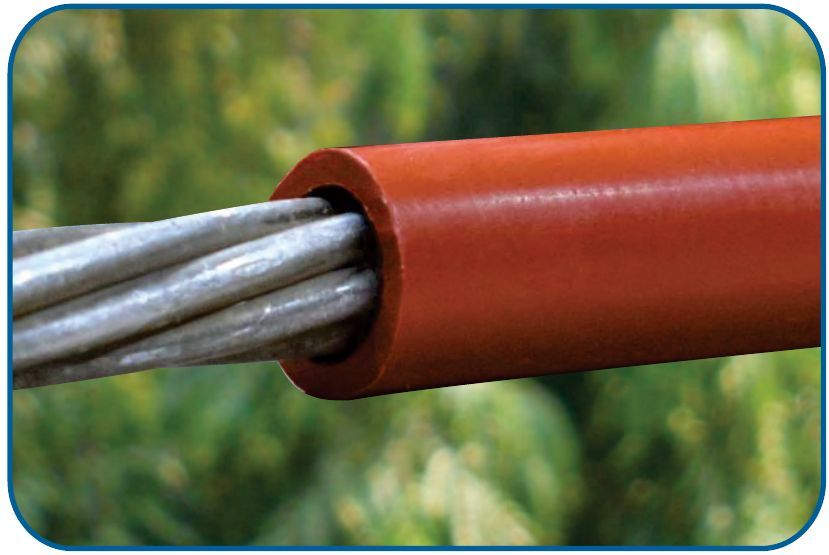

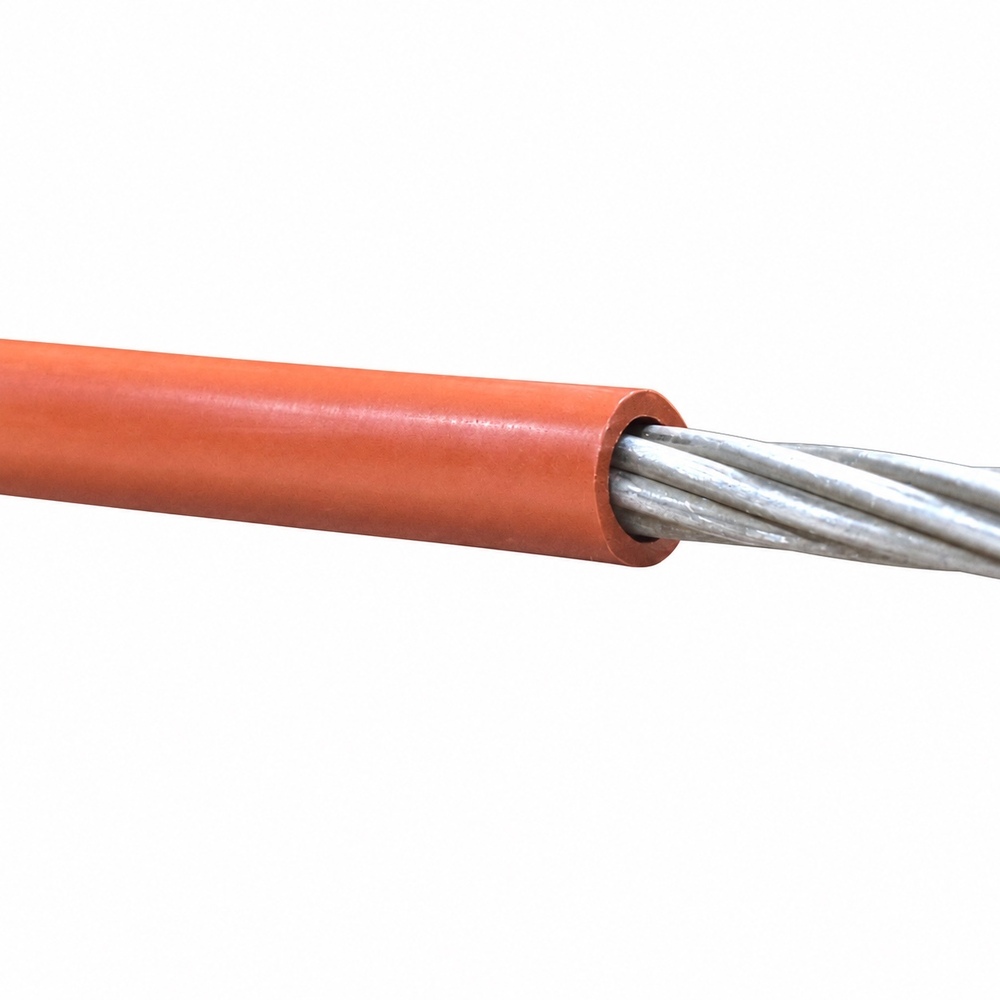

Gala's overhead line tube is a non-tracking polyolefin tube that sleeves a bare overhead conductor, jumper or dropper and gives it a layer of insulation. Distribution lines fail when tree branches, birds, squirrels and other wildlife bridge the gap between phases or between a phase and earth; an insulated conductor does not flash over when that happens, which cuts outages and protects the animals as well.

The tube is made in two wall grades. GOT-M has a 1.0 mm wall and is catalogued for systems up to 11 kV; GOT-H has a 2.5 mm wall and is catalogued for systems up to 33 kV. Both come with a minimum internal diameter of 18, 25 or 35 mm, the wall held to within 10 %, and both are supplied in 50 m rolls. The material is UV stabilised and weather resistant, resists tracking and erosion, protects the conductor from acid, alkali and salt, and works continuously from -40 deg C to +105 deg C.

Utilities and line contractors use it on distribution lines, substation jumpers and droppers, and spans near trees or through wildlife areas. Gala advises the right size and installation method for the conductor at enquiry.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Overhead line insulation tube
• Material: Non-tracking polyolefin
• Colour: Red
• Voltage rating: GOT-M up to 11 kV; GOT-H up to 33 kV
• Operating temperature: -40 deg C to +105 deg C continuous
• Size range: Internal diameter 18, 25 and 35 mm (minimum)
• Wall type / thickness: 1.0 mm (GOT-M), 2.5 mm (GOT-H), tolerance +/-10 %
• Application: Insulating overhead conductors, jumpers and droppers against tree and wildlife contact
• Country of origin: India
• Packing: 50 m per roll
• Test methods on GSF datasheet: ASTM D638, ASTM D792, ASTM D2240, ASTM D570, ASTM D2671, ASTM D149, ASTM D257, ASTM D150

Sizes

• GOT-M 18 | ID 18.0 mm min | wall 1.0 mm | 50 m roll | up to 11 kV
• GOT-M 25 | ID 25.0 mm min | wall 1.0 mm | 50 m roll | up to 11 kV
• GOT-M 35 | ID 35.0 mm min | wall 1.0 mm | 50 m roll | up to 11 kV
• GOT-H 18 | ID 18.0 mm min | wall 2.5 mm | 50 m roll | up to 33 kV
• GOT-H 25 | ID 25.0 mm min | wall 2.5 mm | 50 m roll | up to 33 kV
• GOT-H 35 | ID 35.0 mm min | wall 2.5 mm | 50 m roll | up to 33 kV

Applications: Electricity distribution utilities, overhead distribution lines, substation jumpers and droppers, lines near trees and wildlife areas, power line contractors and EPC companies
