Vented Thin Wall Heat Shrink Tube for Anchor Bolts (GLC-SV)

About Vented Thin Wall Heat Shrink Tube for Anchor Bolts (GLC-SV)

When an ordinary heat-shrink tube is shrunk over a long bolt or a bend, air gets trapped under it and leaves bubbles and wrinkles. Gala's Vented Thin Wall Tube (GLC-SV) solves that with fine longitudinal grooves moulded into its inner wall. As the tube shrinks, trapped air escapes along the grooves, so the tube lies flat and wrinkle-free over the full length, without grease or any other lubricant.

The tube is a flexible cross-linked polyolefin with a 2:1 shrink ratio, black as standard. GSF states good resistance to chemicals and copper corrosion and good abrasion resistance.

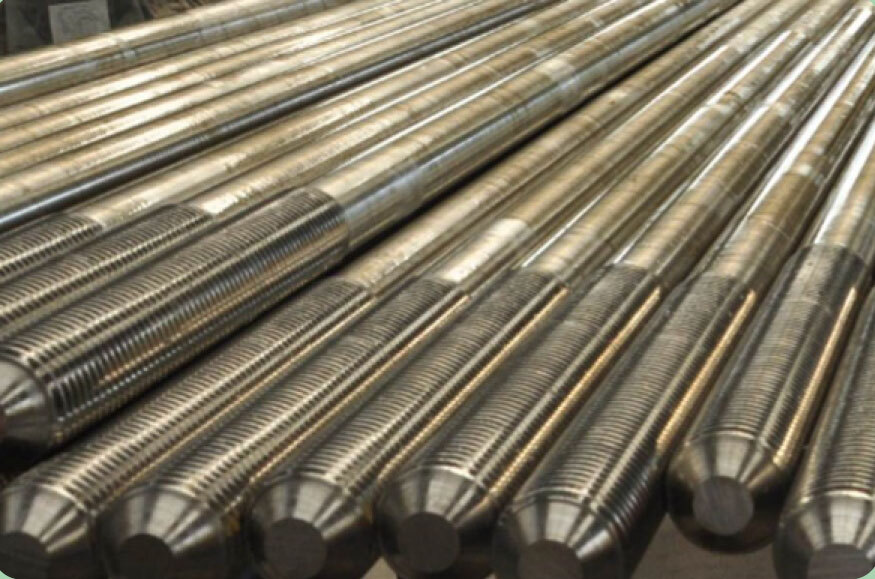

Its main job is corrosion protection of fasteners: anchor bolts in wind-turbine foundations, U-bolts on pipe supports, and automotive parts. Shrunk over the bolt, the tube keeps moisture away from the steel.

Eight sizes run from GLC-SV 20/10 to GLC-SV 70/35, with recovered walls of 0.78 to 1.10 mm. The first figure is the supplied inside diameter and the second the recovered inside diameter, both in mm. Tube is supplied on 100 m, 50 m or 25 m spools, or as 1.2 m cut lengths packed 10 to 65 per box.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Vented (internally grooved) thin wall heat shrink tube
• Material: Flexible cross-linked polyolefin
• Colour: Black
• Operating temperature: -40 deg C to +125 deg C (Jan 2024 sheet)
• Shrink ratio: 2:1
• Size range: 20 mm to 70 mm supplied ID; 10 mm to 35 mm recovered ID
• Wall type / thickness: Thin wall, 0.78 mm to 1.10 mm after recovery
• Standards tested to: Test methods quoted on GSF's datasheet - ASTM D638, ASTM D570, ASTM D2671, ASTM D150, ASTM D257
• Application: Corrosion protection of wind-turbine anchor bolts, U-bolts, threaded fasteners and automotive parts

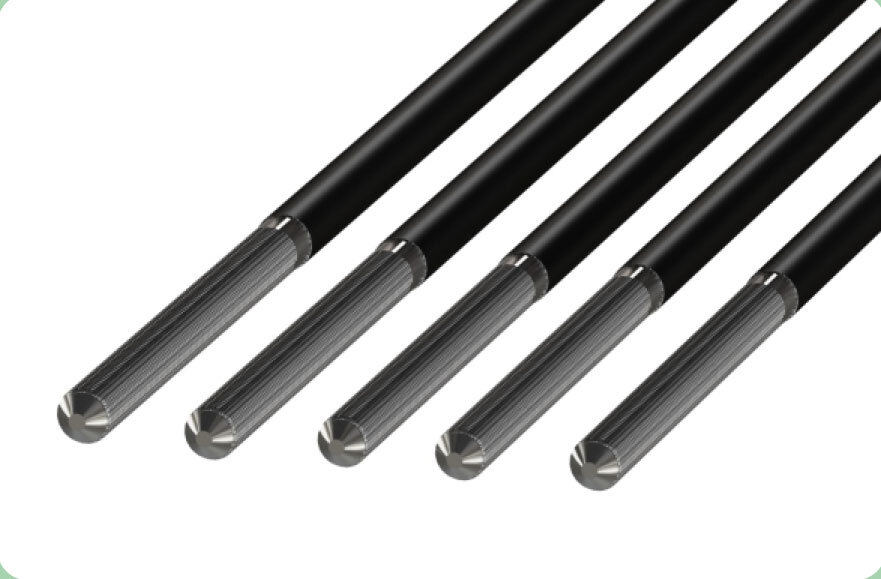

• Installation: Slide over the bolt and heat-shrink; vents release trapped air, no lubricant needed
• Country of origin: India
• Tensile strength: 10 N/mm2 min (ASTM D638)
• Elongation at break: 300% min
• Water absorption: 0.15% max
• Dielectric strength: 15 kV/mm min
• Dielectric constant: 3.0 max
• Volume resistivity: 1 x 1014 ohm.cm min
• Heat shock: 250 deg C for 4 h, no dripping, cracking or flowing
• Packing: Spools of 100 m, 50 m or 25 m, or 1.2 m cut lengths (10 to 65 per box)

Sizes

• GLC-SV 20/10 | 20.0 / 10.0 | wall 0.78 | 100 m | 65 per box
• GLC-SV 25/12.5 | 25.0 / 12.5 | wall 0.78 | 50 m | 40
• GLC-SV 30/15 | 30.0 / 15.0 | wall 0.87 | 50 m | 30
• GLC-SV 40/20 | 40.0 / 20.0 | wall 0.97 | 50 m | 20
• GLC-SV 45/25 | 45.0 / 25.0 | wall 0.97 | 50 m | 20
• GLC-SV 50/25 | 50.0 / 25.0 | wall 0.97 | 25 m | 15
• GLC-SV 60/30 | 60.0 / 30.0 | wall 0.96 | 25 m | 10
• GLC-SV 70/35 | 70.0 / 35.0 | wall 1.10 | 25 m | 10

Applications: Wind energy (turbine foundation anchor bolts), oil and gas and process piping (U-bolts), automotive components
