1.1 kV LT Cable Straight Through Joint Kit - Heat Shrink (GXLT)

About 1.1 kV LT Cable Straight Through Joint Kit - Heat Shrink (GXLT)

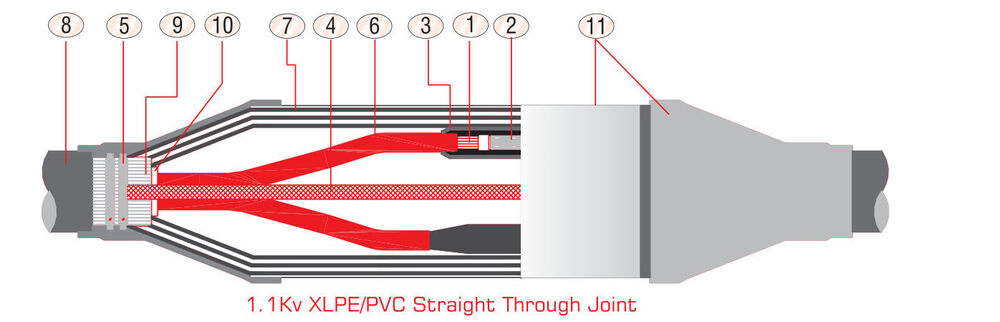

The Gala GXLT/GPLT kit joins two lengths of low voltage power cable end to end, for repairs, extensions and new cable runs. It is a waterproof heat shrinkable design: each core connection is made with an inline connector (ferrule) and covered with a heat shrinkable insulation sleeve, armour continuity is restored with a bonding connection and worm drive clamps, and the whole joint is closed with a wraparound joint case and heat shrinkable outer jacketing sleeves. A galvanised mesh can replace the wraparound joint case where preferred.

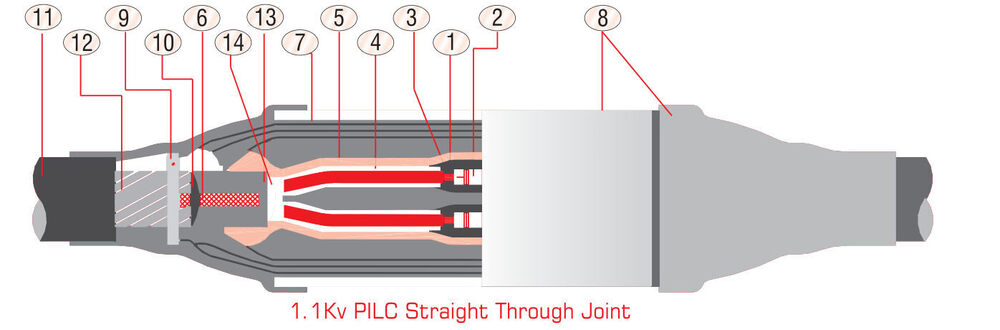

There are two builds. GXLT is for XLPE or PVC insulated cable. GPLT is for paper-insulated lead-covered (PILC) cable and adds oil barrier tubing, inner protective tubing, a lead-sheath continuity system and a plumbed earth connection.

Kits are chosen by cable size, from 4 x 1.5-6 sq mm to 4 x 300-400 sq mm, with separate codes for 1.1 kV and 3.3 kV systems. Every kit holds full contents for one joint, and installation follows Gala's illustrated instruction sheet: prepare both cable ends, crimp the connectors, then shrink each layer in turn with a gas torch.

Gala holds a POWERGRID manufacturer approval and a MECON vendor registration for cable jointing and termination kits up to 33 kV, and an EIL enlistment for kits up to 11 kV.

Used by electrical contractors, utilities' contractors, EPC firms and maintenance teams on underground LT distribution, industrial plants, buildings and street-lighting circuits.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Heat shrinkable LV (LT) straight through joint kit
• Material: Heat shrinkable irradiation cross-linked polyolefin sleeves and jacketing, with metallic joint case or galvanised mesh
• Voltage rating: 1.1 kV (GXLT-1 to GXLT-6) and 3.3 kV (GXLT-11 to GXLT-16)
• Size range: 4 x 1.5-6 sq mm to 4 x 300-400 sq mm
• Application: Straight through jointing of XLPE/PVC (GXLT) and paper-insulated lead-covered (GPLT) LV power cable, armoured or unarmoured
• Installation: Crimp connectors, then heat shrink with a gas torch; illustrated instructions in every kit
• Country of origin: India
• Kit contents (XLPE/PVC joint): Inline connectors (ferrules), insulation sleeves, armour continuity connection, worm drive clamps, wraparound joint case (or galvanised mesh), outer jacketing sleeves, installation instructions
• Kit contents (PILC joint, additional): Oil barrier tubing, inner protective tubing, armour/lead-sheath continuity system, plumbed earth connection
• Approvals: POWERGRID manufacturer approval, cable jointing and termination kits up to 33 kV (valid to Feb 2028); MECON vendor registration, kits up to 33 kV (valid to May 2028); EIL enlistment, kits up to 11 kV (to Jun 2028)
• Unit of sale: Per kit (one joint)

Sizes

• Cable size (sq mm) | 1.1 kV kit code | 3.3 kV kit code
• 4 x 1.5-6 | GXLT-1 | GXLT-11
• 4 x 10-16 | GXLT-2 | GXLT-12
• 4 x 25-50 | GXLT-3 | GXLT-13
• 4 x 70-150 | GXLT-4 | GXLT-14
• 4 x 185-240 | GXLT-5 | GXLT-15
• 4 x 300-400 | GXLT-6 | GXLT-16

Applications: Underground LT distribution, cable repair and extension, industrial plants, commercial buildings, street lighting, infrastructure and EPC projects, utility maintenance
