Transition Joint Kit PILC to XLPE Cable 11 kV to 33 kV - Heat Shrink

About Transition Joint Kit PILC to XLPE Cable 11 kV to 33 kV - Heat Shrink

When a paper insulated lead covered (PILC) cable run is extended, repaired or partly replaced with XLPE cable, the two constructions have to be joined. The Gala GTJ transition joint does this in one kit: it seals the paper cores against oil migration, matches the different screens, and restores insulation, screen, earth and armour continuity across the joint.

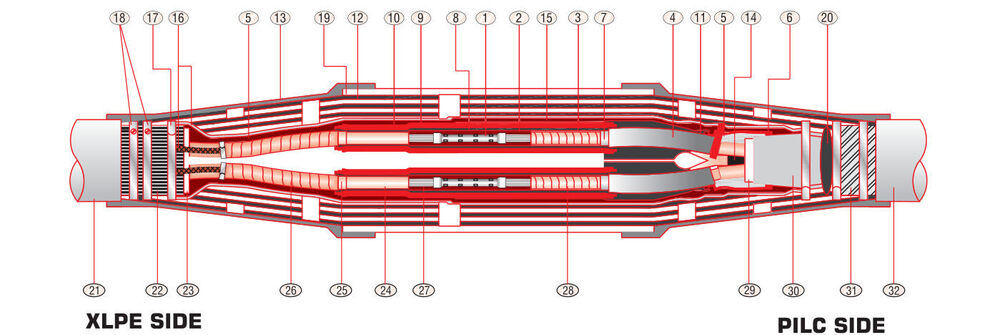

On the PILC side, heat shrinkable oil barrier sleeves seal each paper core and a conducting breakout and high-permittivity void filler handle the crutch; the lead sheath and armour are bonded with plumbing metal and earth braid. On the XLPE side, stress relief mastic and stress control tubing grade the field at the screen cut. Barrier-type inline connectors join the conductors. Over the cores go heat shrinkable insulation tubing, screened dual wall tubing and compression tubing, with tinned copper mesh tape for the screens. A metallic protection case or wraparound joint case (or GI mesh tape), adhesive-lined side sleeves and a centre outer jacketing tube close the joint. Installation aids and instructions are included.

GTJ/1112 covers systems up to 12 kV in six sizes from 3 x 16-35 sq mm to 3 x 630 sq mm. GTJ/2436 covers the 15-24 kV class (8.7/15, 11/11, 12.7/22 kV) and the 36 kV class (19/33 kV).

Gala holds a POWERGRID manufacturer approval and a MECON vendor registration for cable jointing and termination kits up to 33 kV, and an EIL enlistment for kits up to 11 kV.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Heat shrinkable transition joint kit, 3-core PILC to 3-core XLPE cable
• Material: Heat shrinkable irradiation cross-linked polyolefin tubing and sleeves, oil barrier sleeves, mastics, tinned copper mesh and metallic joint case
• Voltage rating: Up to 12 kV (GTJ/1112); 15-24 kV class and 36 kV class, 19/33 kV (GTJ/2436)
• Size range: 3 x 16-35 sq mm to 3 x 630 sq mm (by series; see size table)
• Adhesive / sealant: Adhesive-lined side sleeves; stress relief mastic, high-permittivity void filler and mastic sealing tape included
• Application: Jointing 3-core PILC cable to 3-core XLPE cable
• Installation: Connect with barrier-type connectors, plumb the PILC earth, then heat shrink with a gas torch; instructions in every kit
• Country of origin: India

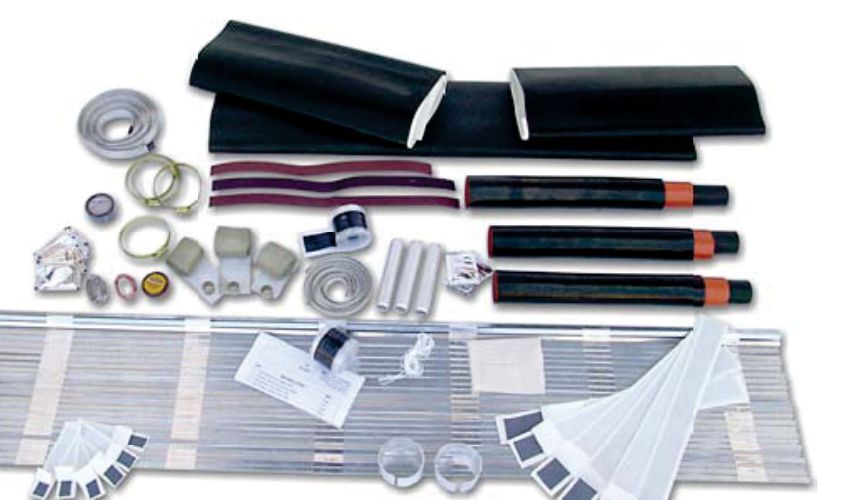

• Kit contents (GTJ/1112): Inline connector, barrier type (3), stress relief mastic (6), oil barrier sleeve (3), conducting tubing (3), high-permittivity void filler (1), conducting breakout (1), stress relief mastic for XLPE screen cut (6), stress control tubing (3), insulation tubing (3), screened dual wall tubing (3), compression tubing (3), metallic protection case or wraparound joint case or GI mesh tape (1), adhesive-lined side sleeve (2), EPDM insulating wedge (1), tinned copper mesh tape (3), tinned copper earth braid (1), constant force spring clamp or solder and flux (1 set), jubilee clamps (6), outer jacketing tube, centre (1), plumbing metal (1 set), plus nylon string, emery tape, mopping cloth, silicone grease, cleaning tissue, mastic sealing tape, copper binding wire, instruction manual
• Approvals: POWERGRID manufacturer approval, cable jointing and termination kits up to 33 kV (to Feb 2028); MECON vendor registration, kits up to 33 kV (to May 2028); EIL enlistment, kits up to 11 kV (to Jun 2028)
• Unit of sale: Per kit (one 3-core transition joint)

Sizes

• Series | Cable size (sq mm) | Kit code
• Up to 12 kV (GTJ/1112) | 3 x 16-35 | GTJ-11
• Up to 12 kV (GTJ/1112) | 3 x 50-95 | GTJ-12
• Up to 12 kV (GTJ/1112) | 3 x 120-185 | GTJ-13
• Up to 12 kV (GTJ/1112) | 3 x 240-300 | GTJ-14
• Up to 12 kV (GTJ/1112) | 3 x 400-500 | GTJ-15
• Up to 12 kV (GTJ/1112) | 3 x 630 | GTJ-17
• 15-24 kV (GTJ/2436) | 25-50 | GTJ-21
• 15-24 kV (GTJ/2436) | 70-95 | GTJ-22
• 15-24 kV (GTJ/2436) | 120-150 | GTJ-23
• 15-24 kV (GTJ/2436) | 185-300 | GTJ-24
• 15-24 kV (GTJ/2436) | 400-500 | GTJ-25
• 36 kV class, 19/33 kV (GTJ/2436) | 35-70 | GTJ-31
• 36 kV class, 19/33 kV (GTJ/2436) | 95-150 | GTJ-32
• 36 kV class, 19/33 kV (GTJ/2436) | 185-300 | GTJ-33
• 36 kV class, 19/33 kV (GTJ/2436) | 400 | GTJ-34

Applications: Extension and repair of PILC cable networks with XLPE cable, network refurbishment, utility distribution, utilities' contractors
