33 kV Outdoor Termination Kit for 3 Core XLPE Cable - Heat Shrink

About 33 kV Outdoor Termination Kit for 3 Core XLPE Cable - Heat Shrink

The Gala GXO-31 to GXO-34 kits terminate 3-core XLPE or EPR insulated, shielded cable outdoors on 19/33 kV systems, the 36 kV equipment class. They are used where 33 kV cable meets an overhead line, an outdoor substation, a power transformer or outdoor switchgear.

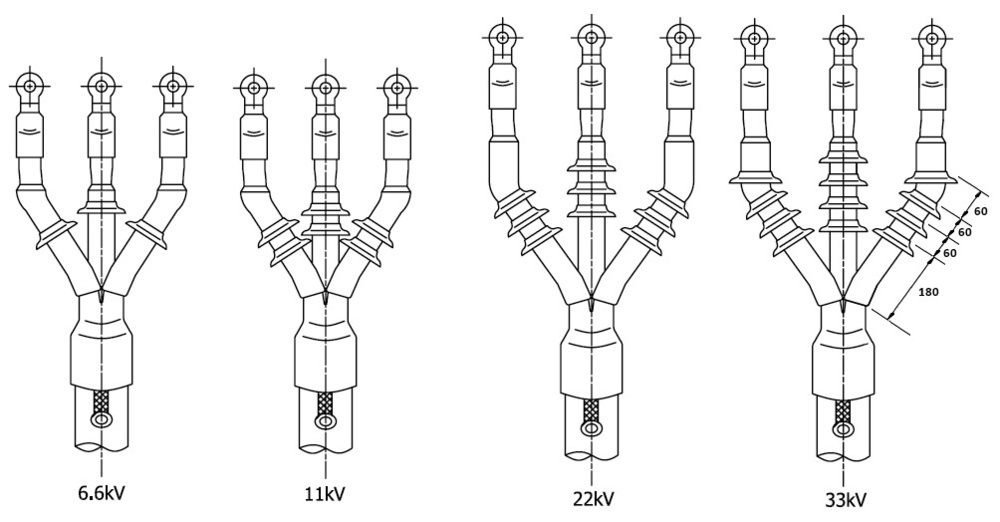

At 33 kV, controlling electric stress and surface tracking matters most. Each core gets a stress control tube and stress control mastic at the screen cut, a red non-tracking weather-resistant tube over the insulation, and four rain sheds to lengthen the creepage path (twelve per kit). A non-tracking breakout seals the crutch, terminal sleeves and lug sealing tape seal the lugs, and armour and screen earthing sets, terminal lugs, mastics and installation aids complete the kit.

Four kit codes cover cable sizes from 25-50 sq mm to 240-400 sq mm. Indoor kits for the same cables are GXE-31 to GXE-34.

Gala holds a POWERGRID manufacturer approval and a MECON vendor registration for cable jointing and termination kits up to 33 kV.

Installation is with a gas torch, following the illustrated instructions supplied in every kit. Typical buyers are EPC contractors, utilities' contractors, industrial plants and substation builders working at 33 kV.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Heat shrinkable outdoor termination kit, 3-core cable
• Material: Heat shrinkable irradiation cross-linked polyolefin tubing, breakout and rain sheds, with stress control and sealing mastics
• Colour: Red non-tracking tubing and rain sheds; black stress control tubing
• Voltage rating: 19/33 kV system (36 kV equipment class)
• Size range: 3 x 25-50 sq mm to 3 x 240-400 sq mm
• Adhesive / sealant: Mastic sealing tape, lug sealing tape and stress control mastic included
• Application: Outdoor termination of 3-core XLPE/EPR insulated, shielded cable, armoured or unarmoured
• Installation: Heat shrink with a gas torch; illustrated instructions in every kit
• Country of origin: India
• Cable type: 3-core XLPE or EPR insulated, copper tape or wire screened
• Rain sheds: 4 per core (12 per kit)

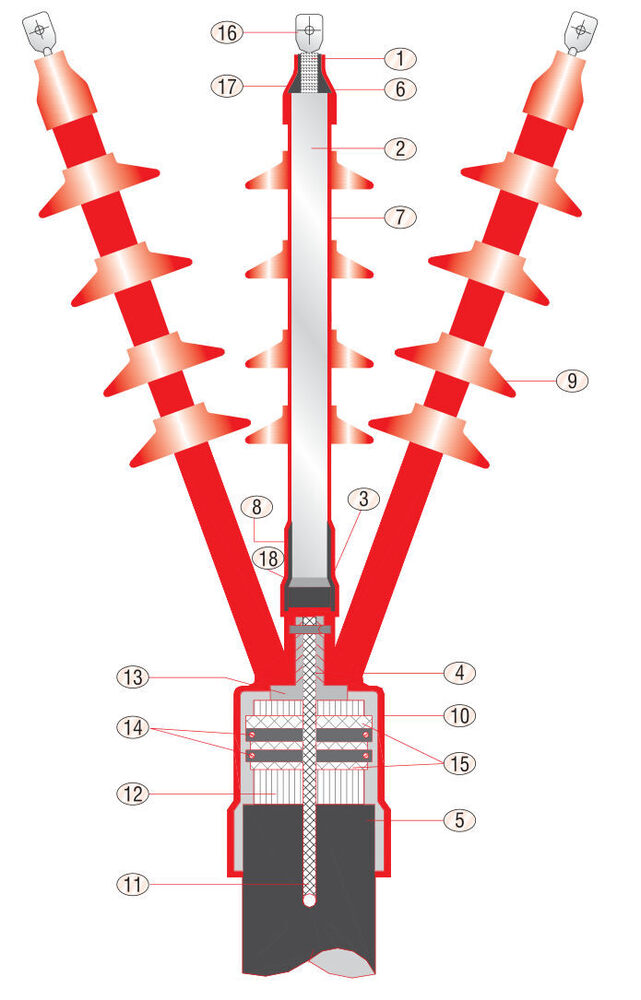

• Kit contents: Terminal lug (3), terminal sleeve (3), non-tracking weather-resistant tubing (3), stress control tubing (3), rain shed (12), non-tracking cable breakout (1), tinned copper earth braid (1), worm drive clip (2), mastic sealing tape (1 roll), lug sealing tape (3), stress control mastic (3), armour earthing set, screen earthing set, silicone grease, cleaning tissue, nylon string, emery tape, mopping cloth, installation instructions
• Approvals: POWERGRID manufacturer approval, cable jointing and termination kits up to 33 kV (to Feb 2028); MECON vendor registration, kits up to 33 kV (to May 2028)
• Unit of sale: Per kit (one 3-core termination)

Sizes

• Cable size (sq mm) | Outdoor kit code
• 3 x 25-50 | GXO-31
• 3 x 70-95 | GXO-32
• 3 x 120-185 | GXO-33
• 3 x 240-400 | GXO-34

Applications: 33 kV distribution and sub-transmission, overhead line to cable connections, outdoor substations, power transformer terminations, industrial plants, utilities and EPC contractors
