PILC Cable Straight Through Joint Kit 3 Core 11 kV to 33 kV

About PILC Cable Straight Through Joint Kit 3 Core 11 kV to 33 kV

Joining paper insulated lead covered (PILC) cable needs more than an XLPE joint: the impregnating compound has to be sealed in, and the lead sheath has to be bonded across the joint. Gala's GPS kits do both with heat shrinkable oil barrier sleeves on each core, a plumbed armour and lead-sheath earth connection, and a sealed outer jacket.

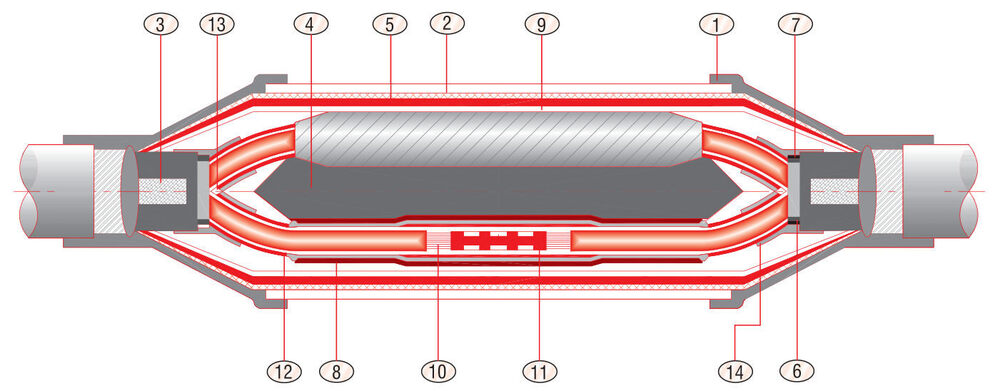

GPS/1112 is for 11 kV belted PILC cable (Umax 12 kV). The kit holds crimp-type inline connectors (copper or aluminium), oil barrier sleeves, heat shrinkable insulating tubing, an internal protection sleeve, insulation build-up mastic, polymeric core separator and insulating wedge, copper woven mesh tape, GI wire mesh, armour and lead-sheath earthing material, and an adhesive-lined outer jacket.

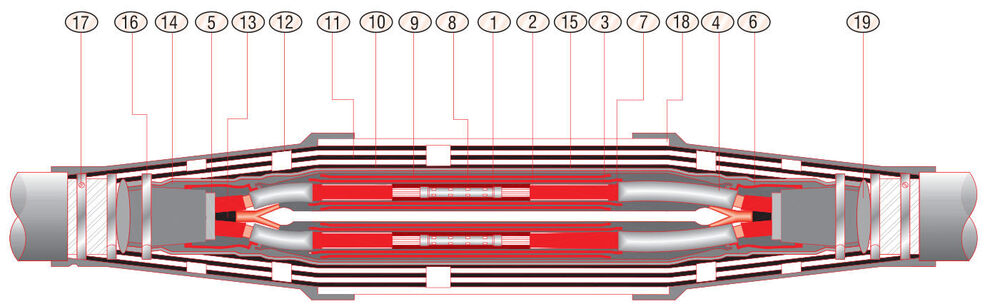

GPS/2436 is for screened PILC cable at 22 kV (24 kV class) and 33 kV (36 kV class). It adds stress control mastic and stress control tubing, a conducting breakout and conducting tube, void filler, red insulating tube and black-and-red dual wall tubing, a metallic protection cage and side sleeves.

Kit codes run from 16-35 sq mm to 500-630 sq mm at 11 kV, 25-50 to 300-500 sq mm at 24 kV and 35-70 to 400 sq mm at 36 kV. Each kit holds full contents for one joint, with installation aids and instructions.

Gala holds a POWERGRID manufacturer approval and a MECON vendor registration for cable jointing and termination kits up to 33 kV, and an EIL enlistment for kits up to 11 kV.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Heat shrinkable straight through joint kit for 3-core PILC cable
• Material: Heat shrinkable irradiation cross-linked polyolefin sleeves and tubing, oil barrier sleeves, mastics, copper mesh and GI mesh
• Voltage rating: 11 kV (GPS/1112, Umax 12 kV); 22 kV, 24 kV class and 33 kV, 36 kV class (GPS/2436)
• Size range: 16 sq mm to 630 sq mm (by series; see size table)
• Adhesive / sealant: Adhesive-lined outer jacketing; mastic sealing tape and insulation mastics included
• Application: Straight through jointing of 3-core paper insulated lead covered cable, belted (11 kV) or screened (22 and 33 kV)
• Installation: Crimp connectors, plumb the earth connection, then heat shrink with a gas torch; instructions in every kit
• Country of origin: India
• Kit contents (GPS/1112): Adhesive-lined outer jacketing, GI wire mesh, armour/lead-sheath earthing material (copper braid, plumbing metal, flux, copper binding wire), polymeric core separator, copper woven mesh tape, glass cushion tape, oil barrier sleeves, insulating tubing, internal protection sleeve, insulation build-up mastic, inline crimp connectors (Cu/Al), insulating wedge, mastic sealing tape, cleaning solvent, mopping cloth, PVC tape, silicone grease, emery sheet
• Kit contents (GPS/2436): Inline connector, stress control mastic, oil barrier sleeve, conducting tube, void filler, conducting breakout, grey mastic, stress control tubing, red insulating tube, dual wall tubing, metallic protection cage, adhesive-lined side sleeve, insulating wedge, copper mesh tape, earth lead, constant force spring clamp, worm drive clamp, outer jacketing sleeve, earthing plumb
• Approvals: POWERGRID manufacturer approval, cable jointing and termination kits up to 33 kV (to Feb 2028); MECON vendor registration, kits up to 33 kV (to May 2028); EIL enlistment, kits up to 11 kV (to Jun 2028)
• Unit of sale: Per kit (one 3-core joint)

Sizes

• Series | Cable size (sq mm) | Kit code
• 11 kV (GPS/1112) | 16-35 | GPS-11
• 11 kV (GPS/1112) | 50-95 | GPS-12
• 11 kV (GPS/1112) | 120-185 | GPS-13
• 11 kV (GPS/1112) | 240-400 | GPS-14
• 11 kV (GPS/1112) | 500-630 | GPS-15
• 24 kV class (GPS/2436) | 25-50 | GPS-21
• 24 kV class (GPS/2436) | 70-120 | GPS-22
• 24 kV class (GPS/2436) | 150-240 | GPS-23
• 24 kV class (GPS/2436) | 300-500 | GPS-24
• 36 kV class, 33 kV (GPS/2436) | 35-70 | GPS-31
• 36 kV class, 33 kV (GPS/2436) | 95-150 | GPS-32
• 36 kV class, 33 kV (GPS/2436) | 185-300 | GPS-33
• 36 kV class, 33 kV (GPS/2436) | 400 | GPS-34

Applications: Utility distribution networks with PILC cable, repair and extension of legacy paper cable, cable refurbishment projects, utilities' contractors
