22 kV Straight Through Joint Kit for 3 Core XLPE Cable - Heat Shrink

About 22 kV Straight Through Joint Kit for 3 Core XLPE Cable - Heat Shrink

The Gala GXS-21 to GXS-25 kits join two lengths of 3-core XLPE or PVC insulated, shielded cable in the 24 kV equipment class: 12.7/22 kV, 8.7/15 kV and 11/11 kV, the class used on unearthed 11 kV networks. They are used for cable fault repairs, extensions and new underground feeders.

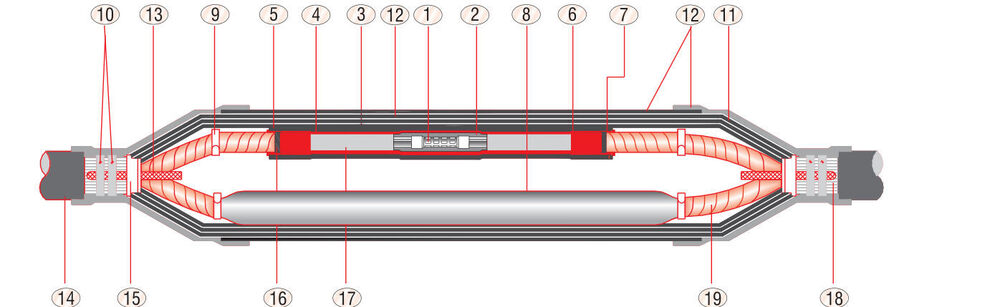

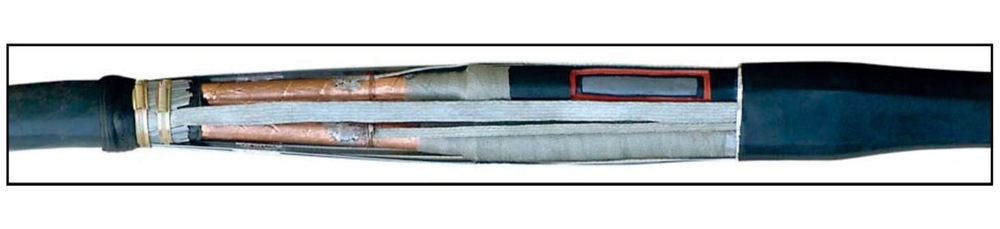

The joint rebuilds the cable layer by layer. Each core is connected with an inline ferrule and covered by stress control mastic, a black stress control sleeve, two red insulation tubes (six per kit at this voltage) and a red-and-black dual wall screened tube that restores insulation and semiconducting screen together. Copper woven mesh tape restores the core screens, a tinned copper braid carries earth across the joint, and a wraparound metallic joint case (or GI mesh) with heat shrinkable outer jacketing sleeves provides mechanical protection and sealing. Red mastic, worm drive clips and installation aids complete the kit.

Five kit codes cover cable sizes from 25-50 sq mm to 300-400 sq mm.

Gala holds a POWERGRID manufacturer approval and a MECON vendor registration for cable jointing and termination kits up to 33 kV.

Installation is with a gas torch after crimping the ferrules, following the illustrated instructions in every kit. Typical buyers are utilities' contractors and EPC firms on 22 kV and unearthed 11 kV networks, and industrial plants with 22 kV supply.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Heat shrinkable straight through joint kit, 3-core cable
• Material: Heat shrinkable irradiation cross-linked polyolefin tubing and jacketing, with stress control and sealing mastics, copper mesh and metallic joint case
• Colour: Red insulation tubing, black stress control sleeve, red and black dual wall tubing
• Voltage rating: 24 kV equipment class: 12.7/22 kV, 8.7/15 kV and 11/11 kV systems
• Size range: 3 x 25-50 sq mm to 3 x 300-400 sq mm
• Adhesive / sealant: Stress control mastic, red mastic and mastic sealing tape included
• Application: Straight through jointing of 3-core XLPE or PVC insulated, shielded cable, armoured or unarmoured
• Installation: Crimp ferrules, then heat shrink with a gas torch; illustrated instructions in every kit
• Country of origin: India

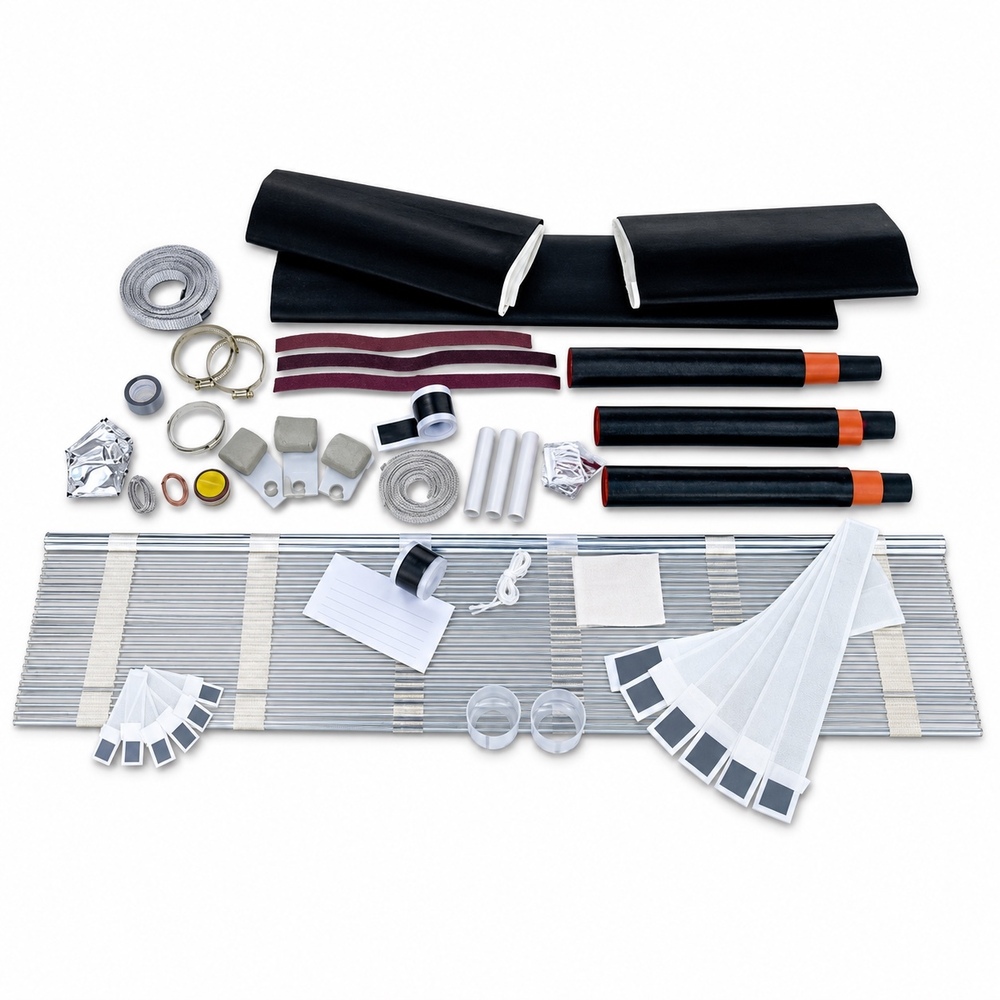

• Kit contents: Inline ferrule (3), stress control mastic, stress control sleeve (3), red insulation tubing (6), dual wall screened tubing (3), grey/yellow stress control mastic (6 strips), red mastic, copper woven mesh tape (3 rolls), solder tack or roll spring, worm drive clip (4), wraparound metallic joint case or GI mesh (1), outer jacketing sleeve (1 centre + 2 side), tinned copper earth braid (1), silicone grease, mastic sealing tape, nylon string, emery tape, PVC tape, mopping cloth, cleaning tissue, installation instructions
• Approvals: POWERGRID manufacturer approval, cable jointing and termination kits up to 33 kV (to Feb 2028); MECON vendor registration, kits up to 33 kV (to May 2028)
• Unit of sale: Per kit (one 3-core joint)

Sizes

• Cable size (sq mm) | Kit code
• 3 x 25-50 | GXS-21
• 3 x 70-95 | GXS-22
• 3 x 120-150 | GXS-23
• 3 x 185-240 | GXS-24
• 3 x 300-400 | GXS-25

Applications: 22 kV underground distribution, unearthed 11 kV networks, cable fault repair, feeder extension, industrial HT supply, utilities and EPC contractors
