33 kV Indoor Termination Kit for 3 Core XLPE Cable - Heat Shrink

About 33 kV Indoor Termination Kit for 3 Core XLPE Cable - Heat Shrink

The Gala GXE-31 to GXE-34 kits terminate 3-core XLPE or EPR insulated, shielded cable indoors on 19/33 kV systems: in 33 kV switchgear and panel cable compartments and in transformer cable boxes. They share their construction with the outdoor GXO-3x kits, adapted for indoor service.

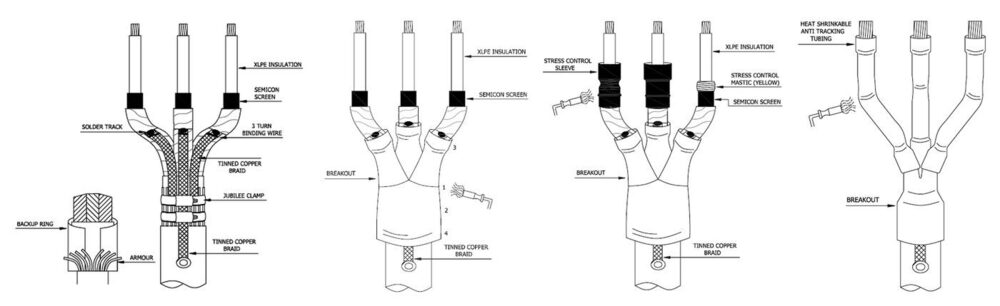

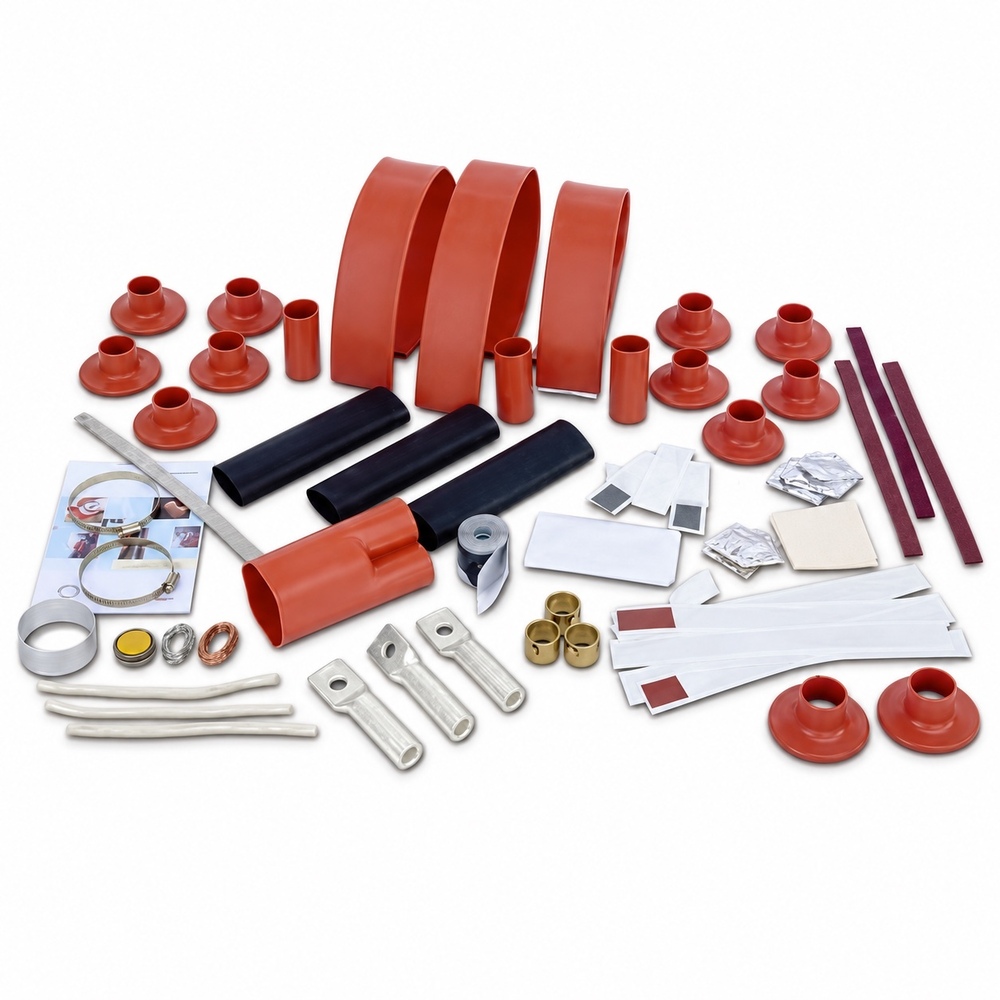

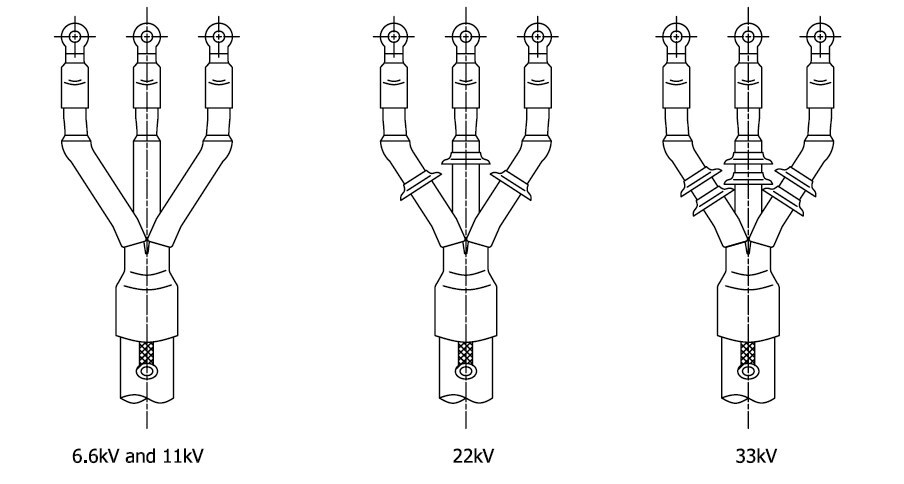

Each core gets a stress control tube and stress control mastic to grade the electric field where the cable screen ends, and a red non-tracking tube over the insulation. A non-tracking breakout seals the crutch of the three cores, terminal sleeves and lug sealing tape seal the lugs, and the kit includes armour and screen earthing sets, terminal lugs, mastic sealing tape and installation aids: silicone grease, cleaning tissue, nylon string for cutting XLPE, emery tape and an illustrated instruction manual.

Four kit codes cover cable sizes from 25-50 sq mm to 240-400 sq mm. Outdoor kits for the same cables are GXO-31 to GXO-34.

Gala holds a POWERGRID manufacturer approval and a MECON vendor registration for cable jointing and termination kits up to 33 kV.

Installation is with a gas torch, following the instructions in every kit. Typical buyers are switchgear and panel builders, EPC contractors, industrial plants and substation contractors working at 33 kV.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Heat shrinkable indoor termination kit, 3-core cable
• Material: Heat shrinkable irradiation cross-linked polyolefin tubing and breakout, with stress control and sealing mastics
• Colour: Red non-tracking tubing; black stress control tubing
• Voltage rating: 19/33 kV system (36 kV equipment class)
• Size range: 3 x 25-50 sq mm to 3 x 240-400 sq mm
• Adhesive / sealant: Mastic sealing tape, lug sealing tape and stress control mastic included
• Application: Indoor termination of 3-core XLPE/EPR insulated, shielded cable, armoured or unarmoured, in switchgear, panels and transformer cable boxes
• Installation: Heat shrink with a gas torch; illustrated instructions in every kit
• Country of origin: India
• Cable type: 3-core XLPE or EPR insulated, copper tape or wire screened
• Kit contents: Terminal lug (3), terminal sleeve (3), non-tracking tubing (3), stress control tubing (3), non-tracking cable breakout (1), tinned copper earth braid (1), worm drive clip (2), mastic sealing tape (1 roll), lug sealing tape (3), stress control mastic (3), armour earthing set, screen earthing set, silicone grease, cleaning tissue, nylon string, emery tape, mopping cloth, installation instructions
• Approvals: POWERGRID manufacturer approval, cable jointing and termination kits up to 33 kV (to Feb 2028); MECON vendor registration, kits up to 33 kV (to May 2028)
• Unit of sale: Per kit (one 3-core termination)

Sizes

• Cable size (sq mm) | Indoor kit code
• 3 x 25-50 | GXE-31
• 3 x 70-95 | GXE-32
• 3 x 120-185 | GXE-33
• 3 x 240-400 | GXE-34

Applications: 33 kV switchgear and panel cable connections, transformer cable boxes, indoor substations, industrial HT supply, utilities and EPC contractors
