11 kV Straight Through Joint Kit for 3 Core XLPE Cable - Heat Shrink
11 kV Straight Through Joint Kit for 3 Core XLPE Cable - Heat Shrink
11 kV Straight Through Joint Kit for 3 Core XLPE Cable - Heat Shrink
11 kV Straight Through Joint Kit for 3 Core XLPE Cable - Heat Shrink

11 kV Straight Through Joint Kit for 3 Core XLPE Cable - Heat Shrink

MOQ : 1 Piece

11 kV Straight Through Joint Kit for 3 Core XLPE Cable - Heat Shrink Specification

  • Usage & Applications
  • Straight through jointing of 3-core XLPE or PVC insulated, shielded cable, armoured or unarmoured
  • Install Type
  • Crimp ferrules, then heat shrink with a gas torch; illustrated instructions in every kit
  • Standard
  • IEC 60502-4 (VEIKI-VNL, Hungary, 2023, certificate 13222/VNL); IS 13573-2 and IEC 60502-4 (KEMA Type Test Certificates 1037-15 and 1038-15, 2015, 11 kV three-core joint, 3 x 185 sq mm Al XLPE)
  • Product Type
  • Heat shrinkable straight through joint kit, 3-core cable
  • Voltage
  • Medium Voltage
  • Rated Voltage
  • 6.35/11 kV system (12 kV equipment class)
  • Color
  • Red insulation tubing, black stress control sleeve, red and black dual wall tubing
  • Material
  • Heat shrinkable irradiation cross-linked polyolefin tubing and jacketing, with stress control and sealing mastics, copper mesh and metallic joint case
  • Size
  • 3 x 16-50 sq mm to 3 x 400-500 sq mm
  • Storage Condition
  • Store in dry, cool conditions
  • Mechanical Impact Resistance
  • High mechanical strength, shock-proof
  • Packing Type
  • Box Packed Kit
  • Dielectric Strength
  • 22 kV/mm
  • Shape
  • Straight Through / Branch / T-Shaped option
  • Environment Suitability
  • Indoor/Outdoor, Submersible Applications
  • Shelf Life
  • Minimum 24 months
  • Ingress Protection
  • IP68
  • Compatibility
  • LV, MV, HV cables (up to 36 kV) - XLPE/PVC/PILC
  • Compliance Standard
  • IEC 60502-4, IS 13573
  • UV Resistance
  • Yes
  • Fire Resistance
  • Flame Retardant
  • Resistance to Chemicals
  • Good resistance to acids, alkalis, and oils


11 kV Straight Through Joint Kit for 3 Core XLPE Cable - Heat Shrink Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Certifications
  • DCRP Oman product approval for Gala 11 kV terminations and joints (to Feb 2030); POWERGRID manufacturer approval, kits up to 33 kV (to Feb 2028); MECON vendor registration, kits up to 33 kV (to May 2028); EIL enlistment, kits up to 11 kV (to Jun 2028)


About 11 kV Straight Through Joint Kit for 3 Core XLPE Cable - Heat Shrink

The Gala GXS-11 to GXS-15 kits join two lengths of 3-core XLPE or PVC insulated, shielded 11 kV cable, armoured or unarmoured, for cable repairs, extensions and new underground feeders.

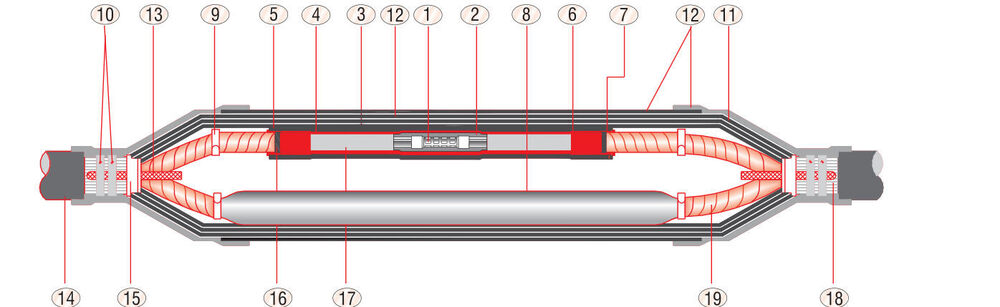

The joint rebuilds the cable layer by layer. Each core is connected with an inline ferrule, stress control mastic fills the connector area, a black stress control sleeve grades the field, a red insulation tube rebuilds the insulation, and a red-and-black dual wall screened tube restores insulation and semiconducting screen in one shrink. Copper woven mesh tape restores the core screens, a tinned copper braid carries earth continuity across the joint, and a wraparound metallic joint case (or GI mesh) and heat shrinkable outer jacketing sleeves give mechanical protection and sealing. Red mastic, worm drive clips and installation aids, including nylon string for cutting XLPE, complete the kit.

Five kit codes cover cable sizes from 16-50 sq mm to 400-500 sq mm. For 11/11 kV (unearthed) cable, use the 22 kV class kit.

This 11 kV joint has the strongest test record in Gala's kit range. The 11 kV kit family (joint code GXS-13) was type tested to IEC 60502-4 at VEIKI-VNL, Hungary, in 2023 and found to fulfil the standard (certificate 13222/VNL). KEMA, Netherlands, issued Type Test Certificates in 2015 for Gala's 11 kV three-core straight through joint, to IS 13573-2 (1037-15) and IEC 60502-4 (1038-15). Gala's 11 kV joints carry a DCRP Oman product approval, and Gala holds POWERGRID, MECON and EIL approvals for kits.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

  • Brand: Gala
  • Product type: Heat shrinkable straight through joint kit, 3-core cable
  • Material: Heat shrinkable irradiation cross-linked polyolefin tubing and jacketing, with stress control and sealing mastics, copper mesh and metallic joint case
  • Colour: Red insulation tubing, black stress control sleeve, red and black dual wall tubing
  • Voltage rating: 6.35/11 kV system (12 kV equipment class)
  • Size range: 3 x 16-50 sq mm to 3 x 400-500 sq mm
  • Adhesive / sealant: Stress control mastic, red mastic and mastic sealing tape included
  • Standards tested to: IEC 60502-4 (VEIKI-VNL, Hungary, 2023, certificate 13222/VNL); IS 13573-2 and IEC 60502-4 (KEMA Type Test Certificates 1037-15 and 1038-15, 2015, 11 kV three-core joint, 3 x 185 sq mm Al XLPE)
  • Application: Straight through jointing of 3-core XLPE or PVC insulated, shielded cable, armoured or unarmoured
  • Installation: Crimp ferrules, then heat shrink with a gas torch; illustrated instructions in every kit
  • Country of origin: India
  • Kit contents: Inline ferrule (3), stress control mastic, stress control sleeve (3), red insulation tubing (3), dual wall screened tubing (3), grey/yellow stress control mastic (6 strips), red mastic, copper woven mesh tape (3 rolls), solder tack or roll spring, worm drive clip (4), wraparound metallic joint case or GI mesh (1), outer jacketing sleeve (1 centre + 2 side), tinned copper earth braid (1), silicone grease, mastic sealing tape, nylon string, emery tape, PVC tape, mopping cloth, cleaning tissue, installation instructions
  • Approvals: DCRP Oman product approval for Gala 11 kV terminations and joints (to Feb 2030); POWERGRID manufacturer approval, kits up to 33 kV (to Feb 2028); MECON vendor registration, kits up to 33 kV (to May 2028); EIL enlistment, kits up to 11 kV (to Jun 2028)
  • Unit of sale: Per kit (one 3-core joint)

Sizes

  • Cable size (sq mm) | Kit code
  • 3 x 16-50 | GXS-11
  • 3 x 70-120 | GXS-12
  • 3 x 120-185 | GXS-13
  • 3 x 240-300 | GXS-14
  • 3 x 400-500 | GXS-15

Applications: 11 kV underground distribution, cable fault repair, feeder extension, industrial HT supply, utilities and EPC contractors, municipal and infrastructure projects

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Cable Jointing & Termination Kits Category

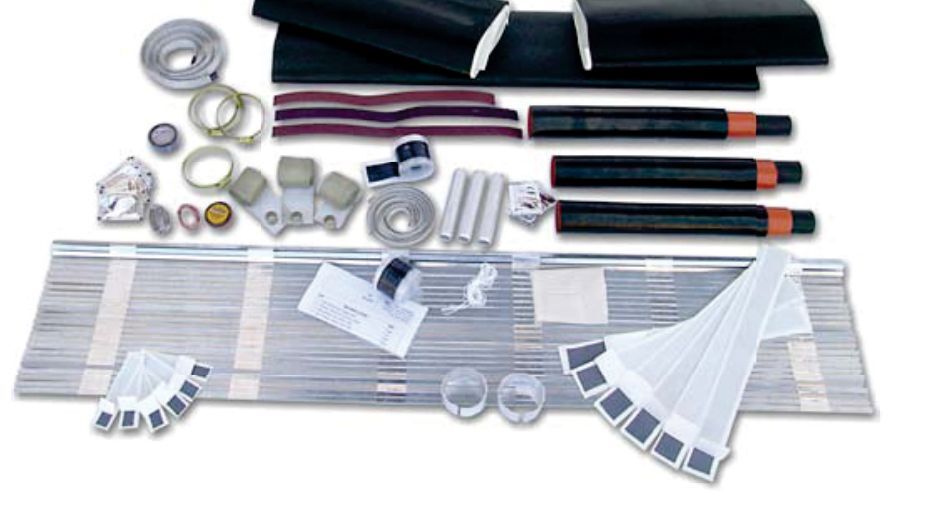

33 kV Straight Through Joint Kit for 3 Core XLPE Cable - Heat Shrink

33 kV Straight Through Joint Kit for 3 Core XLPE Cable - Heat Shrink

Minimum Order Quantity : 1 Piece

Usage & Applications : Straight through jointing of 3core XLPE or PVC insulated, shielded cable, armoured or unarmoured

Size : 1000 mm x 100 m

Install Type : Crimp ferrules, then heat shrink with a gas torch; illustrated instructions in every kit

Material : Heat shrinkable irradiation crosslinked polyolefin tubing and jacketing, with stress control and sealing mastics, copper mesh and metallic joint case

Rated Voltage : 19/33 kV system (36 kV equipment class)

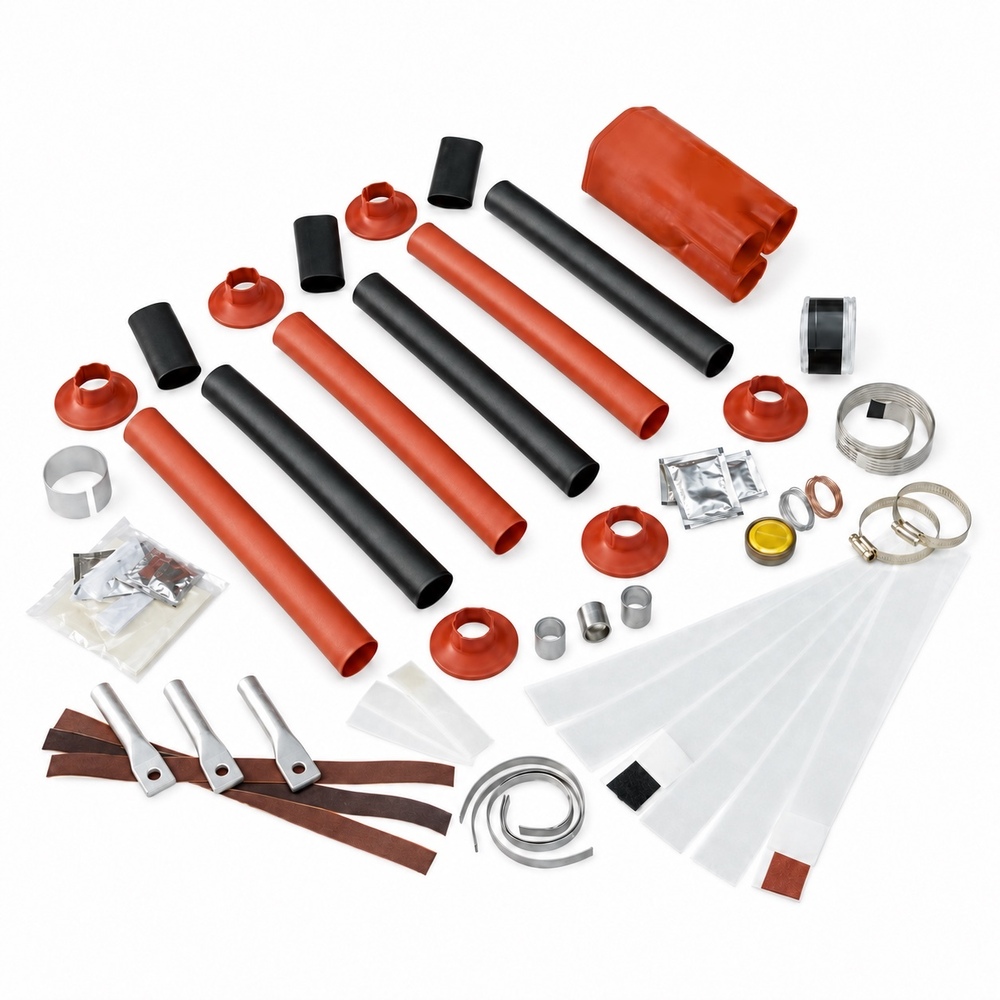

11 kV Outdoor Termination Kit for 3 Core XLPE Cable - Heat Shrink

11 kV Outdoor Termination Kit for 3 Core XLPE Cable - Heat Shrink

Usage & Applications : Outdoor termination of 3core XLPE/EPR insulated, shielded cable, armoured or unarmoured

Size : For cable sizes from 1.5 sqmm to 1000 sqmm

Install Type : Heat shrink with a gas torch; illustrated instructions in every kit

Material : Heat shrinkable irradiation crosslinked polyolefin tubing, breakout and rain sheds, with stress control and sealing mastics

Rated Voltage : 6.35/11 kV system (12 kV equipment class)

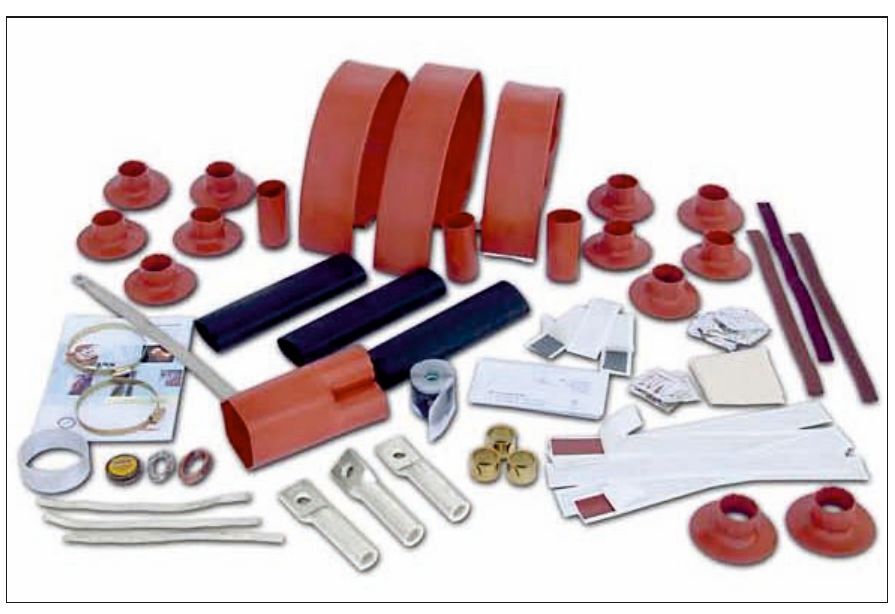

33 kV Outdoor Termination Kit for 3 Core XLPE Cable - Heat Shrink
