Bushing Boot for Switchgear and Transformers (BUSHINGBOOT GSBB)

About Bushing Boot for Switchgear and Transformers (BUSHINGBOOT GSBB)

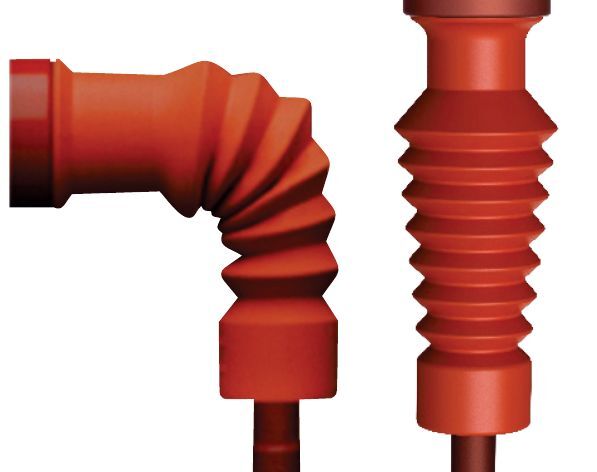

Inside switchgear and transformer cable boxes the joint between the cable termination, its lug and the bushing is often the weakest point for flashover, especially where phase spacing is tight. Gala's BUSHINGBOOT is a straight, bellows-shaped insulating boot made from a non-tracking elastomeric compound. It covers that joint and adds phase-to-phase and phase-to-earth insulation, protecting against flashover and induced surges in the cable box.

The boot is cold applied: no heat is used. The installer checks that the lug has no sharp points, smears the silicone grease supplied with the boot over the finished cable core, slides the boot down over it, greases the inside of the bushing adaptor and pushes it onto the bushing so that its collar sits at least 5 to 10 mm onto the bushing and at least 15 mm from the back plate. The bellows section then lets the boot be set in a straight line or bent to a right angle to suit the connection. The boot does not provide touch protection.

Two sizes are made, both 230 mm long with a 50.5 mm bushing entry and a 2.5 mm wall: GSBB-1 with a 17.5 mm cable entry and GSBB-2 with a 22.0 mm cable entry. The user should check that the boot suits the particular bushing.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Bellows-type bushing boot, cold applied (non-shrinkable)
• Material: Non-tracking elastomeric compound
• Colour: Red
• Size range: Bushing entry 50.5 mm min; cable entry 17.5 or 22.0 mm min
• Wall type / thickness: 2.5 mm minimum
• Adhesive / sealant: Silicone grease supplied
• Application: Insulating cable termination to bushing connections in switchgear and transformer cable boxes
• Installation: Greased and slid over the cable core and onto the bushing; set straight or at a right angle
• Country of origin: India
• Touch proof: No

Sizes

• GSBB-1 | total length 230 mm min | bushing entry ID 50.5 mm min | cable entry ID 17.5 mm min | wall 2.5 mm min
• GSBB-2 | total length 230 mm min | bushing entry ID 50.5 mm min | cable entry ID 22.0 mm min | wall 2.5 mm min

Applications: Switchgear manufacturers, transformer manufacturers, RMU and compact substation builders, electricity distribution utilities, electrical contractors, industrial MV installations
