Reusable Right Angle Insulating Boot for Cable Terminations (GRRB)

Get a Price/Quote

Reusable Right Angle Insulating Boot for Cable Terminations (GRRB) Specification

Usage & Applications
Insulating and sealing PILC and XLPE cable terminations at switchgear, RMU and transformer bushings

Install Type
Push-on, cold applied; removable and re-usable; can be energised immediately

Product Type
Right-angle insulating boot, re-usable, cold applied

Color
Red

Material
Modified silicone rubber

Size
Bushing entry 44.0 mm min; cable entry 20.0 mm min

Environmental Compliance
RoHS compliant

Waterproof Rating
IP65 or higher

Surface Finish
Smooth for easy cleaning

UV Resistance
Excellent, suitable for outdoor use

Reusable Cycles
1000+ removal & reinstallation cycles

Shape
Flexible boot design

Flame Retardant
Yes, meets IEC 60695-2-10

Hardness
60-70 Shore A

About Reusable Right Angle Insulating Boot for Cable Terminations (GRRB)

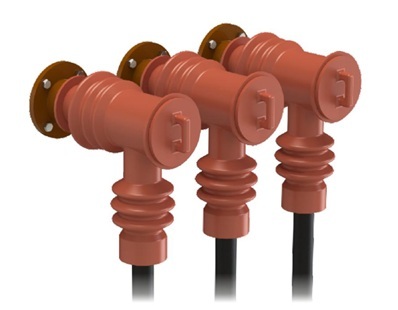

Gala's reusable insulating boot is a right-angle (elbow) boot with a bellows leg, moulded from a modified silicone rubber. It fits over the termination of a PILC or XLPE cable where it is bolted to a switchgear, RMU or transformer bushing, and seals the cable, the cable lug and the bushing together. The rubber gives the flexibility and electrical strength needed between phases and between phase and earth, so the boot protects the connection against flashover caused by rodents and high humidity in the cable box.

The boot is designed to be disconnected and re-used. It can be fitted and removed as often as required, the connection can be voltage tested directly, and it can be energised immediately after the boot is fitted, with no heat or curing time. One size, GRRB-1, has a 44 mm bushing entry, a 20 mm cable entry and leg lengths of 175 mm and 170 mm, and has range-taking capability across cable sizes.

It is used by switchgear and RMU manufacturers, distribution utilities and contractors on indoor terminations where clearances are tight or where connections are opened regularly for testing.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

Brand: Gala
Product type: Right-angle insulating boot, re-usable, cold applied
Material: Modified silicone rubber
Colour: Red
Size range: Bushing entry 44.0 mm min; cable entry 20.0 mm min
Application: Insulating and sealing PILC and XLPE cable terminations at switchgear, RMU and transformer bushings
Installation: Push-on, cold applied; removable and re-usable; can be energised immediately
Country of origin: India

Sizes

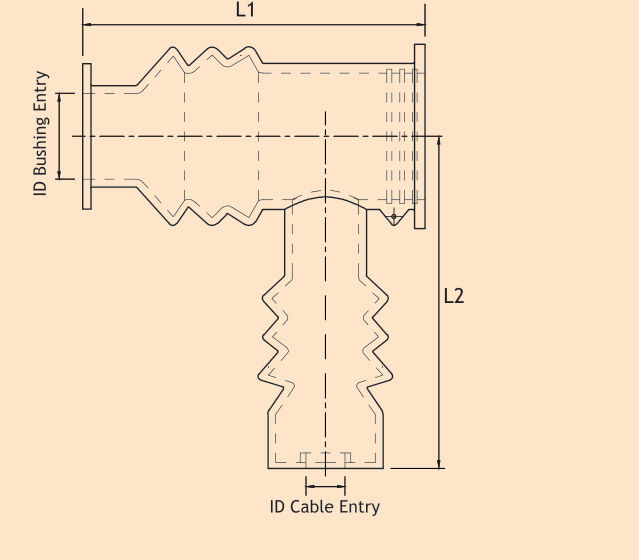

GRRB-1 | bushing entry ID 44.0 mm min | cable entry ID 20.0 mm min | L1 175.0 mm min | L2 170.0 mm min

Applications: Switchgear manufacturers, RMU manufacturers, transformer manufacturers, electricity distribution utilities, electrical contractors, industrial MV substations

Tell us about your requirement
