Heat Shrink Connector Boot - Straight / Right Angle / P Type / L Type
Heat Shrink Connector Boot - Straight / Right Angle / P Type / L Type
Heat Shrink Connector Boot - Straight / Right Angle / P Type / L Type
Heat Shrink Connector Boot - Straight / Right Angle / P Type / L Type
Heat Shrink Connector Boot - Straight / Right Angle / P Type / L Type
Heat Shrink Connector Boot - Straight / Right Angle / P Type / L Type

Heat Shrink Connector Boot - Straight / Right Angle / P Type / L Type

MOQ : 1 Piece

Heat Shrink Connector Boot - Straight / Right Angle / P Type / L Type Specification

  • Size
  • 109 sizes; connector end recovering to 7 to 67 mm, cable end to 2 to 25.4 mm
  • Installation Guideline
  • Heat-shrink with a hot-air tool at the installation temperature of the grade
  • Coating Type
  • Optional: -11 hot melt (-20 to 60 deg C), -22 hot melt (-55 to 105 deg C), -33 epoxy (-75 to 150 deg C)
  • Product Type
  • Moulded heat-shrink boot for cable-to-connector joints (straight, right angle, P-type, L-type)
  • Application
  • Sealing, insulation and strain relief at circular connectors on cable harnesses
  • Usage & Applications
  • Sealing, insulation and strain relief at circular connectors on cable harnesses
  • Operating Temperature
  • -75 to 150 deg C (grade -10), -55 to 135 deg C (grade -20), -42 to 105 deg C (grade -30)
  • Color
  • Black
  • Material
  • Three grades - modified elastomer (-10), flame-retardant polyolefin (-20), semi-flexible polyolefin (-30)



About Heat Shrink Connector Boot - Straight / Right Angle / P Type / L Type

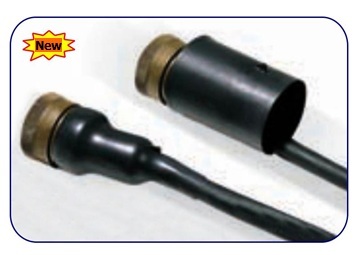

Where a cable enters the back of a circular connector, the joint needs mechanical protection, strain relief and a seal against dust and moisture. Gala's heat shrink boots are moulded shapes made for exactly that position, so the protected end is neat and repeatable rather than built up from tube and tape.

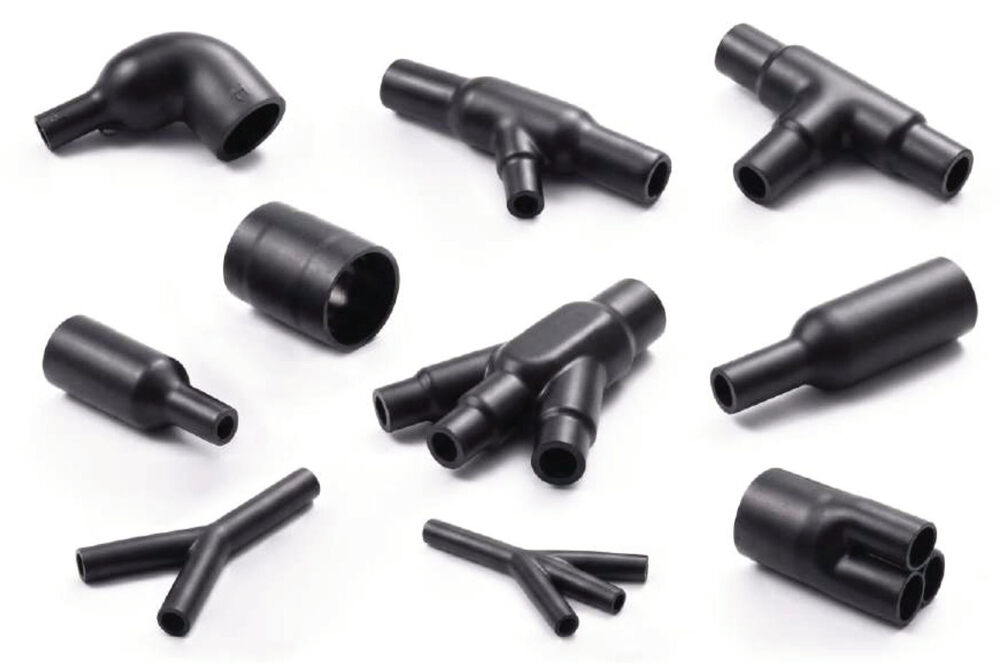

Each boot is supplied expanded and shrinks with heat onto the connector body at one end and the cable at the other. Straight boots run in line with the cable; right-angle and L-type boots turn the cable through 90 degrees; P-type boots are made for circular connectors and receptacles. Versions with a lip, or a lip and rib, locate on the connector's groove, and some shapes also take over the job of the outer cable armour at the connector. The inner wall can be pre-coated for sealing and waterproofing.

Boots are offered in three material grades: -10 semi-rigid fluid-resistant modified elastomer (-75 to 150 deg C, installs at 175 deg C), -20 semi-rigid flame-retardant polyolefin (-55 to 135 deg C, installs at 150 deg C) and -30 semi-flexible polyolefin (-42 to 105 deg C, installs at 150 deg C). Three adhesive grades are available: -11 general-purpose hot melt, -22 high-performance hot melt and -33 epoxy. The full part number combines shape, lip and rib, size, material and adhesive.

Typical users are harness makers for defence, rail and public transport, commercial vehicles and industrial equipment. Sizes are chosen from the connector-end and cable-end diameters in the selection charts.

Supplied by Gala, India. Datasheet and size selection on request.

Specifications

  • Brand: Gala
  • Product type: Moulded heat-shrink boot for cable-to-connector joints (straight, right angle, P-type, L-type)
  • Material: Three grades - modified elastomer (-10), flame-retardant polyolefin (-20), semi-flexible polyolefin (-30)
  • Colour: Black
  • Operating temperature: -75 to 150 deg C (grade -10), -55 to 135 deg C (grade -20), -42 to 105 deg C (grade -30)
  • Size range: 109 sizes; connector end recovering to 7 to 67 mm, cable end to 2 to 25.4 mm
  • Adhesive / sealant: Optional: -11 hot melt (-20 to 60 deg C), -22 hot melt (-55 to 105 deg C), -33 epoxy (-75 to 150 deg C)
  • Application: Sealing, insulation and strain relief at circular connectors on cable harnesses
  • Installation: Heat-shrink with hot-air tool at the grade's installation temperature
  • Country of origin: India
  • Shrink temperature: 175 deg C (grade -10), 150 deg C (grades -20 and -30)

Sizes

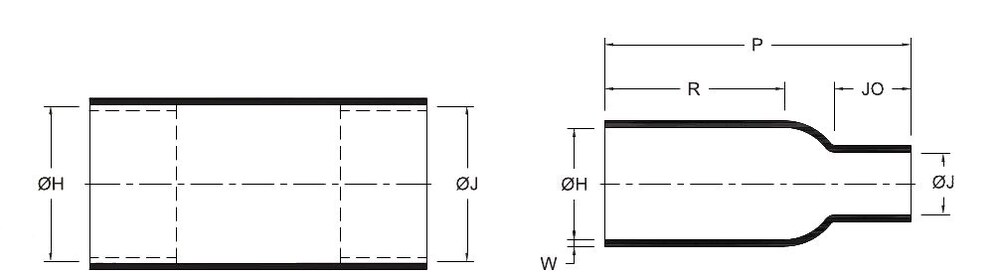

  • All in mm. H = connector (body) end, J = cable (neck) end; supplied (min) / after free recovery (max). Lengths, lips and walls per size are in the datasheet.
  • Family | Codes | Sizes | H supplied / recovered | J supplied / recovered
  • Straight GHSB | GHSB-0408 to GHSB-2557 | 11 | 16.5-86.4 / 7.0-57.2 | 16.5-86.4 / 3.8-25.0
  • Straight with lip GHSB/L | GHSB/L-0510 to GHSB/L-2557 | 8 | 25.6-81.7 / 10.3-57.6 | 23.0-81.7 / 4.7-25.4
  • Straight lip and rib GHSB/LR | GHSB/LR-0510 to GHSB/LR-2557 | 8 | 25.6-81.7 / 10.3-57.6 | 23.0-81.7 / 4.7-25.4
  • P-type GHPB/L | GHPB/L-0611 to GHPB/L-2367 | 19 | 22.3-81.8 / 11.4-67.1 | 22.3-81.8 / 6.4-22.9
  • P-type receiver GHPB1/L | GHPB1/L-0710 to GHPB1/L-1745 | 8 | 23.8-62.7 / 9.9-45.4 | 17.2-53.3 / 6.6-16.7
  • P-type receiver GHPB2/L | GHPB2/L-0213 to GHPB2/L-0434 | 5 | 19.3-43.6 / 13.0-34.1 | 6.3-11.6 / 2.0-3.6
  • Right angle GHRB | GHRB-0308 to GHRB-2355 | 9 | 17.8-87.6 / 7.9-55.4 | 17.8-87.6 / 2.5-23.4
  • Right angle with lip GHRB/L | GHRB/L-0510 to GHRB/L-2355 | 8 | 23.3-81.8 / 10.4-55.0 | 23.3-81.8 / 5.0-23.4
  • Right angle lip and rib GHRB/LR | GHRB/LR-0510 to GHRB/LR-2355 | 8 | 25.7-82.0 / 10.5-55.0 | 22.0-82.0 / 4.8-23.4
  • L-type GHLB/L | GHLB/L-0611 to GHLB/L-2060 SL | 18 | 22.3-69.3 / 11.4-59.7 | 22.3-69.3 / 6.4-20.0
  • L-type GHLB1/L | GHLB1/L-0710 to GHLB1/L-1541 | 7 | 23.8-51.5 / 9.9-41.1 | 17.2-44.4 / 6.6-15.0

Applications: Defence and military harnesses, railway and metro rolling stock, public transport vehicles, commercial and special vehicles, industrial equipment, cable harness manufacturing, electronics and instrumentation

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Heat Shrinkable Moulded Shapes Category

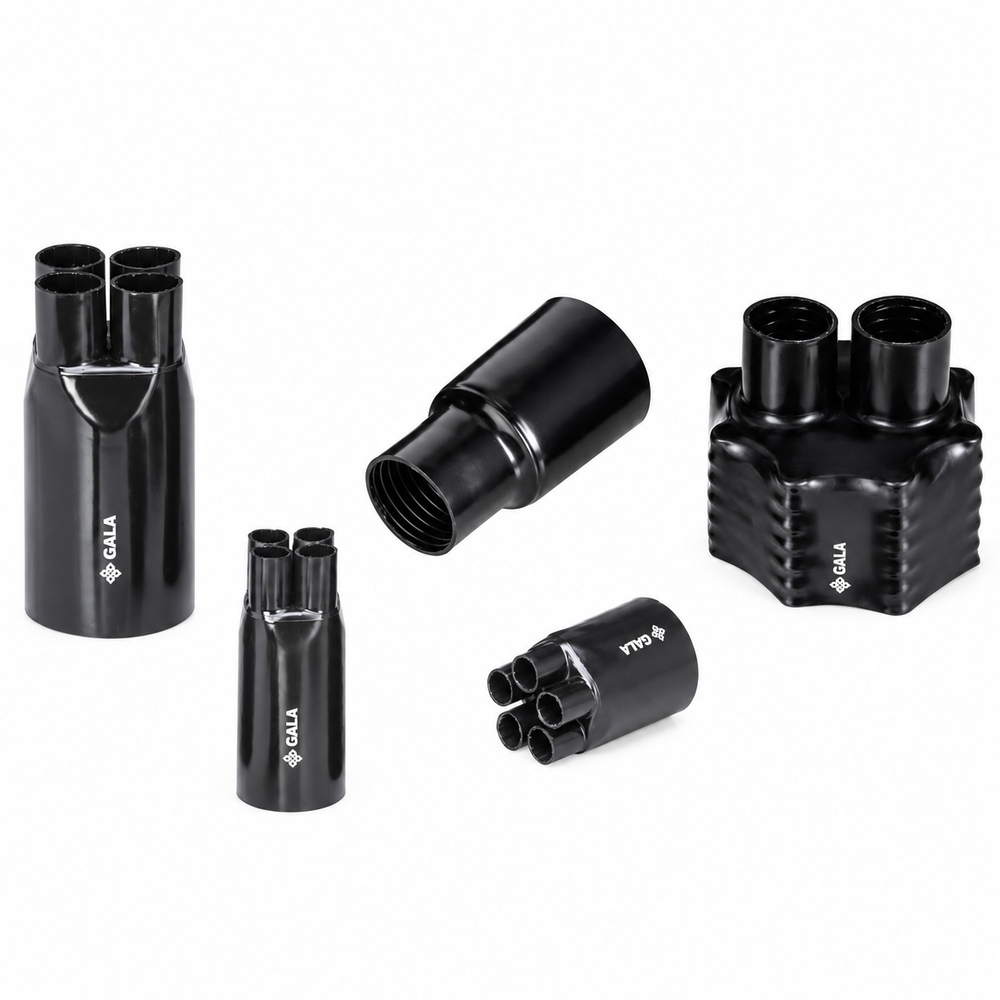

Heat Shrink LV Cable Breakout 2 to 7 Core up to 1.1 kV (INSULCORE)

Heat Shrink LV Cable Breakout 2 to 7 Core up to 1.1 kV (INSULCORE)

Minimum Order Quantity : 1 Piece

Usage & Applications : Sealing the crutch of multicore PVC, XLPE, rubber and PILC LV cables

Installation Guideline : Propane or butane torch, from the centre of the body outwards

Color : Black

Product Type : Heatshrinkable cable breakout (crutch seal) for multicore LV cable

Material : Crosslinked polyolefin

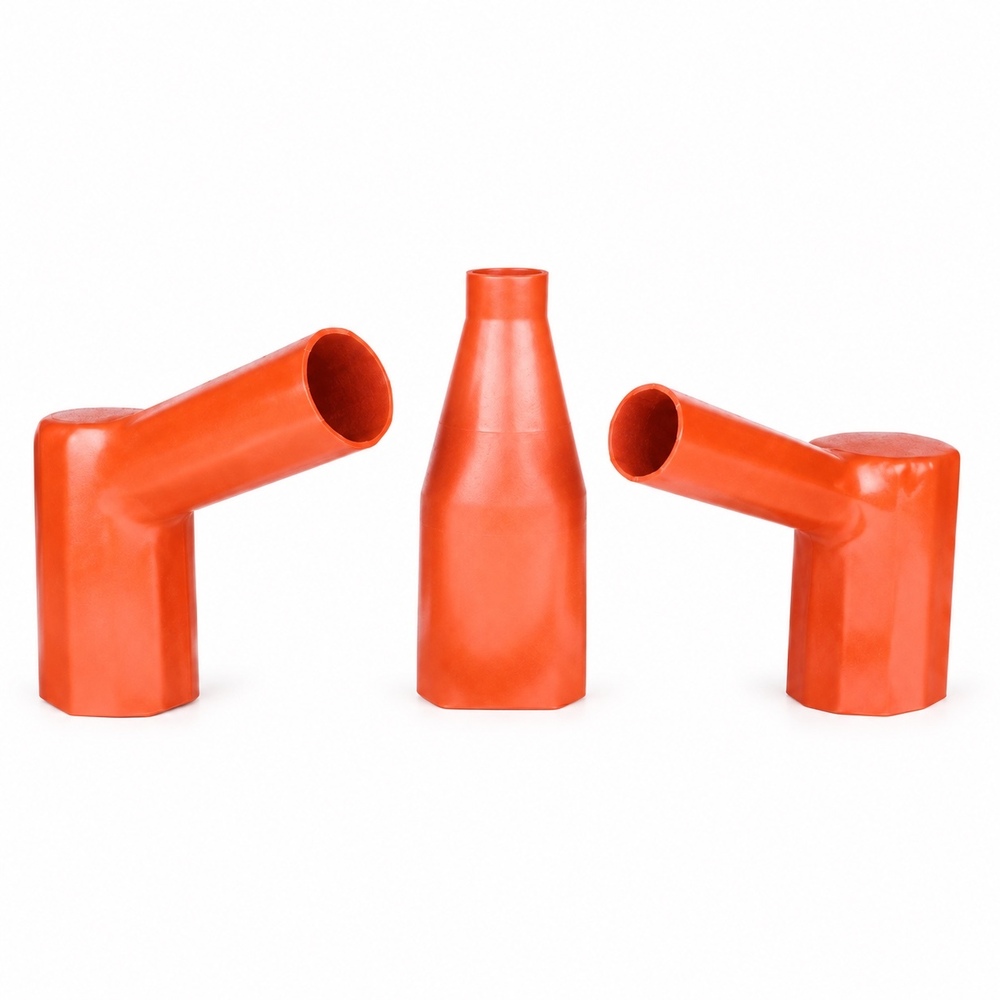

Heat Shrink Right Angle and Straight Boot for Bushings (ANGLEBOOT)

Heat Shrink Right Angle and Straight Boot for Bushings (ANGLEBOOT)

Minimum Order Quantity : 1 Piece

Usage & Applications : Insulating bushing connections in cable termination boxes with reduced clearances

Installation Guideline : Mastic tape over the connection, then heatshrink the boot with a gas torch

Color : Red (orangered)

Product Type : Heatshrinkable bushing boot, rightangle and straight

Material : Nontracking crosslinked polyolefin

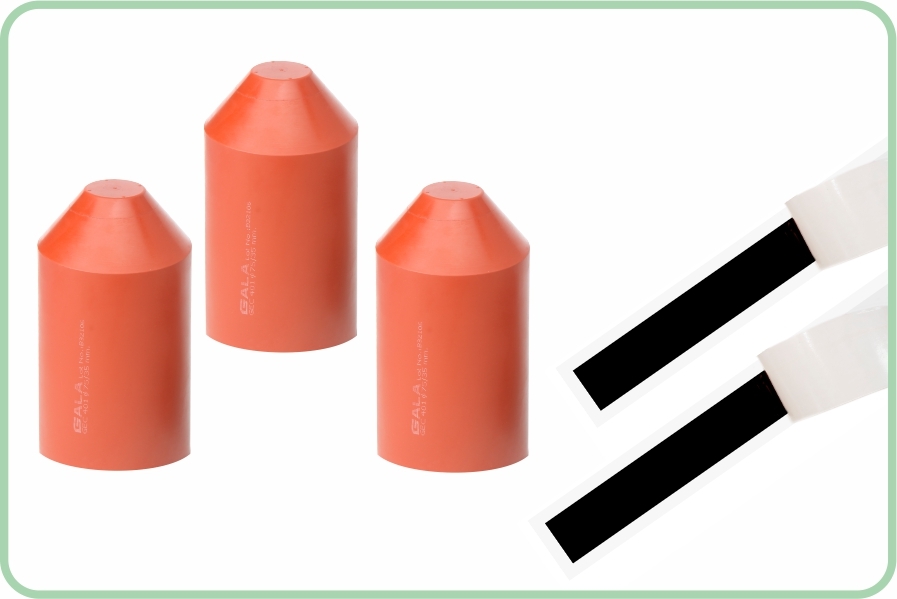

Bushing Cap for Extensible RMU and GIS Bushings - Heat Shrink (GEK)

Bushing Cap for Extensible RMU and GIS Bushings - Heat Shrink (GEK)

Minimum Order Quantity : 1 Piece

Usage & Applications : Sealing and insulating unused bushings on extensible RMUs and GIS panels

Installation Guideline : Slipped over the bushing end and heat shrunk; removed before a new connection

Color : Red

Product Type : Heat shrinkable bushing end cap (unscreened), end sealing kit

Material : Crosslinked nontracking polyolefin

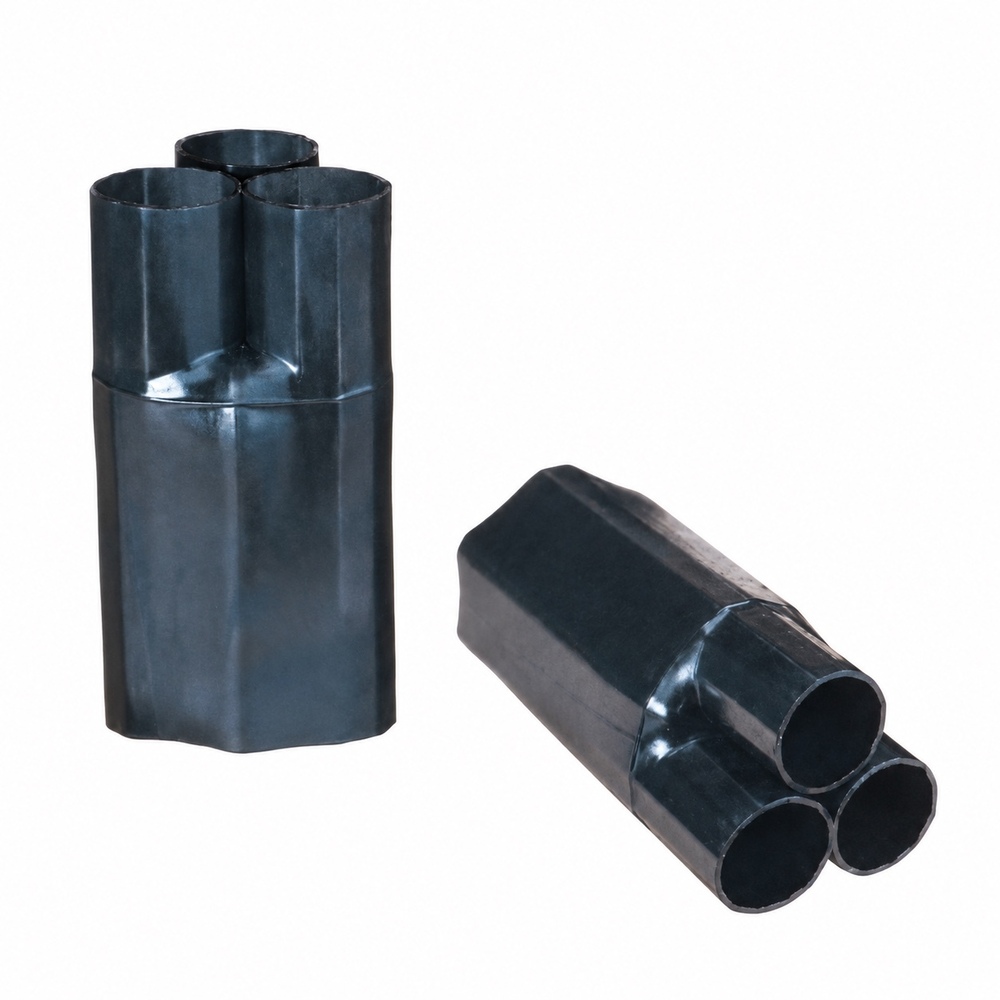

Heat Shrink Semi-Conductive Cable Breakout for 3 Core PILC Cable (GCB)
