Heat Shrink Semi-Conductive Cable Breakout for 3 Core PILC Cable (GCB)
Heat Shrink Semi-Conductive Cable Breakout for 3 Core PILC Cable (GCB)
Heat Shrink Semi-Conductive Cable Breakout for 3 Core PILC Cable (GCB)
Heat Shrink Semi-Conductive Cable Breakout for 3 Core PILC Cable (GCB)

Heat Shrink Semi-Conductive Cable Breakout for 3 Core PILC Cable (GCB)

MOQ : 1 Piece

Heat Shrink Semi-Conductive Cable Breakout for 3 Core PILC Cable (GCB) Specification

  • Size
  • GCB-0820 to GCB-2755 A, 7 sizes, 3-core
  • Installation Guideline
  • Slide over the crutch, one core per finger; shrink with gas torch
  • Coating Type
  • Water-resistant red mastic
  • Product Type
  • Semi-conductive heat-shrinkable cable breakout, 3-core
  • Tensile Strength
  • 12 N/mm2 min (ASTM D638)
  • Application
  • Crutch sealing and individual core screening on 3-core PILC belted cable
  • Usage & Applications
  • Crutch sealing and individual core screening on 3-core PILC belted cable
  • Color
  • Black (printed CONDUCTIVE)
  • Operating Temperature
  • -40 to +100 deg C (continuous)
  • Material
  • Cross-linked semi-conductive polyolefin



About Heat Shrink Semi-Conductive Cable Breakout for 3 Core PILC Cable (GCB)

A three-core PILC belted cable has one belt of insulation and one screen around all three cores, and no screen on each individual core. When the cable is terminated or jointed, each core needs its own screen continued up from the crutch. Gala's INSULCORE semi-conductive breakout does both jobs: it seals the crutch and puts a semi-conductive layer around each core.

The breakout is moulded from cross-linked semi-conductive polyolefin, printed "CONDUCTIVE", and coated inside with water-resistant red mastic. It is supplied expanded with three fingers, slid over the crutch with one core through each finger and shrunk with a gas torch. The recovered breakout grips the cable sheath and the three cores, sealing the crutch against moisture and continuing the screen over each core.

Its defining property is low volume resistivity: Gala guarantees a maximum of 1 x 107 ohm-cm, so the material conducts rather than insulates. Other guaranteed values are 12 N/mm2 minimum tensile strength, 300 % minimum elongation and a continuous temperature limit of -40 to +100 deg C.

Seven sizes cover cable sheaths that recover to 20 to 56 mm and cores that recover to 8 to 29 mm. The breakout is used in PILC cable terminations and joints, typically as part of a termination or jointing kit. Gala is an ISO 9001, ISO 14001 and ISO 45001 certified manufacturer.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

  • Brand: Gala
  • Product type: Semi-conductive heat-shrinkable cable breakout, 3-core
  • Material: Cross-linked semi-conductive polyolefin
  • Colour: Black (printed CONDUCTIVE)
  • Operating temperature: -40 to +100 deg C (continuous)
  • Size range: GCB-0820 to GCB-2755 A, 7 sizes, 3-core
  • Adhesive / sealant: Water-resistant red mastic
  • Application: Crutch sealing and individual core screening on 3-core PILC belted cable
  • Installation: Slide over the crutch, one core per finger; shrink with gas torch
  • Country of origin: India
  • Shrink temperature: 125 deg C
  • Volume resistivity: 1 x 107 ohm-cm max (ASTM D257)
  • Tensile strength: 12 N/mm2 min (ASTM D638)
  • Elongation: 300 % min (ASTM D638)
  • Water absorption: 0.5 % max (ASTM D570)

Sizes

  • All in mm, supplied (min) / after free recovery (max).

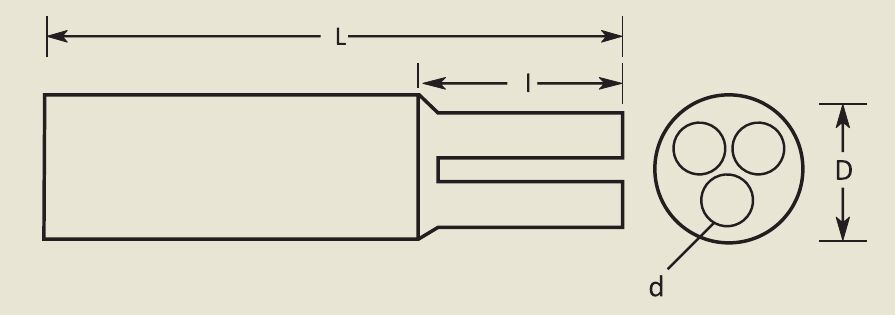

  • Code | Body ID | Finger ID | Overall length supplied / recovered (min)
  • GCB-0820 | 55 / 20 | 25 / 8 | 160 / 188
  • GCB-1330 | 80 / 30 | 36 / 13 | 185 / 215
  • GCB-1330 A | 95 / 30 | 39 / 13 | 170 / 215
  • GCB-2145 | 110 / 45 | 55 / 20 | 190 / 230
  • GCB-2145 A | 125 / 45 | 55 / 21 | 175 / 230
  • GCB-2755 | 140 / 56 | 68 / 29 | 200 / 250
  • GCB-2755 A | 170 / 56 | 70 / 29 | 180 / 255

Applications: PILC cable terminations, PILC cable joints, power distribution utilities, cable jointing contractors, network refurbishment
