Heat Shrink Fibre Optic Closure Sealing Tube and Cable Entry Kit (GSF)

About Heat Shrink Fibre Optic Closure Sealing Tube and Cable Entry Kit (GSF)

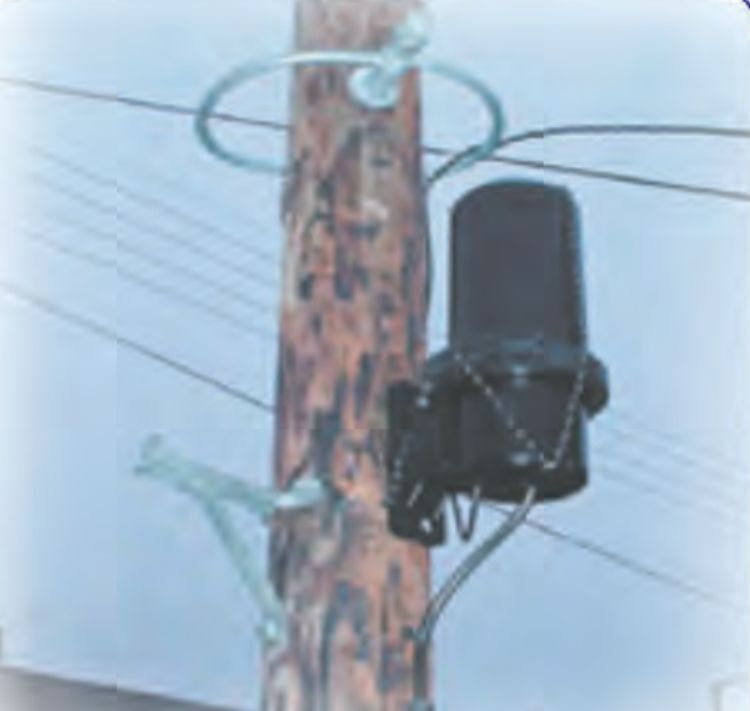

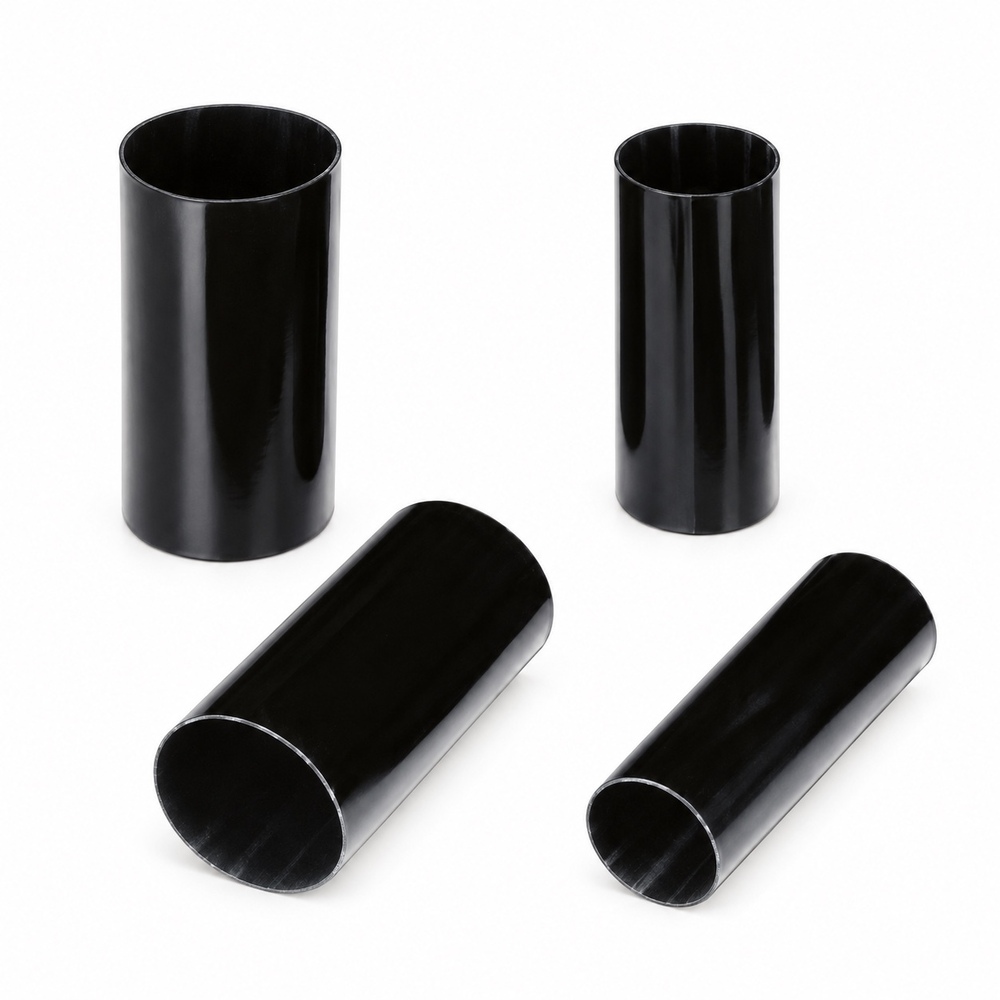

A fibre optic splice closure is only as watertight as its cable entries. Where each cable passes through a port in the closure base, a heat-shrink sleeve is shrunk over the port and the cable sheath to seal the gap against water, moisture and dirt. Gala's INSULTUBE Commercial (code GSF) is a cross-linked polyolefin tube made for that job, lined with hot-melt adhesive that melts during shrinking and bonds to both the port and the cable sheath.

The tube resists weathering, moisture, contamination, UV, ozone, chemicals and solvents, is light and flexible, and gives the cable strain relief at the entry. Eight sizes run from GSF 12/4 to GSF 75/25, where the first figure is the minimum supplied inside diameter and the second the maximum recovered inside diameter, in mm; recovered walls are 2.0 to 3.0 mm.

The same sleeve is supplied as a cable entry sealing kit. Each kit holds one heat-shrinkable tube, two cleaning tissues, one emery tape for roughening the sheath, two aluminium tapes and one branch-off clip for sealing two cables in a single port. Kit tubes use an EVA hot-melt adhesive and carry a temperature-sensitive ink that shows when the tube has reached shrink temperature. Kits are available for round and oval closure ports.

Shrink with a gas torch; the tube recovers at 125 deg C.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Heat shrink sealing tube for fibre optic closure cable entries; also as a cable entry sealing kit
• Material: Cross-linked polyolefin
• Colour: Black (kit tubes black with speckle, printed GALA)
• Operating temperature: -40 deg C to +110 deg C (continuous)
• Size range: 12 to 75 mm supplied ID; 4 to 25 mm recovered ID
• Wall type / thickness: 2.0 mm to 3.0 mm after recovery (+/-10%)
• Adhesive / sealant: Hot-melt adhesive lining (EVA in the kit)
• Standards tested to: Test methods quoted on Gala's datasheet - ASTM D638, ASTM D2671, ASTM D570, ESI 09-11, IEC 216
• Application: Sealing cable entries at the base of fibre optic splice closures
• Installation: Clean and abrade the sheath, fit the tube over port and cable, shrink with a gas torch
• Country of origin: India
• Shrink temperature: 125 deg C
• Tensile strength: 11 N/mm2 min (ASTM D638)
• Elongation at break: 350% min (ASTM D638)
• Kit contents: Heat shrinkable tube 1, cleaning tissue 2, emery tape 1, aluminium tape 2, branch-off clip 1

Sizes

• GSF 12/4 | 12 / 4 | wall 2.0
• GSF 17/6 | 17 / 6 | wall 2.0
• GSF 30/8 | 30 / 8 | wall 2.5
• GSF 35/12 | 35 / 12 | wall 2.5
• GSF 40/16 | 40 / 16 | wall 2.5
• GSF 50/20 | 50 / 20 | wall 2.5
• GSF 65/22 | 65 / 22 | wall 2.5
• GSF 75/25 | 75 / 25 | wall 3.0

Applications: Telecom operators, FTTH and fibre network contractors, splice closure makers, CATV and broadband operators, railway and utility communication networks
