Heat Shrink Live End Cap Kit for 4 Core Cable (INSULCAP-Live GLEC)

About Heat Shrink Live End Cap Kit for 4 Core Cable (INSULCAP-Live GLEC)

Some cable ends have to be left sealed and clearly marked, for example spare ends of a distribution cable, ends parked during phased work, or cables awaiting connection. A single end cap seals the sheath but leaves the cores touching each other inside. The Gala INSULCAP-Live kit seals each core separately first.

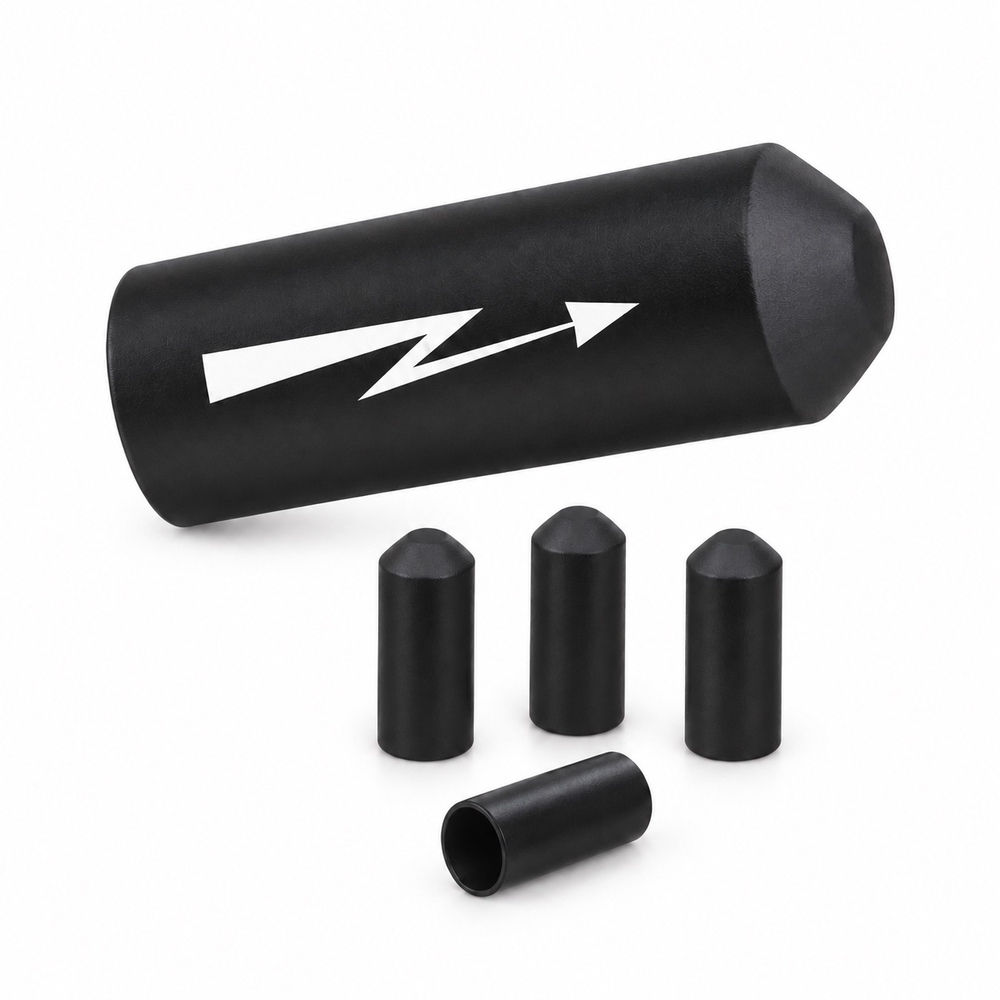

Each kit contains four small inner caps, one per core, and one thick-wall outer cap. After cleaning and degreasing, a small cap is shrunk onto every core; the outer cap is then shrunk over the four capped cores and the cable sheath, closing the end with a smooth seal. The outer cap is marked with a live-flash symbol so the end is easy to identify. All caps are cross-linked polyolefin with an adhesive lining and are shrunk with a gas torch.

Four kits cover 4-core cables with conductors from 1.5 sq mm to 300 sq mm. Choose the kit by conductor size; each kit lists the outer cap and the inner cap that go together.

The caps are made from the same cross-linked polyolefin family as Gala's INSULCAP end caps, with a continuous temperature limit of -40 to +100 deg C. Gala is an ISO 9001, ISO 14001 and ISO 45001 certified manufacturer.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Heat-shrink end sealing kit for 4-core cable (4 inner core caps + 1 outer cap)
• Material: Cross-linked polyolefin
• Colour: Black
• Operating temperature: -40 to +100 deg C (continuous)
• Size range: 4 x 1.5 sq mm to 4 x 300 sq mm conductors, four kits
• Adhesive / sealant: Adhesive-lined caps
• Application: Sealing and marking 4-core cable ends

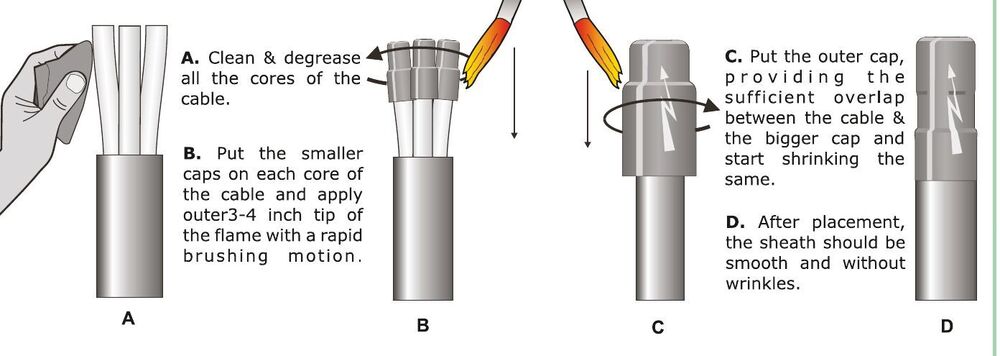

• Installation: Clean and degrease; shrink an inner cap on each core, then the outer cap over cores and sheath; gas torch
• Country of origin: India
• Kit contents: 4 inner caps and 1 outer cap per cable end

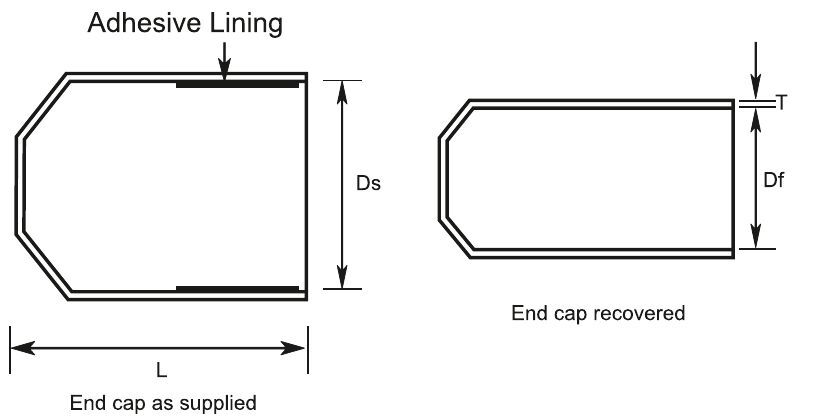

Sizes

• All in mm unless stated. ID = supplied (min) / recovered (max).
• Cable | Outer cap code | Outer cap ID | Outer cap length (min) | Inner cap code | Inner cap ID | Inner cap length (min)
• 4 x 1.5-6 sq mm | GLEC 101AL | 25 / 8 | 75 | GLEC 001S | 6 / 2 | 25
• 4 x 4-35 sq mm | GLEC 201 L | 40 / 15 | 120 | GLEC 001 | 12 / 4 | 40
• 4 x 50-150 sq mm | GLEC 301 L | 55 / 25 | 170 | GLEC 101 | 20 / 7.5 | 55
• 4 x 150-300 sq mm | GLEC 401 L | 75 / 35 | 180 | GLEC 201 | 40 / 15 | 90

Applications: Power distribution utilities, LV distribution networks, electrical contractors, industrial plants, building services, metro and infrastructure projects
