Heat Shrink Cable End Cap (INSULCAP GEC Series)

About Heat Shrink Cable End Cap (INSULCAP GEC Series)

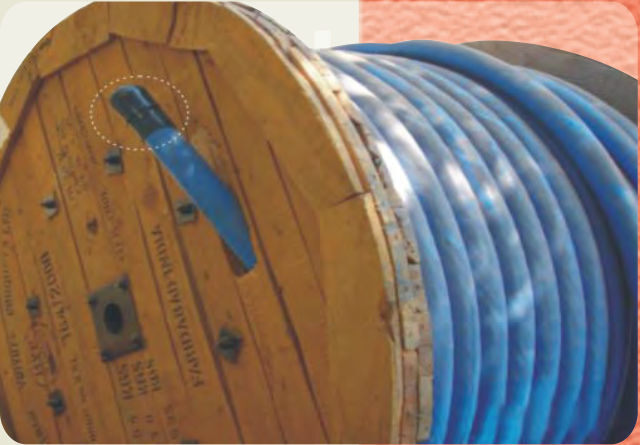

A cut cable end lets water and moisture travel into the conductor and insulation, whether the cable is on a drum in the yard, waiting in a trench or left as a spare end after jointing. The Gala INSULCAP end cap closes that end permanently.

The cap is a closed-end moulding of cross-linked polyolefin, supplied expanded, with a hot-melt adhesive lining inside. When heated it shrinks onto the cable sheath and the adhesive melts into the irregularities of the jacket, forming a watertight seal. It suits XLPE, PVC, PILC and rubber-sheathed cables.

Fitting takes a few minutes: cut the cable end straight, remove any serving and armour, clean and degrease the sheath, push the cap over the end and shrink it with a propane (preferred) or butane torch, working from the closed end towards the cable until adhesive shows at the open end. The cap recovers above 125 deg C. Let it cool before the cable is handled.

Sizes are chosen by cable outside diameter: each code covers a cable range, and most sizes come in a standard and a long version, plus A versions for a wider range. The smallest cap fits 2.5 mm cable and the largest takes cables up to 460 mm across, so one family covers control cables, LV and MV power cables and large multicore cables on export drums.

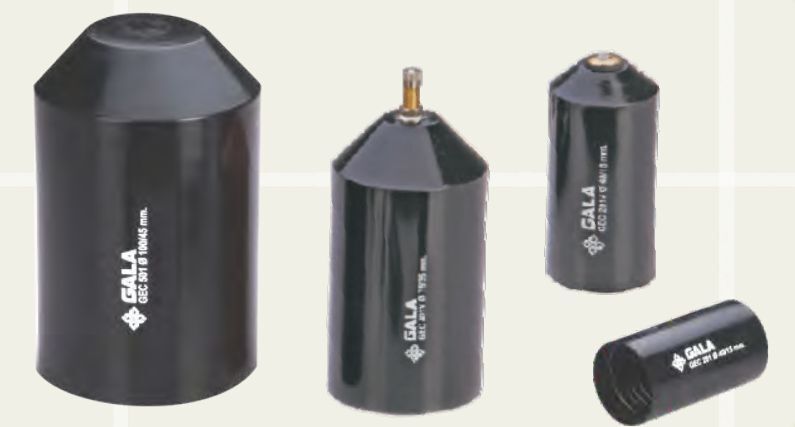

Related Gala caps are listed separately: end caps with a cable pulling eye, de-gassing caps with a relief valve, caps with a pressure valve, conductive caps, live end cap kits and tamper-proof printed caps. Gala is an ISO 9001, ISO 14001 and ISO 45001 certified manufacturer.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Heat-shrinkable cable end cap (closed-end moulded cap)
• Material: Cross-linked polyolefin
• Colour: Black
• Operating temperature: -40 to +100 deg C (continuous)
• Size range: GEC 001 S to GEC 1101, cable outside diameter 2.5 to 460 mm
• Wall type / thickness: Recovered wall 2.0 to 7.0 mm depending on size
• Adhesive / sealant: Hot-melt adhesive lining
• Standards tested to: Material XRF-screened for cadmium, lead, mercury and chromium by TCR Engineering (NABL-accredited lab), 2020 - none detected
• Application: Sealing cut ends of XLPE, PVC, PILC and rubber-sheathed power and control cables
• Installation: Propane or butane torch, from the closed end towards the cable
• Country of origin: India
• Shrink temperature: 125 deg C (recovers above 125 deg C)

Sizes

• All in mm. Supplied ID is the minimum internal diameter as supplied; choose by cable OD range.
• Code (standard / long) | Cable OD range | Supplied ID (min) | Length (min) standard / long
• GEC 001 S | 2.5 - 4 | 6 | 25
• GEC 001 SA | 2.5 - 6 | 8 | 25
• GEC 001 / 001 L | 5 - 8 | 12 | 40 / 58
• GEC 001 A / 001 AL | 5 - 11 | 14 | 40 / 58
• GEC 101 / 101 L | 10 - 16 | 20 | 55 / 75
• GEC 101 A / 101 AL | 10 - 20 | 25 | 55 / 75
• GEC 102 / 102 L | 13 - 26 | 30 | 75 / 110
• GEC 102 A / 102 AL | 13 - 30 | 35 | 75 / 115
• GEC 201 / 201 L | 17 - 35 | 40 | 90 / 120
• GEC 201 A / 201 AL | 17 - 40 | 45 | 90 / 120
• GEC 301 / 301 L | 30 - 47 | 55 | 125 / 170
• GEC 301 A / 301 AL | 30 - 55 | 63 | 125 / 170
• GEC 401 / 401 L | 42 - 68 | 75 | 140 / 180
• GEC 401 A / 401 AL | 42 - 78 | 85 | 140 / 180
• GEC 501 / 501 L | 55 - 90 | 100 | 160 / 200
• GEC 501 A / 501 AL | 55 - 110 | 120 | 160 / 200
• GEC 601 / 601 L | 75 - 120 | 130 | 160 / 300
• GEC 701 / 701 N / 701 L | 75 - 145 | 158 (701 L: 160) | 165 / 165 / 300
• GEC 701 AL | 75 - 145 | 170 | 300
• GEC 701 XXL | 85 - 160 | 180 | 585
• GEC 801 S | 140 - 165 | 190 | 220
• GEC 801 | 140 - 200 | 230 | 220
• GEC 801 A / 801 AL | 140 - 250 | 280 | 225 / 550
• GEC 901 | 140 - 280 | 310 | 220
• GEC 1001 | 230 - 360 | 400 | 220
• GEC 1101 | 230 - 460 | 500 | 220

Applications: Cable manufacturing (drum end sealing), power utilities, EPC and electrical contractors, cable laying and jointing, substations, industrial plants, infrastructure and metro projects, telecom cable networks, export cable packing
