Heat Shrink Tube for CATV Connectors and Tap Terminations (GBT)

About Heat Shrink Tube for CATV Connectors and Tap Terminations (GBT)

Outdoor and underground CATV connections fail when water gets into the connector. Gala's INSULTUBE Premium (code GBT) is a heat-shrinkable tube designed for the broadband CATV industry to stop that. Slid over a coaxial connector or tap termination and heated, it shrinks to follow the profile of the connector, and its hot-melt adhesive lining melts and seals against the cable sheath.

It gives mechanical protection and strain relief as well as the seal, resists weathering, moisture and contamination, and is light and flexible. Typical uses are insulating underground and aerial connections in CATV plant, CCTV camera connections and control-cable splicing joints.

Eight sizes run from GBT 12/4 to GBT 70/22. The first figure is the minimum supplied inside diameter and the second the maximum recovered inside diameter, in mm; the high shrink ratio lets one tube pass over a bulky connector and still grip the cable. Recovered walls are 2.0 to 2.5 mm. The tube is also available on spools, and custom dimensions, thicknesses, lengths and colours can be made to order. Shrink with a hot-air tool or a soft gas flame, working from the centre outwards.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Adhesive-lined heat shrink tube for CATV connectors
• Material: Heat-shrinkable cross-linked tubing with hot-melt adhesive lining
• Size range: 12 to 70 mm supplied ID; 4 to 22 mm recovered ID
• Wall type / thickness: 2.0 mm to 2.5 mm after recovery (+/-10%)
• Adhesive / sealant: Hot-melt adhesive lining
• Application: Sealing and protecting CATV coaxial connectors and tap terminations, CCTV connections, control-cable splices
• Installation: Hot-air tool or gas torch
• Country of origin: India
• Packing: Cut pieces, or on spools

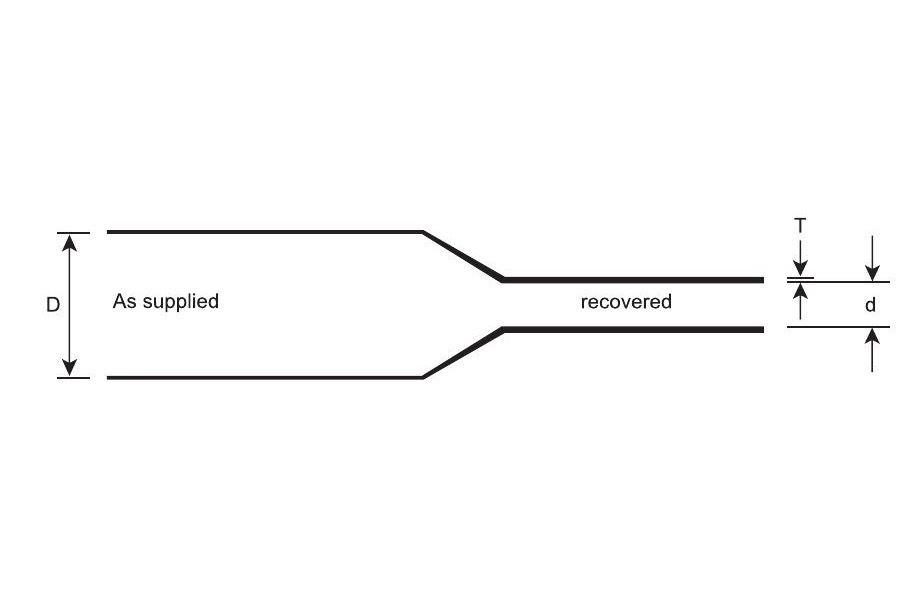

Sizes

• GBT 12/4 | D 12 | d 4 | T 2.0
• GBT 17/6 | D 17 | d 6 | T 2.0
• GBT 27/8 | D 27 | d 8 | T 2.5
• GBT 30/10 | D 30 | d 10 | T 2.5
• GBT 40/12 | D 40 | d 12 | T 2.5
• GBT 50/16 | D 50 | d 16 | T 2.5
• GBT 60/20 | D 60 | d 20 | T 2.5
• GBT 70/22 | D 70 | d 22 | T 2.5

Applications: Cable TV and broadband operators, CATV and CCTV installers, telecom contractors, security system integrators, control-cable jointers
