Dual Wall Adhesive Lined Heat Shrink Tube 3:1 and 4:1 (GDW)
Dual Wall Adhesive Lined Heat Shrink Tube 3:1 and 4:1 (GDW)
Dual Wall Adhesive Lined Heat Shrink Tube 3:1 and 4:1 (GDW)
Dual Wall Adhesive Lined Heat Shrink Tube 3:1 and 4:1 (GDW)

Dual Wall Adhesive Lined Heat Shrink Tube 3:1 and 4:1 (GDW)

MOQ : 1 Piece

Dual Wall Adhesive Lined Heat Shrink Tube 3:1 and 4:1 (GDW) Specification

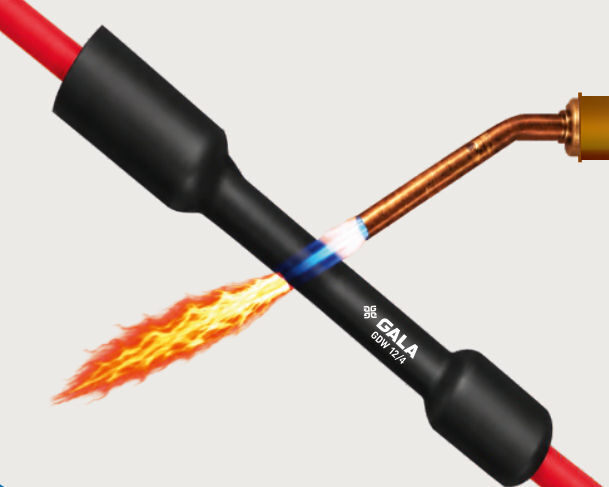

  • Installation Guideline
  • Gas torch, centre outwards, until adhesive appears at both ends
  • Feature
  • Shrink ratio 3:1 and 4:1 ranges
  • Size
  • 3 mm to 50 mm supplied ID (3:1); 4 mm to 24 mm supplied ID (4:1)
  • Coating Type
  • Hot-melt adhesive inner wall, 0.35 to 0.90 mm after recovery
  • Product Type
  • Dual wall (adhesive lined) heat shrink tube
  • Rated Voltage
  • 600 V (UL recognition)
  • Tensile Strength
  • 9 N/mm2 min (ASTM D638)
  • Thickness
  • 0.9 mm to 2.6 mm after recovery including adhesive
  • Application
  • Sealing and insulating wire splices, harness joints and connector transitions
  • Usage & Applications
  • Sealing and insulating wire splices, harness joints and connector transitions
  • Operating Temperature
  • -55 deg C to +125 deg C (outer wall)
  • Color
  • Black (other colours on request)
  • Material
  • Co-extruded cross-linked polyolefin outer wall with hot-melt adhesive inner wall
  • Flame Retardancy
  • Yes, self-extinguishing
  • Surface Finish
  • Smooth
  • Shrink Ratio
  • 2:1 or 3:1 (varies per product)
  • Inner Surface
  • Smooth or adhesive lined (optional)
  • Elongation at Break
  • >200%
  • Resistance
  • Excellent resistance to common fluids, solvents, and abrasion
  • Full Recovery Temperature
  • 110C
  • Dielectric Constant
  • <3 @ 1MHz
  • Minimum Shrink Temperature
  • 70C
  • Halogen Free
  • Available upon request
  • RoHS Compliance
  • Yes


Dual Wall Adhesive Lined Heat Shrink Tube 3:1 and 4:1 (GDW) Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Packaging Details
  • Spools of 25 m to 200 m depending on size


About Dual Wall Adhesive Lined Heat Shrink Tube 3:1 and 4:1 (GDW)

GDW is Gala's dual wall tubing. Two layers are co-extruded together: an outer wall of cross-linked polyolefin that insulates and protects, and an inner wall of hot-melt adhesive. When the tube is heated the outer wall shrinks and the adhesive melts and flows into the gaps between wires, so one shrink gives both electrical insulation and a permanent seal against water and dirt.

It is used to seal wire splices and harness joints in automotive and communication equipment, as a simpler alternative to moulded parts and cable breakouts, and to insulate cables that carry connectors of different sizes in telecom, industrial equipment and avionics. The 4:1 range is useful where the tube must pass over a large connector and still grip a thin wire.

Two ranges are offered. The 3:1 range runs from GDW 3/1 to GDW 50/17; the 4:1 range from GDW 4/1 to GDW 24/6. Each size is supplied on a spool of 25 to 200 m. The code gives supplied and recovered inside diameter in mm; the recovered wall thickness quoted includes the adhesive layer.

GDW is a UL Recognized Component under file E328193 (heat-shrinkable polyolefin tubing with meltable liner, 600 V, 125 deg C, VW-1 flame rating). It is shrunk with a gas torch, working from the centre outwards until adhesive shows at both ends.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

  • Brand: Gala
  • Product type: Dual wall (adhesive lined) heat shrink tube
  • Material: Co-extruded cross-linked polyolefin outer wall with hot-melt adhesive inner wall
  • Colour: Black (other colours on request)
  • Voltage rating: 600 V (UL recognition)
  • Operating temperature: -55 deg C to +125 deg C (outer wall)
  • Shrink ratio: 3:1 and 4:1 ranges
  • Size range: 3 mm to 50 mm supplied ID (3:1); 4 mm to 24 mm supplied ID (4:1)
  • Wall type / thickness: 0.9 mm to 2.6 mm after recovery including adhesive
  • Adhesive / sealant: Hot-melt adhesive inner wall, 0.35 to 0.90 mm after recovery
  • Standards tested to: UL Recognized Component, file E328193 (UL 224 basis, VW-1); other test methods quoted on Gala's datasheet - ASTM D638, ASTM D570, ASTM D150, ASTM D257
  • Application: Sealing and insulating wire splices, harness joints and connector transitions
  • Installation: Gas torch, centre outwards, until adhesive appears at both ends
  • Country of origin: India
  • Tensile strength: 9 N/mm2 min (ASTM D638)
  • Elongation at break: 300% min
  • Water absorption: 0.15% max
  • Dielectric strength: 15 kV/mm min
  • Dielectric constant: 3.0 max
  • Volume resistivity: 1 x 1013 ohm.cm min
  • Packing: Spools of 25 m to 200 m depending on size

Sizes

  • GDW 3/1 | 3:1 | 3.0 / 1.0 | wall 0.9 | adhesive 0.35 | 200 m spool
  • GDW 6/2 | 3:1 | 6.0 / 2.0 | wall 1.1 | adhesive 0.40 | 50 m
  • GDW 9/3 | 3:1 | 9.0 / 3.0 | wall 1.3 | adhesive 0.50 | 30 m
  • GDW 12/4 | 3:1 | 12.0 / 4.0 | wall 1.5 | adhesive 0.60 | 30 m
  • GDW 18/6 | 3:1 | 18.0 / 6.0 | wall 1.9 | adhesive 0.70 | 30 m
  • GDW 24/8 | 3:1 | 24.0 / 8.0 | wall 2.2 | adhesive 0.80 | 25 m
  • GDW 30/10 | 3:1 | 30.0 / 10.0 | wall 2.3 | adhesive 0.90 | 25 m
  • GDW 39/13 | 3:1 | 39.0 / 13.0 | wall 2.4 | adhesive 0.90 | 25 m
  • GDW 50/17 | 3:1 | 50.0 / 17.0 | wall 2.4 | adhesive 0.90 | 25 m
  • GDW 4/1 | 4:1 | 4.0 / 1.0 | wall 1.05 | adhesive 0.40 | 200 m
  • GDW 6/1.5 | 4:1 | 6.0 / 1.5 | wall 1.15 | adhesive 0.40 | 100 m
  • GDW 8/2 | 4:1 | 8.0 / 2.0 | wall 1.20 | adhesive 0.40 | 50 m
  • GDW 12/3 | 4:1 | 12.0 / 3.0 | wall 1.50 | adhesive 0.60 | 30 m
  • GDW 16/4 | 4:1 | 16.0 / 4.0 | wall 1.80 | adhesive 0.60 | 30 m
  • GDW 24/6 | 4:1 | 24.0 / 6.0 | wall 2.60 | adhesive 0.75 | 25 m

Applications: Automotive wire harness, communication and telecom equipment, industrial equipment, avionics and aerospace wiring, marine electrical (lug and terminal insulation), cable assembly
