11 kV Outdoor Termination Kit for 3 Core XLPE Cable - Heat Shrink Specification

  • Cable Type
  • 3-core XLPE or EPR insulated, copper tape or wire screened
  • Install Type
  • Heat shrink with a gas torch; illustrated instructions in every kit
  • Standard
  • IEC 60502-4 (VEIKI-VNL, Hungary, 2023, certificate 13222/VNL, 6/10 (12) kV kit family)
  • Usage & Applications
  • Outdoor termination of 3-core XLPE/EPR insulated, shielded cable, armoured or unarmoured
  • Product Type
  • Heat shrinkable outdoor termination kit, 3-core cable
  • Voltage
  • Medium Voltage
  • Rated Voltage
  • 6.35/11 kV system (12 kV equipment class)
  • Color
  • Red non-tracking tubing and rain sheds; black stress control tubing
  • Material
  • Heat shrinkable irradiation cross-linked polyolefin tubing, breakout and rain sheds, with stress control and sealing mastics
  • Size
  • 3 x 16-35 sq mm to 3 x 400-500 sq mm
  • Type
  • Indoor & Outdoor Termination
  • Storage Life
  • Up to 48 months under normal conditions
  • Packaging
  • Individual kit packaging with instruction manual
  • Operating Temperature Range
  • -40C to +110C
  • Waterproof Level
  • IP67 on proper installation
  • Conductor Accommodation
  • Suitable for Aluminum & Copper conductors
  • Cold Flow
  • Low cold flow for dimensional stability
  • Dielectric Strength
  • >24 kV/mm
  • Compatibility
  • Suitable for XLPE/PVC/EPR insulated cables
  • Resistance
  • Resistant to UV, chemicals, and tracking
  • Min Shrink Temperature
  • 120C


11 kV Outdoor Termination Kit for 3 Core XLPE Cable - Heat Shrink Trade Information

  • Certifications
  • DCRP Oman product approval for Gala 11 kV terminations and joints (to Feb 2030); POWERGRID manufacturer approval, kits up to 33 kV (to Feb 2028); MECON vendor registration, kits up to 33 kV (to May 2028); EIL enlistment, kits up to 11 kV (to Jun 2028)


About 11 kV Outdoor Termination Kit for 3 Core XLPE Cable - Heat Shrink

The Gala GXO-11 to GXO-15 kits terminate 3-core XLPE or EPR insulated, shielded cable outdoors on 6.35/11 kV systems, at overhead line poles, outdoor substations, transformers and outdoor switchgear. The kit controls the electric stress where the cable screen ends, protects each core against tracking and weather, and seals the breakout and lugs against moisture.

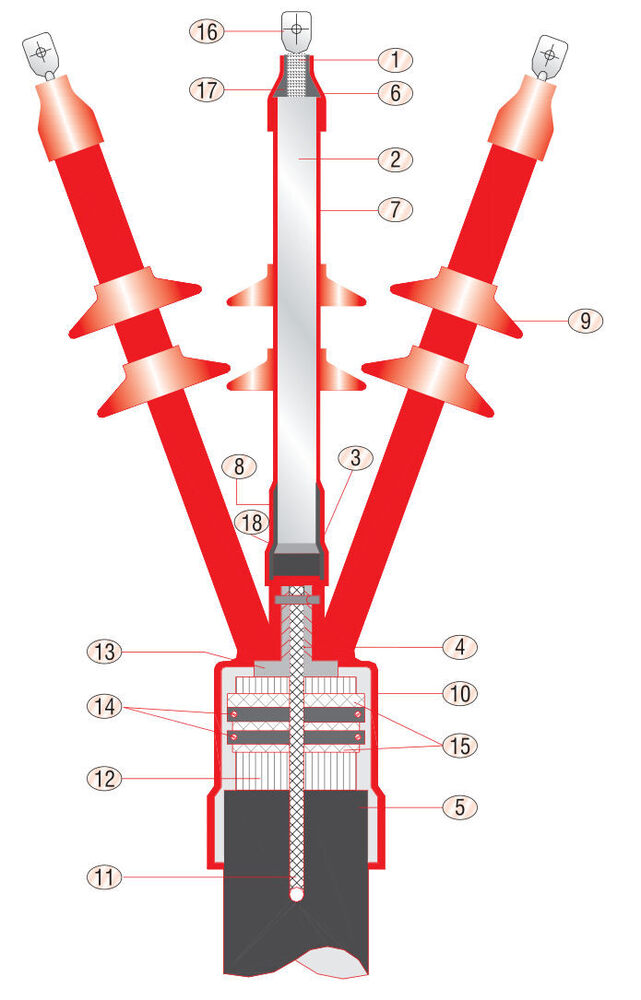

Each core gets a stress control tube, a red non-tracking weather-resistant tube and rain sheds; a non-tracking breakout seals the crutch; terminal sleeves and lug sealing tape seal the lugs. Earthing sets for the armour (tinned copper braid, back-up ring, jubilee clamp) and for the metallic screen (small braid, solder, flux) are included, with terminal lugs, mastics and installation aids. Kits are made for a 600 mm standard tail; special tail lengths are available on request.

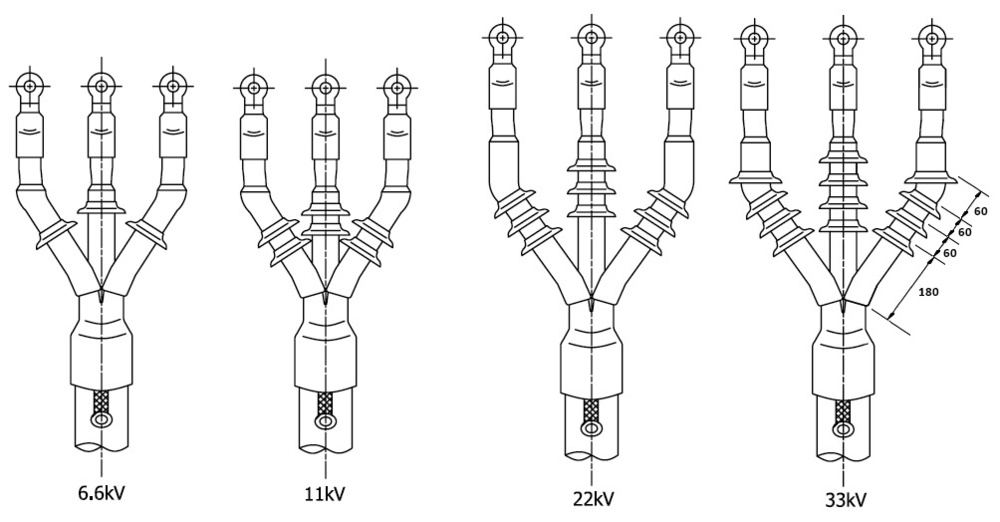

Five kit codes cover cable sizes from 16-35 sq mm to 400-500 sq mm. For 11/11 kV (unearthed) cable, use the 22 kV class kit instead.

The 11 kV kit family (outdoor code GXO-13) was type tested to IEC 60502-4 at VEIKI-VNL, Hungary, in 2023 and found to fulfil the standard (certificate 13222/VNL). Gala's 11 kV terminations and joints carry a DCRP Oman product approval (valid to Feb 2030), and Gala holds POWERGRID and MECON approvals for kits up to 33 kV and an EIL enlistment for kits up to 11 kV.

Installation is with a gas torch, following the illustrated instructions in every kit.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

  • Brand: Gala
  • Product type: Heat shrinkable outdoor termination kit, 3-core cable
  • Material: Heat shrinkable irradiation cross-linked polyolefin tubing, breakout and rain sheds, with stress control and sealing mastics
  • Colour: Red non-tracking tubing and rain sheds; black stress control tubing
  • Voltage rating: 6.35/11 kV system (12 kV equipment class)
  • Size range: 3 x 16-35 sq mm to 3 x 400-500 sq mm
  • Adhesive / sealant: Mastic sealing tape, lug sealing tape and stress control mastic included
  • Standards tested to: IEC 60502-4 (VEIKI-VNL, Hungary, 2023, certificate 13222/VNL, 6/10 (12) kV kit family)
  • Application: Outdoor termination of 3-core XLPE/EPR insulated, shielded cable, armoured or unarmoured
  • Installation: Heat shrink with a gas torch; illustrated instructions in every kit
  • Country of origin: India
  • Cable type: 3-core XLPE or EPR insulated, copper tape or wire screened
  • Tail length: 600 mm standard; special lengths on request
  • Kit contents: Terminal lug (3), terminal sleeve (3), non-tracking weather-resistant tubing (3), stress control tubing (3), rain shed (6), non-tracking cable breakout (1), tinned copper earth braid (1), worm drive clip (2), mastic sealing tape (1 roll), lug sealing tape (3), stress control mastic (3), armour earthing set, screen earthing set, silicone grease, cleaning tissue, nylon string, emery tape, mopping cloth, installation instructions
  • Approvals: DCRP Oman product approval for Gala 11 kV terminations and joints (to Feb 2030); POWERGRID manufacturer approval, kits up to 33 kV (to Feb 2028); MECON vendor registration, kits up to 33 kV (to May 2028); EIL enlistment, kits up to 11 kV (to Jun 2028)
  • Unit of sale: Per kit (one 3-core termination)

Sizes

  • Cable size (sq mm) | Outdoor kit code
  • 3 x 16-35 | GXO-11
  • 3 x 50-95 | GXO-12
  • 3 x 120-185 | GXO-13
  • 3 x 240-300 | GXO-14
  • 3 x 400-500 | GXO-15

Applications: 11 kV distribution, overhead line to cable connections, pole-mounted and outdoor substations, transformer terminations, industrial HT supply, utilities and EPC contractors
