11 kV Indoor Termination Kit for 3 Core XLPE Cable - Heat Shrink

About 11 kV Indoor Termination Kit for 3 Core XLPE Cable - Heat Shrink

The Gala GXE-11 to GXE-15 kits terminate 3-core XLPE or EPR insulated, shielded cable indoors on 6.35/11 kV systems: inside switchgear and ring main unit cable compartments, transformer cable boxes and HT panels. Indoors there is no rain or pollution to shed, so the kit is compact and is supplied without rain sheds; everything else that makes a reliable MV termination is there.

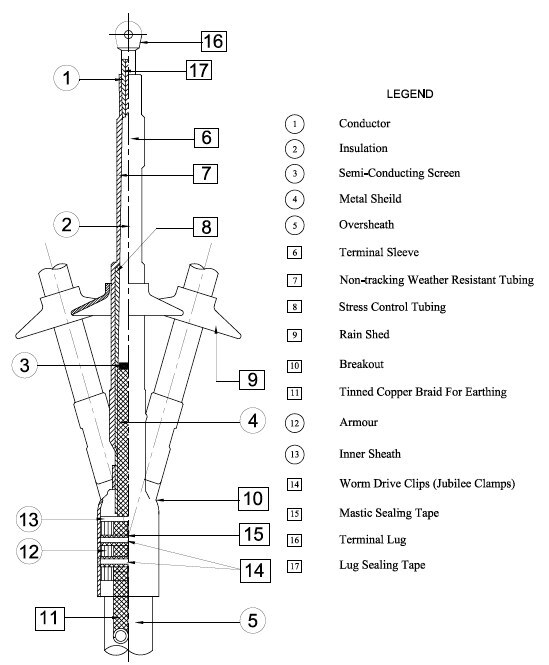

Each core gets a stress control tube to grade the electric field where the cable screen ends, and a non-tracking tube over the insulation; a non-tracking breakout seals the crutch; terminal sleeves and lug sealing tape seal the lugs. Armour and screen earthing sets, terminal lugs, mastics and installation aids are included. The standard tail length is 450 mm; special lengths are available on request.

Five kit codes cover cable sizes from 16-35 sq mm to 400-500 sq mm. For 11/11 kV (unearthed) cable, use the 22 kV class kit.

The 11 kV kit family (indoor code GXE-13) was type tested to IEC 60502-4 at VEIKI-VNL, Hungary, in 2023 and found to fulfil the standard (certificate 13222/VNL). Gala's 11 kV terminations and joints carry a DCRP Oman product approval (valid to Feb 2030); Gala also holds POWERGRID and MECON approvals for kits up to 33 kV and an EIL enlistment for kits up to 11 kV.

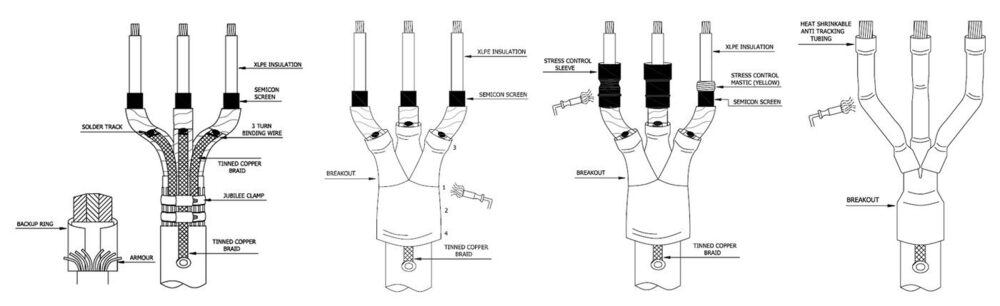

Installation is with a gas torch, following the illustrated instructions in every kit.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Heat shrinkable indoor termination kit, 3-core cable
• Material: Heat shrinkable irradiation cross-linked polyolefin tubing and breakout, with stress control and sealing mastics
• Colour: Red non-tracking tubing; black stress control tubing
• Voltage rating: 6.35/11 kV system (12 kV equipment class)
• Size range: 3 x 16-35 sq mm to 3 x 400-500 sq mm
• Adhesive / sealant: Mastic sealing tape, lug sealing tape and stress control mastic included
• Standards tested to: IEC 60502-4 (VEIKI-VNL, Hungary, 2023, certificate 13222/VNL, 6/10 (12) kV kit family)
• Application: Indoor termination of 3-core XLPE/EPR insulated, shielded cable, armoured or unarmoured, in switchgear, RMU and transformer cable boxes
• Installation: Heat shrink with a gas torch; illustrated instructions in every kit
• Country of origin: India
• Cable type: 3-core XLPE or EPR insulated, copper tape or wire screened
• Tail length: 450 mm standard; special lengths on request
• Rain sheds: None (indoor kit)
• Kit contents: Terminal lug (3), terminal sleeve (3), non-tracking tubing (3), stress control tubing (3), non-tracking cable breakout (1), tinned copper earth braid (1), worm drive clip (2), mastic sealing tape (1 roll), lug sealing tape (3), stress control mastic (3), armour earthing set, screen earthing set, silicone grease, cleaning tissue, nylon string, emery tape, mopping cloth, installation instructions
• Approvals: DCRP Oman product approval for Gala 11 kV terminations and joints (to Feb 2030); POWERGRID manufacturer approval, kits up to 33 kV (to Feb 2028); MECON vendor registration, kits up to 33 kV (to May 2028); EIL enlistment, kits up to 11 kV (to Jun 2028)
• Unit of sale: Per kit (one 3-core termination)

Sizes

• Cable size (sq mm) | Indoor kit code
• 3 x 16-35 | GXE-11
• 3 x 50-95 | GXE-12
• 3 x 120-185 | GXE-13
• 3 x 240-300 | GXE-14
• 3 x 400-500 | GXE-15

Applications: 11 kV switchgear and RMU cable connections, transformer cable boxes, HT panels, industrial and commercial substations, utilities and EPC contractors
