22 kV Termination Kit for 3 Core XLPE Cable - Indoor and Outdoor

About 22 kV Termination Kit for 3 Core XLPE Cable - Indoor and Outdoor

The Gala GXO/E-1524 kits terminate 3-core XLPE or EPR insulated, shielded cable in the 24 kV equipment class. One kit range covers three common cable ratings: 12.7/22 kV, 8.7/15 kV and 11/11 kV, which is the right class for unearthed 11 kV networks. Outdoor kits (GXO) are for poles, outdoor substations and transformer bushings; indoor kits (GXE) are for switchgear, RMU and transformer cable boxes.

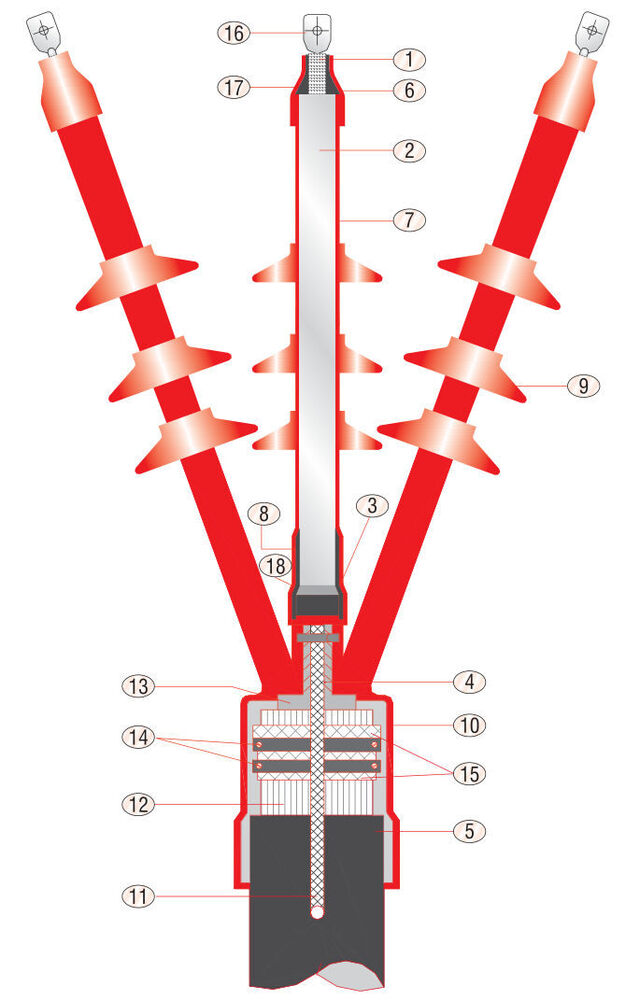

Each core gets a stress control tube to grade the field at the screen cut and a red non-tracking weather-resistant tube; rain sheds increase creepage on outdoor kits, and indoor kits carry one rain shed per core. A non-tracking breakout seals the crutch, terminal sleeves and lug sealing tape seal the lugs, and armour and screen earthing sets, terminal lugs, mastics and installation aids complete the kit. Standard tail lengths are 800 mm outdoor and 550 mm indoor; special lengths are available on request.

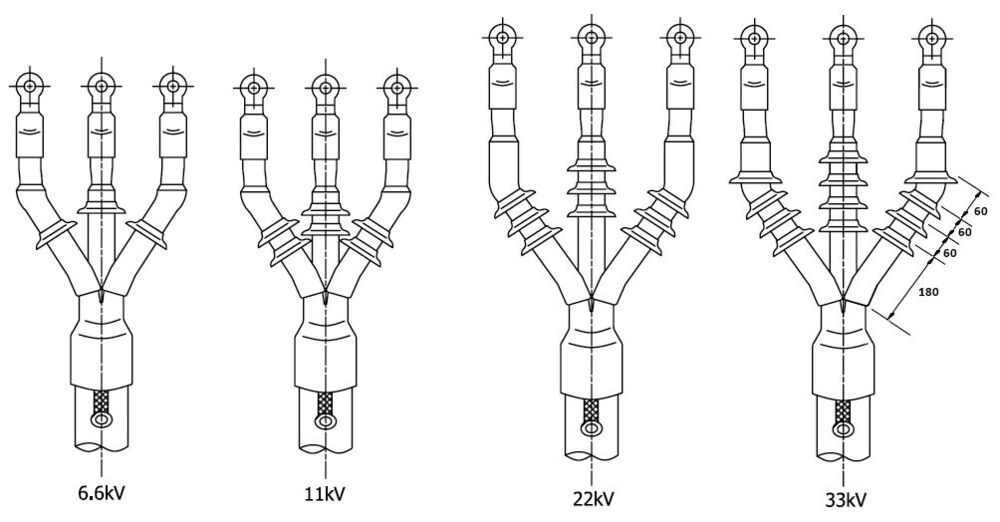

Four kit codes cover cable sizes from 16-50 sq mm to 240-400 sq mm, each in an outdoor and an indoor version.

Gala holds a POWERGRID manufacturer approval and a MECON vendor registration for cable jointing and termination kits up to 33 kV.

Installation is with a gas torch, following the illustrated instructions supplied in every kit. Typical buyers are utilities' contractors, EPC firms and industrial plants running 22 kV or unearthed 11 kV networks.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Heat shrinkable termination kit, 3-core cable, indoor or outdoor
• Material: Heat shrinkable irradiation cross-linked polyolefin tubing, breakout and rain sheds, with stress control and sealing mastics
• Colour: Red non-tracking tubing and rain sheds; black stress control tubing
• Voltage rating: 24 kV equipment class: 12.7/22 kV, 8.7/15 kV and 11/11 kV systems
• Size range: 3 x 16-50 sq mm to 3 x 240-400 sq mm
• Adhesive / sealant: Mastic sealing tape, lug sealing tape and stress control mastic included
• Application: Indoor and outdoor termination of 3-core XLPE/EPR insulated, shielded cable, armoured or unarmoured
• Installation: Heat shrink with a gas torch; illustrated instructions in every kit
• Country of origin: India
• Cable type: 3-core XLPE or EPR insulated, copper tape or wire screened
• Tail length: 800 mm outdoor, 550 mm indoor (standard); special lengths on request
• Rain sheds: Included on outdoor kits; indoor kits carry 1 rain shed per core
• Kit contents: Terminal lug (3), terminal sleeve (3), non-tracking weather-resistant tubing (3), stress control tubing (3), rain sheds, non-tracking cable breakout (1), tinned copper earth braid (1), worm drive clip (2), mastic sealing tape (1 roll), lug sealing tape (3), stress control mastic (3), armour earthing set, screen earthing set, silicone grease, cleaning tissue, nylon string, emery tape, mopping cloth, installation instructions
• Approvals: POWERGRID manufacturer approval, cable jointing and termination kits up to 33 kV (to Feb 2028); MECON vendor registration, kits up to 33 kV (to May 2028)
• Unit of sale: Per kit (one 3-core termination)

Sizes

• Cable size (sq mm) | Outdoor kit code | Indoor kit code
• 3 x 16-50 | GXO-21 | GXE-21
• 3 x 70-120 | GXO-22 | GXE-22
• 3 x 150-185 | GXO-23 | GXE-23
• 3 x 240-400 | GXO-24 | GXE-24

Applications: 22 kV distribution, unearthed 11 kV networks, outdoor and indoor substations, transformer and switchgear cable connections, industrial HT supply, utilities and EPC contractors
