PILC Cable Termination Kit 3 Core 11 kV to 33 kV - Heat Shrink

Get a Price/Quote

PILC Cable Termination Kit 3 Core 11 kV to 33 kV - Heat Shrink Specification

Usage & Applications
Indoor and outdoor termination of 3-core paper insulated lead covered cable, armoured, belted or screened

Install Type
Heat shrink with a gas torch; illustrated instructions in every kit

Product Type
Heat shrinkable termination kit for 3-core PILC cable, indoor or outdoor

Voltage
Medium Voltage

Rated Voltage
11 kV (12 kV class), up to 22 kV (24 kV class), 33 kV (36 kV class)

Material
Heat shrinkable irradiation cross-linked polyolefin sleeves, oil barrier sleeves and rain sheds, with stress control and sealing mastics

Size
16 sq mm to 500 sq mm (by series; see size table)

PILC Cable Termination Kit 3 Core 11 kV to 33 kV - Heat Shrink Trade Information

Certifications
POWERGRID manufacturer approval, cable jointing and termination kits up to 33 kV (to Feb 2028); MECON vendor registration, kits up to 33 kV (to May 2028); EIL enlistment, kits up to 11 kV (to Jun 2028)

About PILC Cable Termination Kit 3 Core 11 kV to 33 kV - Heat Shrink

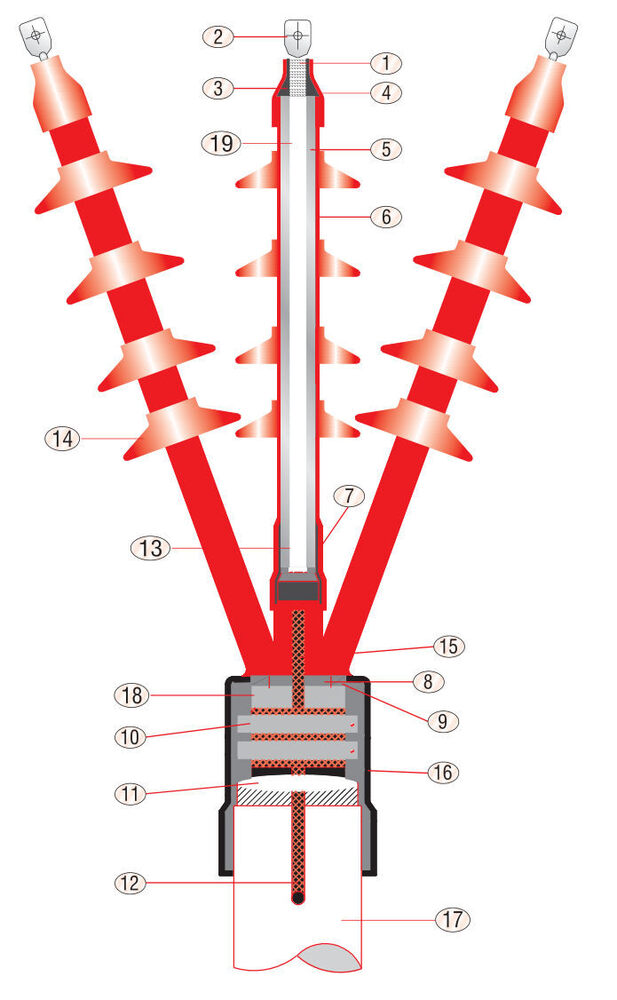

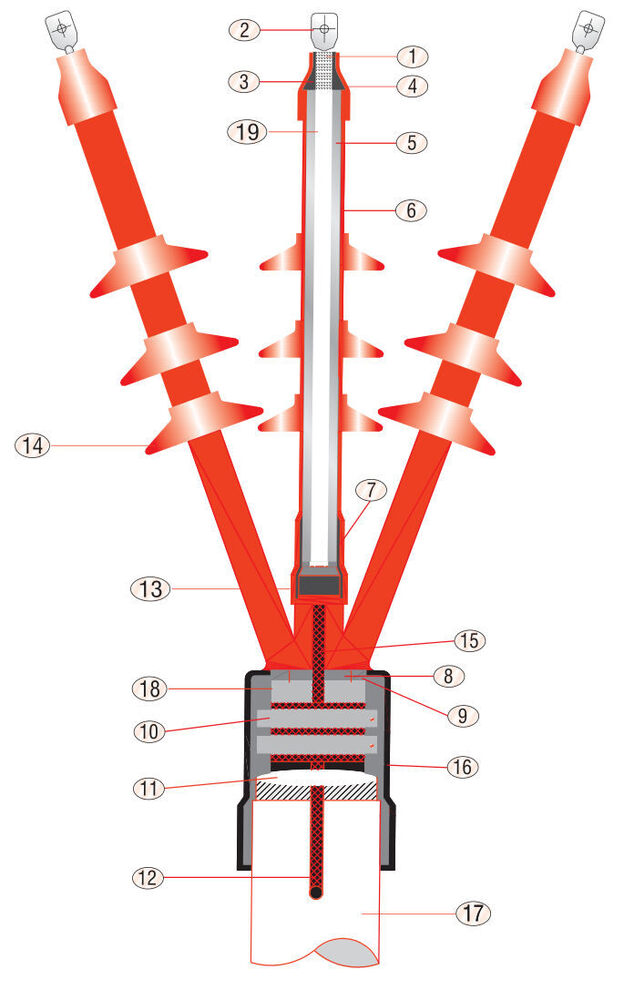

Many utility networks still run paper insulated lead covered (PILC) cable, and it needs a different termination from XLPE: the impregnating compound must be held back from the new insulation, and the lead sheath must be bonded to the armour. The Gala GPO/E kits do this with heat shrinkable oil barrier sleeves on each core and a belting oil barrier sleeve at the crutch, a plumbed earth connection from lead sheath to armour, and glass cushion tape.

Over that, each core gets a stress control sleeve (and, at 24 and 36 kV, stress control mastic), a non-tracking weather-resistant sleeve, a terminal sleeve and a lug sealed with mastic. Outdoor kits (GPO) carry rain sheds; indoor kits (GPE) are supplied without sheds at 11 kV and with one shed per core at 22 kV. Terminal lugs, earthing material and installation aids are included in every kit.

Three series cover the voltage classes: GPO/E-1112 for 11 kV (16 to 500 sq mm, 600 mm outdoor and 450 mm indoor tails), GPO/E-1524 for screened PILC up to 22 kV (25 to 500 sq mm, 800 and 550 mm tails) and GPO/E-3336 for screened PILC at 33 kV (35 to 400 sq mm).

Gala holds a POWERGRID manufacturer approval and a MECON vendor registration for cable jointing and termination kits up to 33 kV, and an EIL enlistment for kits up to 11 kV.

Installation is with a gas torch, following the instructions in every kit.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

Brand: Gala
Product type: Heat shrinkable termination kit for 3-core PILC cable, indoor or outdoor
Material: Heat shrinkable irradiation cross-linked polyolefin sleeves, oil barrier sleeves and rain sheds, with stress control and sealing mastics
Voltage rating: 11 kV (12 kV class), up to 22 kV (24 kV class), 33 kV (36 kV class)
Size range: 16 sq mm to 500 sq mm (by series; see size table)
Adhesive / sealant: Lug sealing mastic and mastic sealing tape included; adhesive-lined terminal sleeves on the 22 and 33 kV kits
Application: Indoor and outdoor termination of 3-core paper insulated lead covered cable, armoured, belted or screened
Installation: Heat shrink with a gas torch; illustrated instructions in every kit
Country of origin: India
Tail length: 11 kV 600 mm outdoor / 450 mm indoor; 22 kV 800 mm outdoor / 550 mm indoor; special lengths on request
Rain sheds: Outdoor kits include rain sheds; indoor 11 kV kits none; indoor 22 kV kits 1 per core
Kit contents (11 kV): Terminal lug (3), lug sealing mastic (3), terminal sleeve (3), oil barrier sleeve (3), non-tracking weather-resistant sleeve (3), stress control sleeve (3), belting oil barrier sleeve (1), glass cushion tape (1), cable breakout (1), earthing connection lead (1), earthing plumb (1 set), rain sheds (6, outdoor), mastic sealing tape, cleaning solvent, emery sheet, mopping cloth, installation instructions
Kit contents (22 and 33 kV, additional): Stress control mastic, heat shrinkable conducting breakout, tinned copper main earthing braid, insulation shield continuity set, worm drive clips (optional)
Approvals: POWERGRID manufacturer approval, cable jointing and termination kits up to 33 kV (to Feb 2028); MECON vendor registration, kits up to 33 kV (to May 2028); EIL enlistment, kits up to 11 kV (to Jun 2028)
Unit of sale: Per kit (one 3-core termination)

Sizes

Series | Cable size (sq mm) | Outdoor code | Indoor code
11 kV (GPO/E-1112) | 16-35 | GPO-11 | GPE-11
11 kV (GPO/E-1112) | 50-95 | GPO-12 | GPE-12
11 kV (GPO/E-1112) | 120-185 | GPO-13 | GPE-13
11 kV (GPO/E-1112) | 240-400 | GPO-14 | GPE-14
11 kV (GPO/E-1112) | 500 | GPO-15 | GPE-15
22 kV (GPO/E-1524) | 25-50 | GPO-21 | GPE-21
22 kV (GPO/E-1524) | 70-120 | GPO-22 | GPE-22
22 kV (GPO/E-1524) | 150-240 | GPO-23 | GPE-23
22 kV (GPO/E-1524) | 300-500 | GPO-24 | GPE-24
33 kV (GPO/E-3336) | 35-70 | GPO-31 | GPE-31
33 kV (GPO/E-3336) | 95-150 | GPO-32 | GPE-32
33 kV (GPO/E-3336) | 185-300 | GPO-33 | GPE-33
33 kV (GPO/E-3336) | 400 | GPO-34 | GPE-34

Applications: Utility distribution networks with PILC cable, termination of legacy paper cable at substations and transformers, cable replacement and refurbishment projects, utilities' contractors

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Cable Jointing & Termination Kits Category

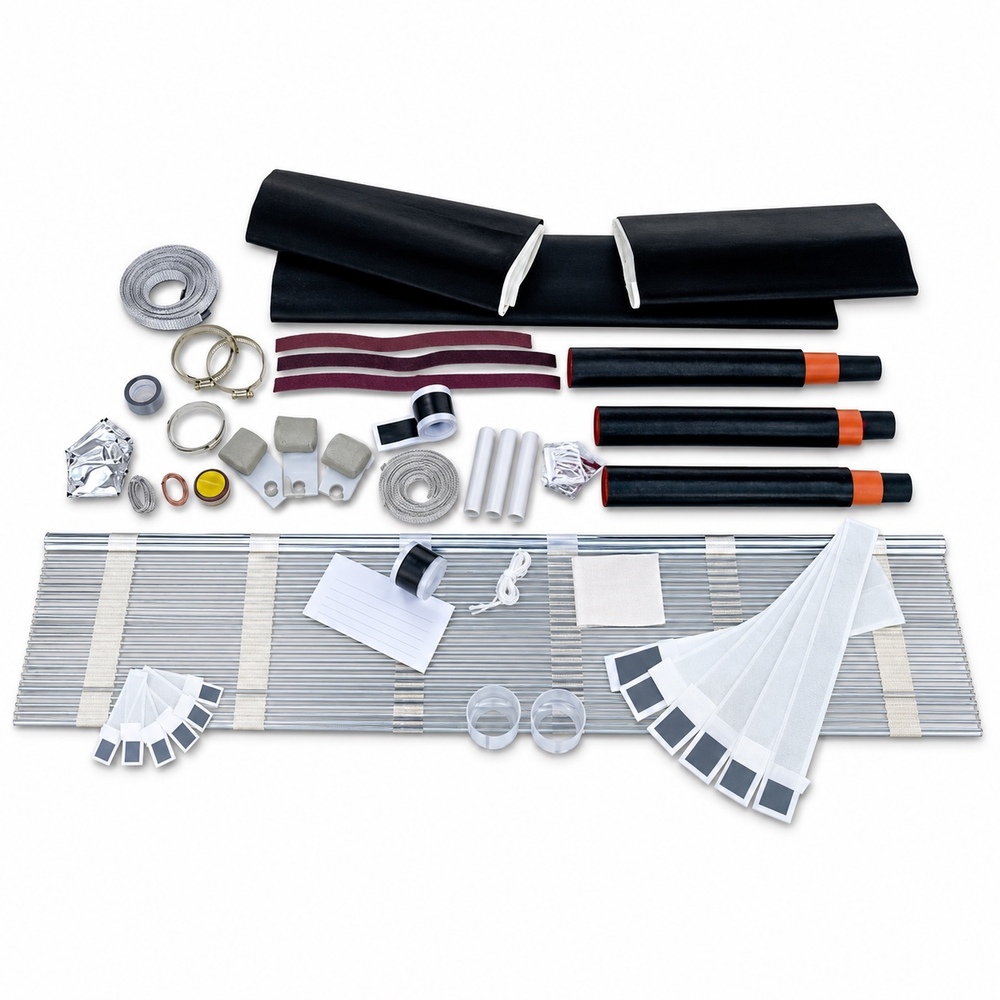

33 kV Straight Through Joint Kit for 3 Core XLPE Cable - Heat Shrink
