Aerial Bunched Cable (ABC) Termination and Joint Kit 11 kV to 33 kV

About Aerial Bunched Cable (ABC) Termination and Joint Kit 11 kV to 33 kV

Medium voltage aerial bunched cable (ABC) carries 11, 22 or 33 kV on poles as screened single-core cables bunched around a messenger. Where the overhead ABC run ends at a transformer, switch or underground cable, or where two lengths must be joined, each core needs a proper MV termination or joint. Gala makes both as heat shrinkable kits, one kit per core.

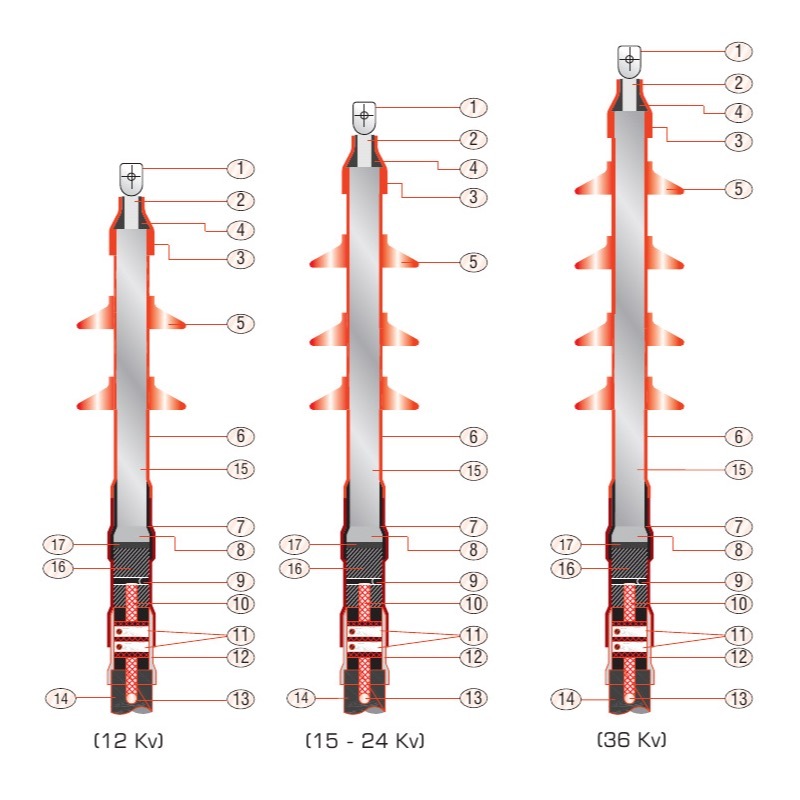

The GABO (outdoor) and GABI (indoor) termination kits contain a terminal lug, adhesive-lined terminal sleeve, lug sealing mastic, stress control sleeve and stress control mastic to grade the field at the screen cut, an anti-tracking sleeve, rain sheds (two, three or four by voltage class), a constant force spring roll or solder tack and copper braid for screen earthing, with installation aids and illustrated instructions.

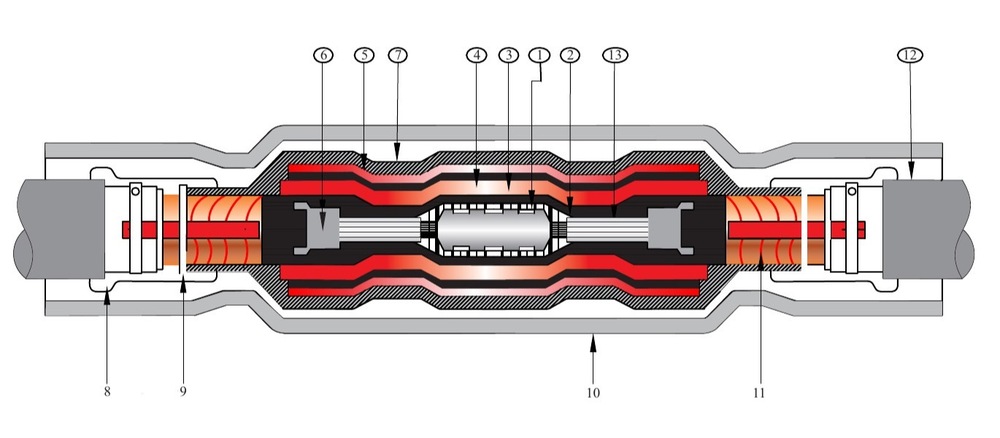

The GABJ joint kits contain an inline ferrule, stress control mastic and tubing, insulating tubing, dual wall tubing, red insulating mastic tape, copper woven mesh tape for the screen, spring clamps or solder, and a heat shrinkable outer jacketing sleeve.

Kits are offered in three voltage classes: 12 kV (for 6.35/11 kV), 24 kV (for up to 12.7/22 kV) and 36 kV (for 19/33 kV), each in four cable-size bands. At 11 kV the range is 16-50 sq mm to 400 sq mm.

These kits are for MV ABC only, not for LT (1.1 kV) ABC.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Heat shrinkable termination and straight through joint kits for MV aerial bunched cable
• Material: Heat shrinkable irradiation cross-linked polyolefin sleeves, tubing and rain sheds, with stress control and sealing mastics
• Voltage rating: 12 kV class (6.35/11 kV), 24 kV class (up to 12.7/22 kV), 36 kV class (19/33 kV)
• Size range: 11 kV: 16-50 sq mm to 400 sq mm; 22 and 33 kV: on request
• Adhesive / sealant: Adhesive-lined terminal sleeve, lug sealing mastic, stress control mastic and red insulating mastic tape included
• Application: Terminating and jointing single-core screened MV aerial bunched cable
• Installation: Heat shrink with a gas torch; illustrated instructions in every kit
• Country of origin: India
• Rain sheds (outdoor termination): 2 at 12 kV, 3 at 24 kV, 4 at 36 kV
• Unit of sale: Per kit (one core)

Sizes

• 11 kV (12 kV class), both Gala sheets agree:
• Cable size (sq mm) | Indoor termination | Outdoor termination | Joint
• 16-50 | GABI-11 | GABO-11 | GABJ-11
• 70-120 | GABI-12 | GABO-12 | GABJ-12
• 150-300 | GABI-13 | GABO-13 | GABJ-13
• 400 | GABI-14 | GABO-14 | GABJ-14
• 22 kV (24 kV class) kits are coded GABI, GABO and GABJ-21 to -24 and 33 kV (36 kV class) kits GABI, GABO and GABJ-31 to -34; cable-size bands for these two classes on request.

Applications: MV aerial bunched cable networks, rural and forest-area distribution, overhead-to-underground transitions, pole-mounted transformer connections, utilities' contractors
