Cold Shrink Breakout for 2 Core and 4 Core Cable (GCEB)

About Cold Shrink Breakout for 2 Core and 4 Core Cable (GCEB)

Where a multi-core cable is terminated, its cores fan out of the sheath at the crutch, and that is where moisture gets in. The Gala cold shrink breakout (GCEB) seals the crutch without heat: a black EPDM rubber body with one finger per core, expanded at the factory onto removable spiral support cores.

Installation needs no torch and no tools. Cut the cable end straight, remove any serving and armour, clean and degrease the sheath, slide the breakout over the cable end with one core through each finger, then unwind the spiral core from the body and then from each finger. The rubber recovers onto the sheath and the cores and forms the seal. No mastic or tape is needed. The compound contains no chloride or sulphur.

Four sizes are made: two for 2-core cable and two for 4-core cable, covering cable sheath diameters from 17 mm to 50 mm and core diameters from 10 mm to 17 mm. Pick the size whose body range covers the cable's outside diameter and whose finger range covers the core diameter.

It is a natural partner to Gala's cold shrink tube for torch-free LV terminations.

Typical buyers are electrical contractors, panel builders and maintenance teams terminating multi-core LV cable where open flame is unwelcome.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Cold shrink cable breakout (crutch seal)
• Material: EPDM rubber, free of chloride and sulphur, on removable PP spiral support cores
• Colour: Black
• Size range: Body (cable OD) 17 to 50 mm; fingers (core OD) 10 to 17 mm
• Application: Sealing the crutch of 2-core and 4-core cable at terminations
• Installation: Cold applied; unwind the spiral cores from body and fingers; no heat, tools, mastic or tape
• Country of origin: India
• Number of cores: 2 (GCEB2) or 4 (GCEB4)
• Unit of sale: Per piece

Sizes

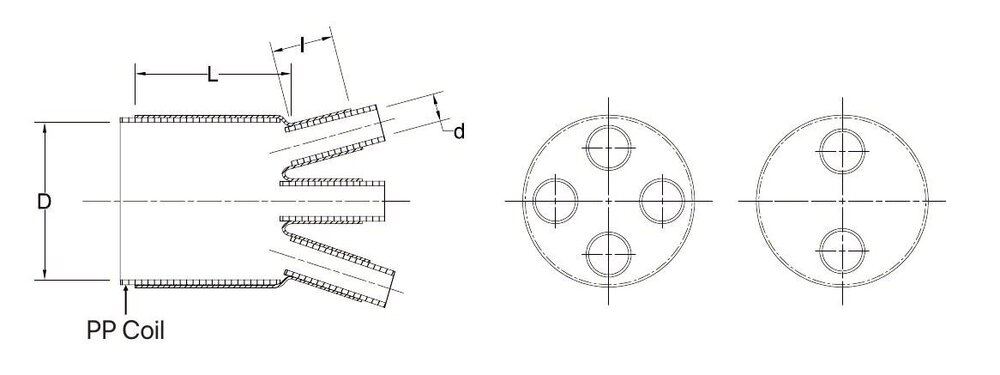

• Code | Cores | Body Ds supplied (min) | Body range | Finger ds supplied (min) | Finger range | Body length Lf (max) | Finger length lf (max)
• GCEB2-1 | 2 | 47 | 17-30 | 20 | 10-14 | 50 | 30
• GCEB2-2 | 2 | 65 | 23-45 | 25 | 12-17 | 65 | 30
• GCEB4-1 | 4 | 60 | 24-40 | 20 | 10-14 | 50 | 30
• GCEB4-2 | 4 | 70 | 32-50 | 25 | 12-17 | 65 | 30
• All in mm (diameters are cable or core outside diameters).

Applications: LV cable terminations at panels, switchboards and equipment, multi-core cable crutch sealing, industrial maintenance, flame-restricted sites, electrical contractors
