Cold Shrink Tube - Silicone Rubber for LT Cable Joints (GCTS)

About Cold Shrink Tube - Silicone Rubber for LT Cable Joints (GCTS)

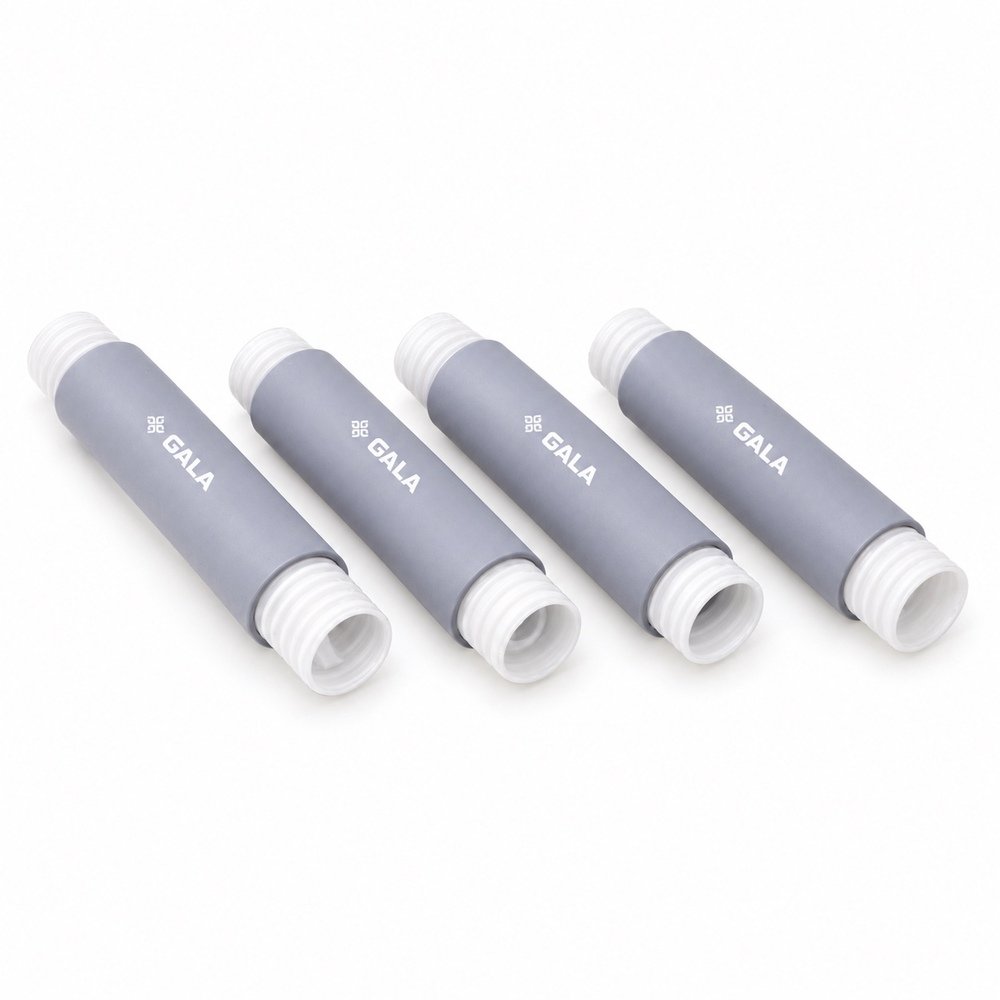

Gala silicone cold shrink tube (GCTS) is an open-ended silicone rubber sleeve, expanded at the factory and held on a removable spiral core. Like Gala's EPDM tube, it insulates and seals inline connectors and terminal lugs on low voltage cable up to 1.1 kV, copper or aluminium conductor, but in silicone rubber. The compound contains no chloride or sulphur.

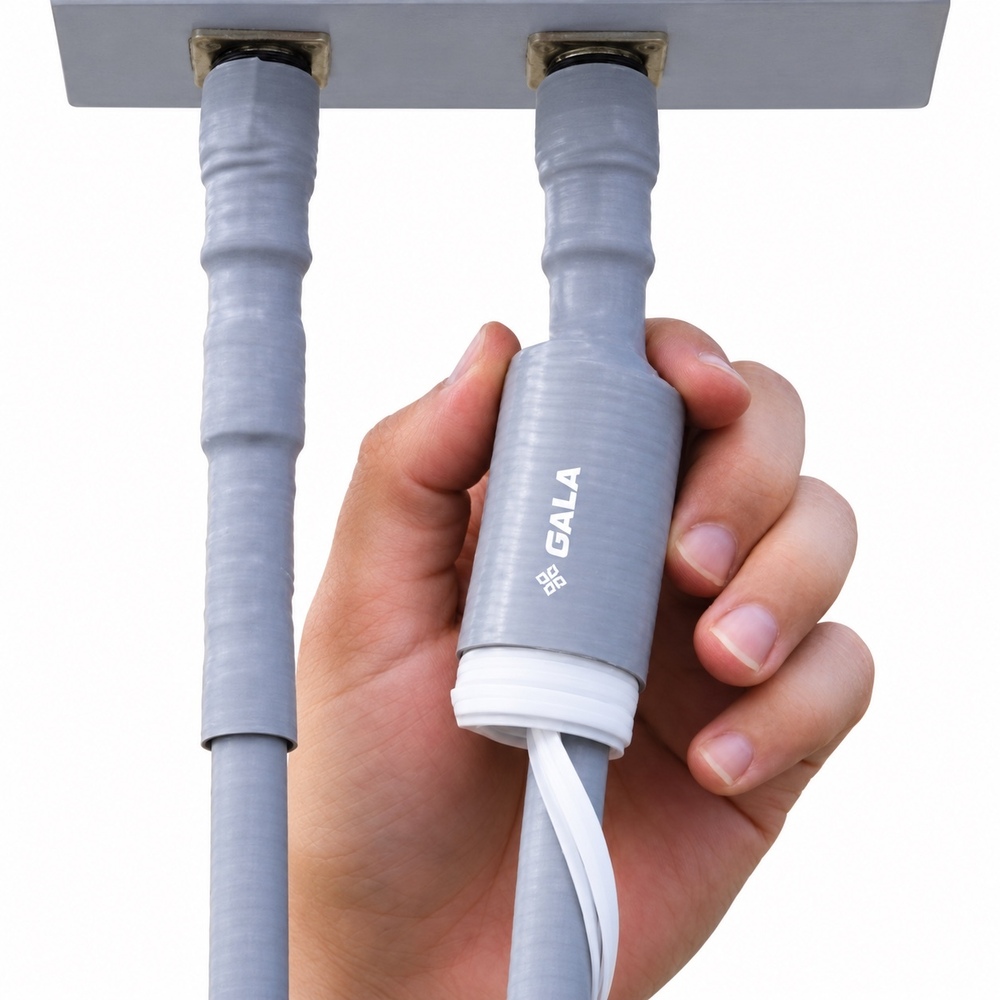

Installation needs no heat and no tools. Slide the tube onto the cable, make the connection or fit the lug, centre the tube over the area to be sealed and pull the spiral core out. As the core unwinds, the tube recovers onto the cable and connector and forms a water-resistant seal.

Each tube is 500 mm long. Nine sizes cover cable and connector outside diameters from 8 mm to 72 mm, with a 2.1 mm wall on the smaller sizes and 3.0 mm on the larger.

Typical buyers are electrical contractors, maintenance teams and cable accessory distributors.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Cold shrink tube (open ended), silicone
• Material: Silicone rubber, free of chloride and sulphur, on a removable PP spiral core
• Colour: Grey
• Voltage rating: Up to 1.1 kV (low voltage)
• Size range: Application range 8 to 72 mm; 9 sizes; length 500 mm
• Wall type / thickness: Recovered wall 2.1 mm (20/7 to 53/20) and 3.0 mm (65/24 to 80/30), +/-10 %
• Application: Insulating and sealing inline connectors and terminal lugs on LV cable, copper or aluminium conductors
• Installation: Cold applied; unwind the spiral core; no heat or tools
• Country of origin: India
• Unit of sale: Per piece (500 mm tube)

Sizes

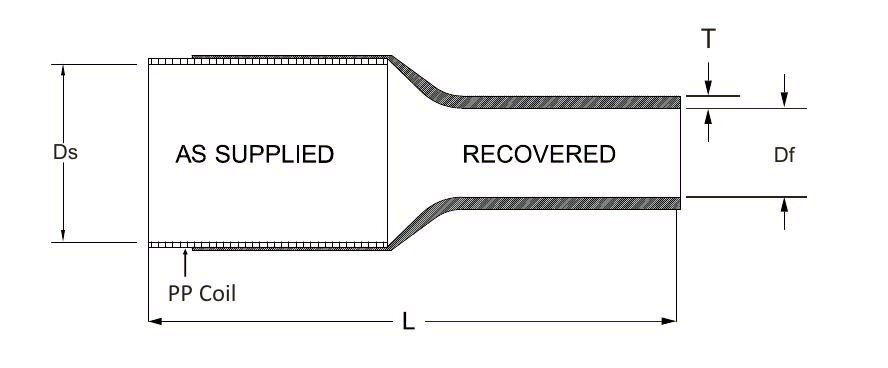

• Code | Ds supplied (min) | Df recovered (max) | Tf wall | Application range
• GCTS 20/7 | 20 | 7 | 2.1 | 8-15
• GCTS 25/9 | 25 | 9 | 2.1 | 10-20
• GCTS 35/11 | 35 | 11 | 2.1 | 12-30
• GCTS 45/16 | 45 | 16 | 2.1 | 18-38
• GCTS 53/20 | 53 | 20 | 2.1 | 22-46
• GCTS 65/24 | 65 | 24 | 3.0 | 26-53
• All in mm; length 500 mm.

Applications: LV cable jointing and lug sealing, panel and switchboard wiring, industrial maintenance, flame-restricted sites, electrical contractors
