Cold Shrink Cable End Cap - EPDM Rubber (GCCE)

About Cold Shrink Cable End Cap - EPDM Rubber (GCCE)

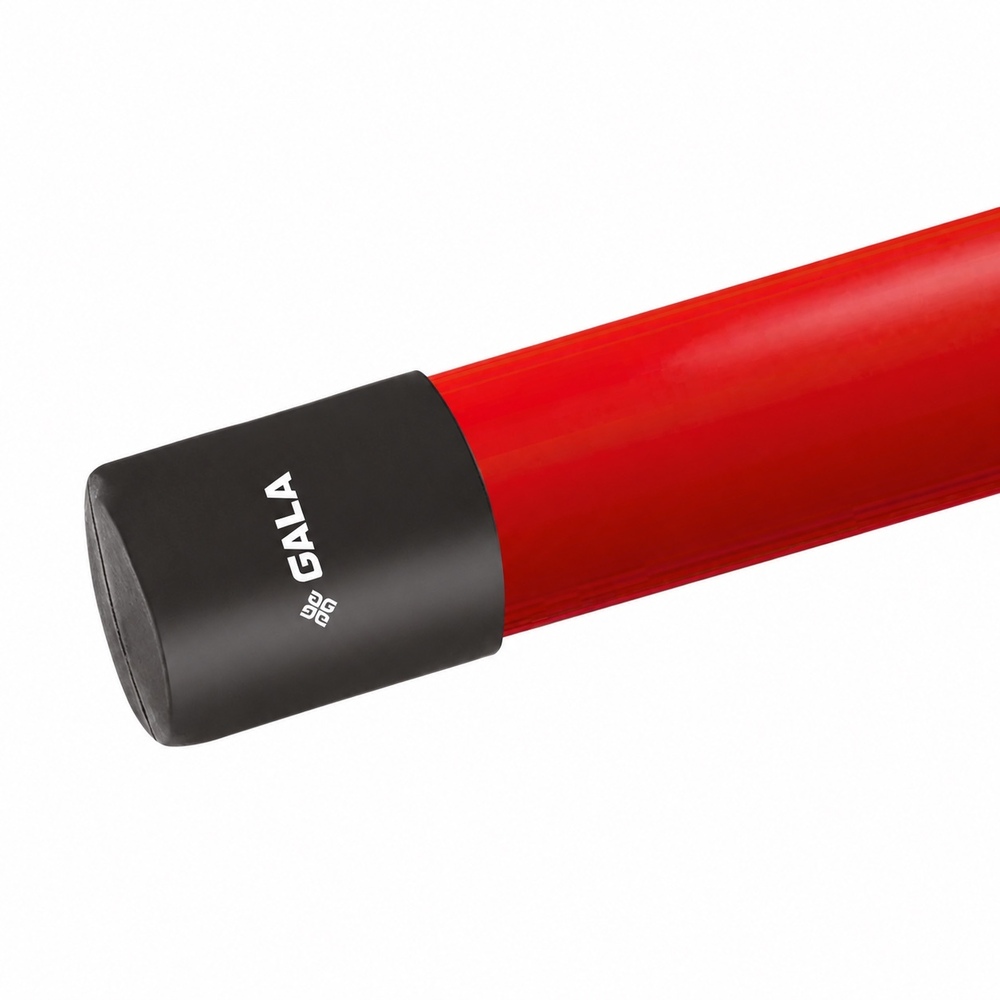

The Gala cold shrink end cap (GCCE) seals the cut end of a power or control cable against water and moisture, for cables in storage, on drums, awaiting termination or left spare in a trench. It is a closed-ended black EPDM rubber cap that is expanded at the factory onto a removable spiral support core.

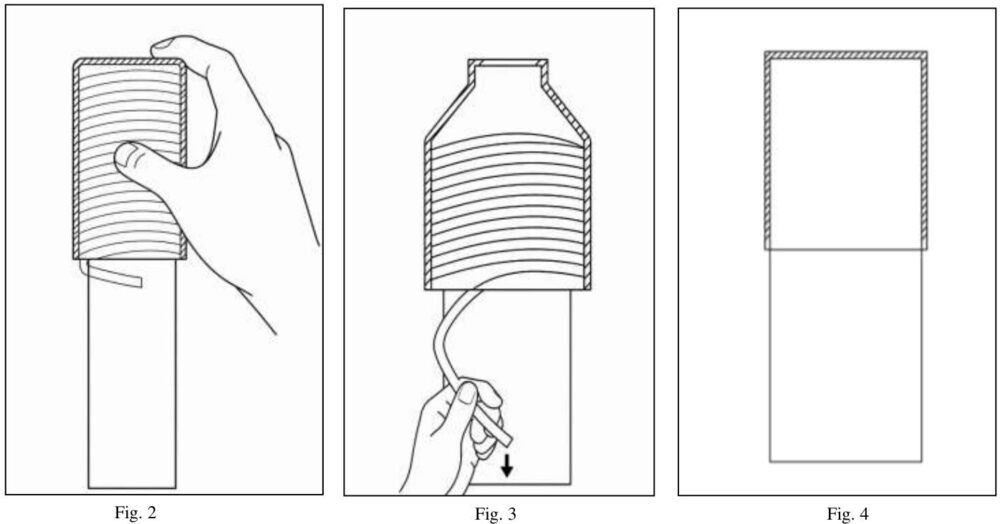

Fitting needs no torch, no tools, no mastic or tape, and no special training, which makes it the natural choice where open flame is not allowed or not practical. Cut the cable end square, remove any serving and armour, clean and degrease the sheath, place the cap over the end, then pull and unwind the spiral core. As the core comes out, the rubber recovers onto the cable and grips it. The used core is then discarded under local recycling rules.

The cap works on the common cable jackets: XLPE, PVC, PILC and rubber sheathed cable. Five sizes cover cable outside diameters from 13 mm to 80 mm; choose the size whose application range contains the cable's outside diameter.

A version with a built-in relief valve for de-gassing cables in storage is also made (see the de-gassing end cap listing).

Typical buyers are cable manufacturers and stockists, contractors, utilities and plant maintenance teams.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Cold shrink cable end cap (closed end)
• Material: EPDM rubber, on a removable PP spiral support core
• Colour: Black
• Size range: Cable outside diameter 13 to 80 mm (5 sizes)
• Wall type / thickness: Recovered wall 3.3 to 3.4 mm min
• Application: Sealing cable ends against water and moisture; XLPE, PVC, PILC and rubber-sheathed cable
• Installation: Cold applied; place over the cable end and unwind the spiral core; no heat, tools, mastic or tape
• Country of origin: India
• Unit of sale: Per piece

Sizes

• Code | Ds supplied (min) | Df recovered (max) | Lf recovered length (min) | Tf wall (min) | Cable OD range
• GCCE-01 | 25 | 12 | 60 | 3.3 | 13-20
• GCCE-02 | 35 | 16 | 75 | 3.4 | 17-30
• GCCE-03 | 45 | 22 | 80 | 3.4 | 23-38
• GCCE-04 | 55 | 22 | 80 | 3.4 | 23-48
• GCCE-05 | 90 | 45 | 100 | 3.4 | 46-80
• All in mm.

Applications: Cable drums in storage and transport, spare and unterminated cable ends, cable laying and installation projects, flame-restricted sites, cable manufacturers and stockists, utilities, industrial maintenance
