Cold Shrink Tube - EPDM Rubber for LT Cable Joints (GCTE)

About Cold Shrink Tube - EPDM Rubber for LT Cable Joints (GCTE)

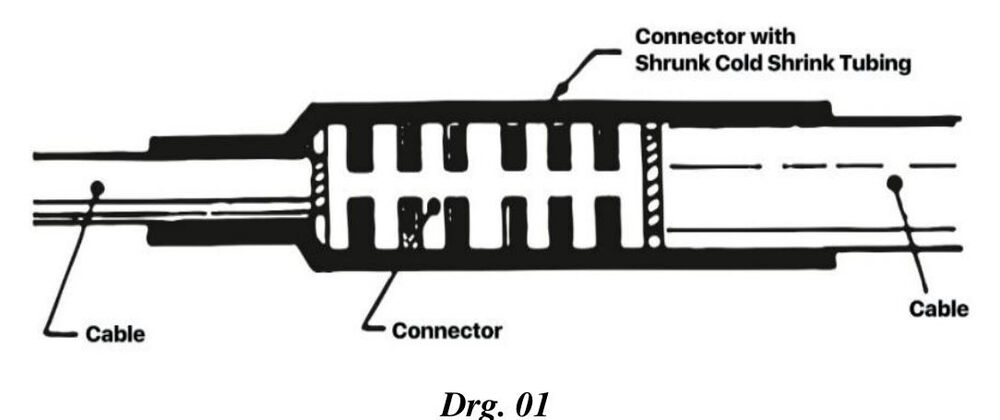

Gala cold shrink tube (GCTE) is an open-ended black EPDM rubber sleeve, expanded at the factory and held on a removable spiral core. It insulates and seals inline cable connectors and terminal lugs on low voltage cable up to 1.1 kV, copper or aluminium conductor, wherever a torch is unwelcome or a fast, consistent result matters.

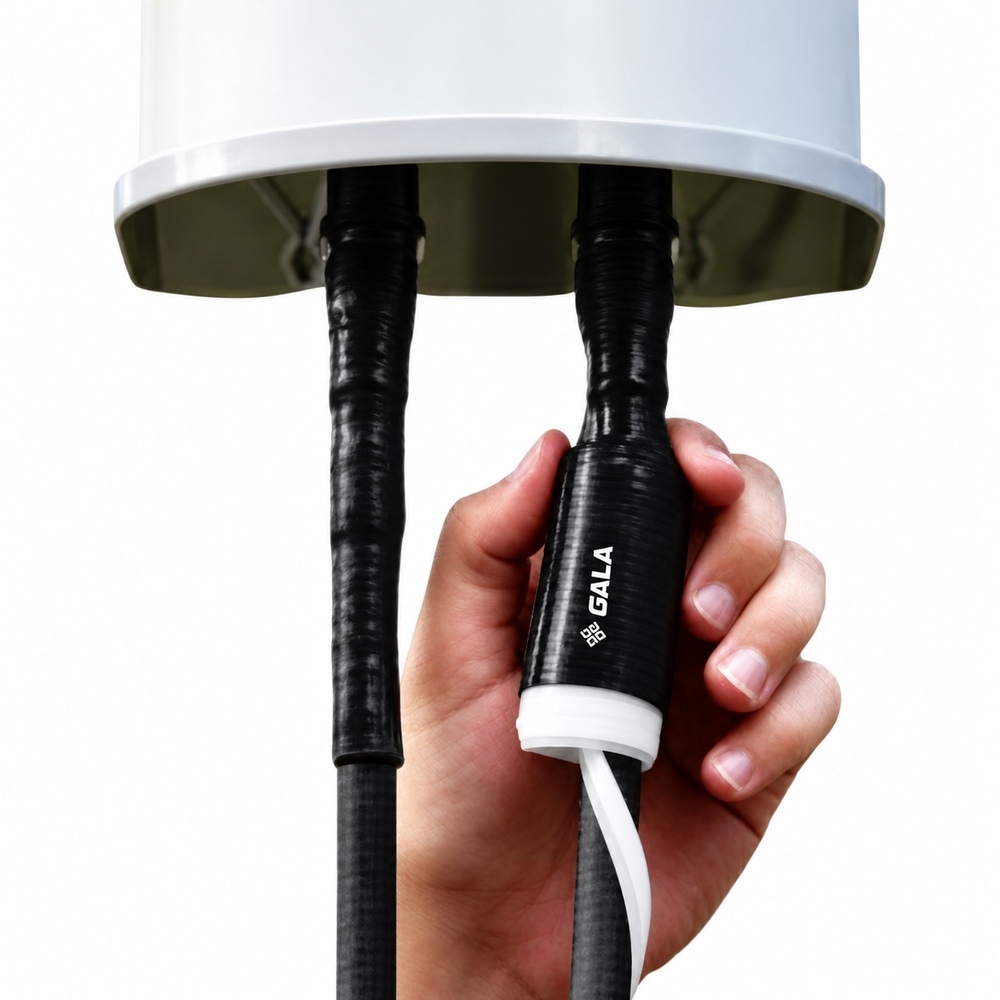

Installation is quick and needs no heat, tools, mastic or tape. Slide the tube onto the cable, make the connection or fit the lug, centre the tube over the area to be sealed, then pull the core out counter-clockwise. As the core unwinds, the rubber contracts onto the cable and connector and forms a tight, water-resistant seal. The EPDM compound contains no chloride or sulphur.

Each tube is 500 mm long. Nine standard sizes cover cable and connector outside diameters from 8 mm to 141 mm, and three high shrink ratio sizes with a thicker wall take a wider range per tube for connectors much larger than the cable. Pick the size whose application range covers both the cable and the connector diameter.

A silicone version (GCTS) is also made (see the silicone cold shrink tube listing).

Typical buyers are electrical contractors, panel and plant maintenance teams and cable accessory distributors.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Cold shrink tube (open ended)
• Material: EPDM rubber, free of chloride and sulphur, on a removable PP spiral core
• Colour: Black
• Voltage rating: Up to 1.1 kV (low voltage)
• Size range: Application range 8 to 141 mm; 12 sizes; length 500 mm
• Wall type / thickness: Recovered wall 3.4 to 3.8 mm (standard), 4.0 mm (high shrink ratio), +/-10 %
• Application: Insulating and sealing inline connectors and terminal lugs on LV cable, copper or aluminium conductors
• Installation: Cold applied; unwind the spiral core counter-clockwise; no heat, tools, mastic or tape
• Country of origin: India
• 300 % modulus (typical, ASTM D412): 3.3 MPa
• Tensile strength (typical, ASTM D412): 9.6 MPa
• Ultimate elongation (typical, ASTM D412): 750 %
• Tear strength, Die C (typical, ASTM D624): 26.3 kN/m
• Unit of sale: Per piece (500 mm tube)

Sizes

• Code | Ds supplied (min) | Df recovered (max) | Tf wall | Application range
• GCTE 20/7 | 20 | 7 | 3.4 | 8-15
• GCTE 25/9 | 25 | 9 | 3.6 | 10-20
• GCTE 35/11 | 35 | 11 | 3.6 | 12-30
• GCTE 40/13 | 40 | 13 | 3.6 | 14-33
• GCTE 53/16 | 53 | 16 | 3.6 | 17-46
• GCTE 70/20 | 70 | 20 | 3.6 | 21-63
• GCTE 104/28 | 104 | 28 | 3.8 | 29-94
• GCTE 125/34 | 125 | 34 | 3.8 | 35-115
• GCTE 150/41 | 150 | 41 | 3.8 | 42-141
• GCTE 40/9 (high shrink ratio) | 40 | 9 | 4.0 | 10-33
• GCTE 70/17 (high shrink ratio) | 70 | 17 | 4.0 | 18-63
• GCTE 80/19 (high shrink ratio) | 80 | 19 | 4.0 | 20-73
• All in mm; length 500 mm.

Applications: LV cable jointing and lug sealing, panel and switchboard wiring, industrial maintenance, flame-restricted sites, electrical contractors
