High Shrink Ratio Heat Shrink Tube 5:1 (GMW 5x)
High Shrink Ratio Heat Shrink Tube 5:1 (GMW 5x)
High Shrink Ratio Heat Shrink Tube 5:1 (GMW 5x)
High Shrink Ratio Heat Shrink Tube 5:1 (GMW 5x)

High Shrink Ratio Heat Shrink Tube 5:1 (GMW 5x)

MOQ : 1 Piece

High Shrink Ratio Heat Shrink Tube 5:1 (GMW 5x) Specification

  • Installation Guideline
  • Propane torch, shrink from the centre outwards (as for GMW tubing)
  • Coating Type
  • Optional hot-melt adhesive lining
  • Feature
  • 5:1
  • Size
  • 30 mm to 160 mm supplied ID; 6 mm to 32 mm recovered ID
  • Product Type
  • High shrink ratio heat shrink tube
  • Tensile Strength
  • 12 N/mm2 min (ASTM D638)
  • Thickness
  • 4.3 mm to 5.0 mm after recovery (+/-10%)
  • Application
  • Large diameter transitions between cables, connectors and back shells; cable repair; connector sealing
  • Usage & Applications
  • Large diameter transitions between cables, connectors and back shells; cable repair; connector sealing
  • Operating Temperature
  • -40 deg C to +110 deg C continuous
  • Color
  • Black
  • Material
  • Cross-linked polyolefin, carbon black UV protected
  • UV Resistance
  • Yes
  • Minimum Shrink Temperature
  • 120C
  • Temperature Resistance
  • Stable performance from -40C to +125C
  • RoHS Compliance
  • Yes
  • Flame Retardant
  • Yes
  • Environmental Resistance
  • Resistant to chemicals, oils, fungus, and UV
  • Typical Repair Application
  • Quick field repair or emergency cable restoration
  • Shrink Ratio
  • 3:1 or 4:1 (depending on size/type)
  • Liner
  • Optional adhesive lining
  • Recommended Tools
  • Hot air gun, scissors/cutter
  • Repair Method
  • Heat shrink, wrap-around, spiral or patch style
  • Maximum Continuous Voltage Withstand
  • Up to 1000V
  • Adhesive Type
  • Hot melt (integral adhesive lining for waterproof sealing)
  • Shelf Life
  • Up to 36 months if stored as recommended
  • Package Type
  • Individually packed or in bulk rolls/sleeves
  • Flexibility
  • Excellent for use on bent or irregular cable surfaces
  • Sealing Type
  • Waterproof and environmental sealing



About High Shrink Ratio Heat Shrink Tube 5:1 (GMW 5x)

Standard heat-shrink tube recovers to about a third of its supplied diameter. GMW 5x is made to shrink much further, to one fifth of its supplied inside diameter, so a single tube can pass over a bulky connector or back shell and still grip the much thinner cable behind it. That makes it the practical choice where a joint or termination has a large step in diameter, and it lets maintenance teams cover a wide range of jobs with fewer stocked sizes.

The tube is cross-linked polyolefin of the same family as Gala's GMW medium-wall tubing, with a thick recovered wall of 4.3 to 5.0 mm. Its compound contains carbon black against UV. An optional hot-melt adhesive lining gives a sealed, moisture-resistant cover.

Typical work includes repairing damaged cable sheaths, sealing the rear end of connectors, and covering transitions between cables and components where the sizes on each side differ greatly.

Order by code, size and length, adding "U" for tube without adhesive, for example GMW 5x 30/6 U 1000. Like other GMW tubing it is shrunk with a propane torch, working from the centre outwards; the shrink temperature is 125 deg C.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

  • Brand: Gala
  • Product type: High shrink ratio heat shrink tube
  • Material: Cross-linked polyolefin, carbon black UV protected
  • Colour: Black
  • Operating temperature: -40 deg C to +110 deg C continuous
  • Shrink ratio: 5:1
  • Size range: 30 mm to 160 mm supplied ID; 6 mm to 32 mm recovered ID
  • Wall type / thickness: 4.3 mm to 5.0 mm after recovery (+/-10%)
  • Adhesive / sealant: Optional hot-melt adhesive lining
  • Standards tested to: Test methods quoted on Gala's datasheet - ASTM D638, ASTM D2671, ASTM D149, ASTM D257
  • Application: Large diameter transitions between cables, connectors and back shells; cable repair; connector sealing
  • Installation: Propane torch, shrink from the centre outwards (as for GMW tubing)
  • Country of origin: India
  • Shrink temperature: 125 deg C
  • Tensile strength: 12 N/mm2 min (ASTM D638)
  • Elongation at break: 350% min
  • Dielectric strength: 12 kV/mm min on 2 mm wall (ASTM D149)
  • Volume resistivity: 1 x 1012 ohm.cm min (ASTM D257)
  • Ordering format: code + size + U (without adhesive) + length in mm, e.g. GMW 5x 30/6 U 1000

Sizes

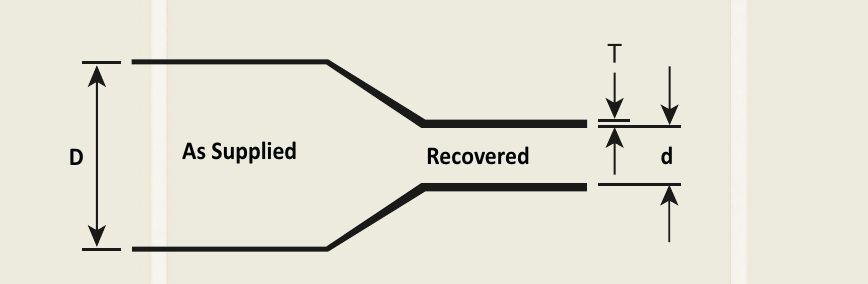

  • GMW 5x 30/6 | D 30 / d 6 | T 4.3 mm
  • GMW 5x 40/8 | D 40 / d 8 | T 4.3 mm
  • GMW 5x 50/10 | D 50 / d 10 | T 4.3 mm
  • GMW 5x 60/12 | D 60 / d 12 | T 4.5 mm
  • GMW 5x 75/15 | D 75 / d 15 | T 4.5 mm
  • GMW 5x 90/18 | D 90 / d 18 | T 4.5 mm
  • GMW 5x 105/21 | D 105 / d 21 | T 5.0 mm
  • GMW 5x 115/23 | D 115 / d 23 | T 5.0 mm
  • GMW 5x 130/26 | D 130 / d 26 | T 5.0 mm
  • GMW 5x 140/28 | D 140 / d 28 | T 5.0 mm
  • GMW 5x 160/32 | D 160 / d 32 | T 5.0 mm

Applications: Cable manufacturers and cable repair teams, electrical maintenance, connector and harness assembly, mining and tunnelling cables, marine and offshore, oil and gas, power utilities
