Tamper Proof Cable End Seal with Logo Printing - Heat Shrink
Tamper Proof Cable End Seal with Logo Printing - Heat Shrink
Tamper Proof Cable End Seal with Logo Printing - Heat Shrink
Tamper Proof Cable End Seal with Logo Printing - Heat Shrink

Tamper Proof Cable End Seal with Logo Printing - Heat Shrink

MOQ : 1 Piece

Tamper Proof Cable End Seal with Logo Printing - Heat Shrink Specification

  • Operating Temperature
  • -40 to +100 deg C (continuous)
  • Install Type
  • Propane or butane torch, closed end first
  • Usage & Applications
  • Sealing and identifying cable drum ends for cable-length warranty control
  • Product Type
  • Heat-shrink cable end cap with customer logo printing (tamper-evident)
  • Color
  • Black, with printed marking
  • Material
  • Cross-linked polyolefin
  • Size
  • INSULCAP sizes GEC 001 S to GEC 1101, cable outside diameter 2.5 to 460 mm



About Tamper Proof Cable End Seal with Logo Printing - Heat Shrink

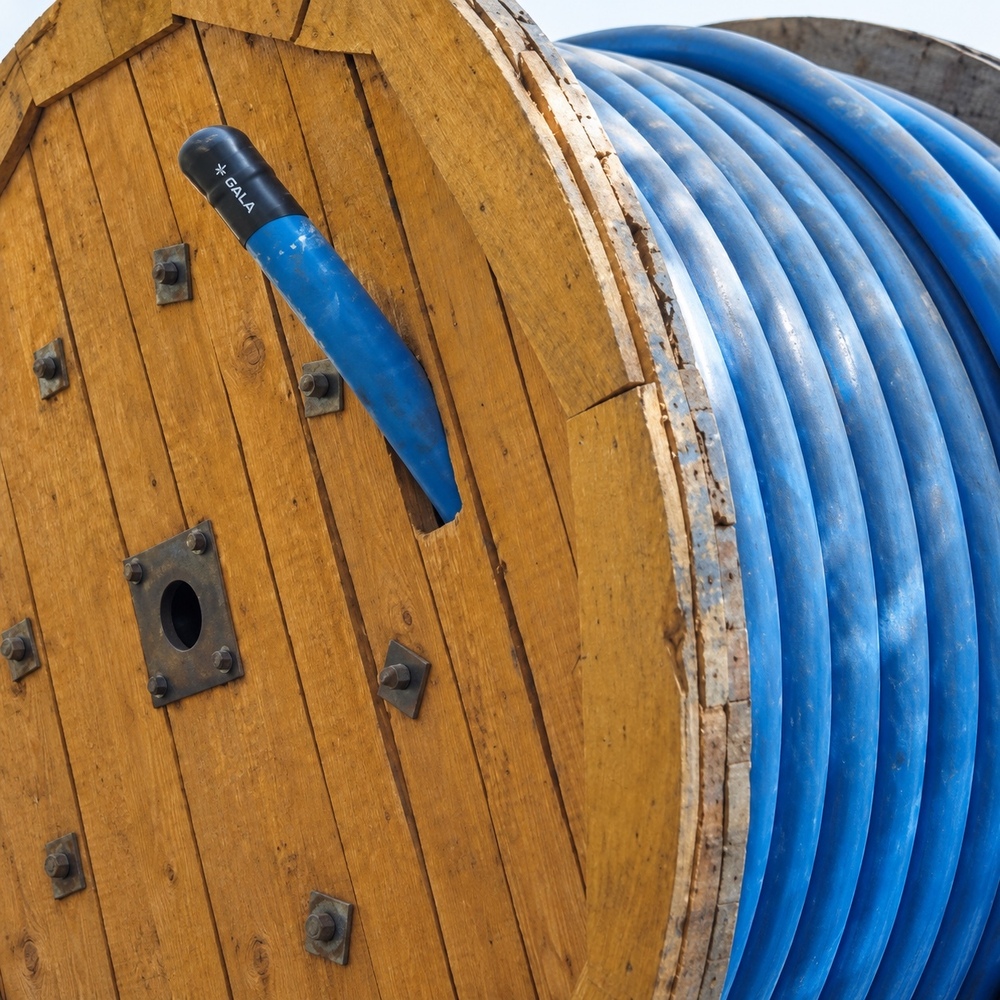

Cable manufacturers ship drums with both ends sealed. When a customer later claims the drum was short, the maker needs to know whether the ends are the ones it fitted. Gala's tamper proof end seal answers that question.

It is the standard INSULCAP heat-shrink end cap, cross-linked polyolefin with a hot-melt adhesive lining, printed with the customer's logo or text in non-removable ink. Once it has been shrunk onto the cable, the adhesive bonds to the sheath and the cap cannot be taken off and refitted without visible damage. A missing, cut or replaced cap shows that the cable end has been disturbed, which supports warranty control on cable length and discourages pilferage.

The seal also does the normal job of an end cap: it keeps water and moisture out of the cable end in storage, transport and on site. It suits XLPE, PVC, PILC and rubber-sheathed cables and is shrunk with a propane or butane torch from the closed end towards the cable; the cap recovers above 125 deg C.

The printed seal is offered across the INSULCAP size range, for cable outside diameters from 2.5 mm to 460 mm. Valved and relief-valved (de-gassing) caps are listed separately. Gala is an ISO 9001, ISO 14001 and ISO 45001 certified manufacturer.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

  • Brand: Gala
  • Product type: Heat-shrink cable end cap with customer logo printing (tamper-evident)
  • Material: Cross-linked polyolefin
  • Colour: Black, with printed marking
  • Operating temperature: -40 to +100 deg C (continuous)
  • Size range: INSULCAP sizes GEC 001 S to GEC 1101, cable outside diameter 2.5 to 460 mm
  • Adhesive / sealant: Hot-melt adhesive lining
  • Application: Sealing and identifying cable drum ends for cable-length warranty control
  • Installation: Propane or butane torch, closed end first
  • Country of origin: India
  • Shrink temperature: 125 deg C
  • Printing: Customer logo or text in non-removable ink

Sizes

  • Same sizes as the Gala INSULCAP end cap: GEC 001 S (cable 2.5-4 mm) up to GEC 1101 (cable 230-460 mm), 44 sizes. Full chart in the INSULCAP datasheet.

Applications: Power cable manufacturing, control and instrumentation cable manufacturing, telecom cable manufacturing, cable traders and distributors, export cable packing
