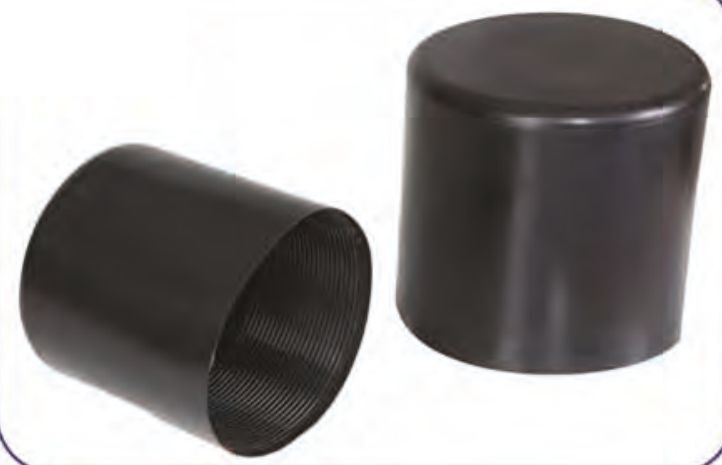

Heat Shrink Dock Pile Cap for Wooden Marine Piles (GPC)

About Heat Shrink Dock Pile Cap for Wooden Marine Piles (GPC)

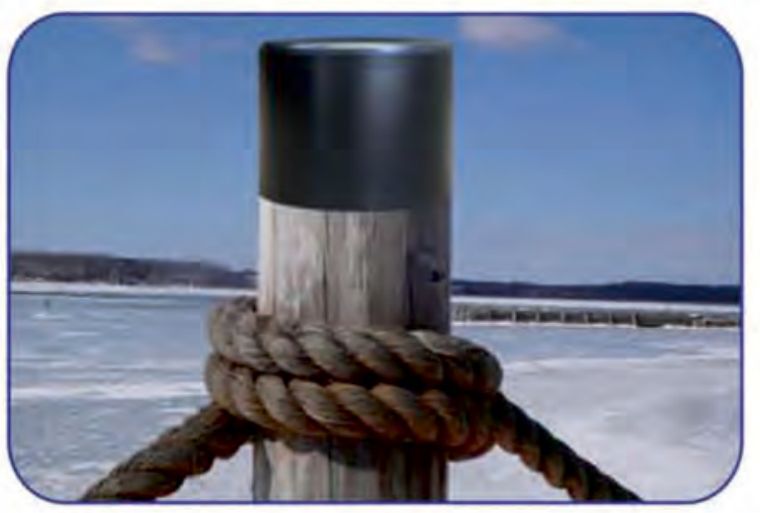

Timber piles in docks, jetties, piers and wharves rot from the top down: rain and spray soak into the end grain, the top splits as it wets and dries, and decay follows the cracks. Capping the pile top keeps that water out. Gala's Dock Pile Cap does it with a heat-shrink cap that bonds to the wood.

The cap is cross-linked polyolefin with a hot-melt adhesive lining, supplied expanded. Cut the pile top straight, clean and degrease it, place the cap over the top and shrink it with a propane (preferred) or butane torch, from the closed end downward, until adhesive shows at the lower edge. It recovers above 125 deg C; leave it to cool before mooring lines or fenders bear on it. During shrinking the adhesive runs into cracks at the top and bonds the cap to the timber.

One fitting is enough; the cap needs no maintenance afterwards. Five sizes cover pile diameters from 140 mm to 460 mm. It is the same Gala cap sold for wooden power poles (POLECAP).

Typical buyers are port and harbour authorities, marina and jetty operators, marine civil contractors and timber pile suppliers. Gala is an ISO 9001, ISO 14001 and ISO 45001 certified manufacturer.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Heat-shrinkable pile top cap
• Material: Cross-linked polyolefin
• Colour: Black
• Size range: GPC 801S to GPC 1101, pile diameter 140 to 460 mm
• Adhesive / sealant: Hot-melt adhesive lining
• Application: Sealing the tops of wooden dock, jetty, pier and marine piles
• Installation: Cut top straight, clean, degrease; shrink with propane or butane torch from the closed end down
• Country of origin: India
• Shrink temperature: 125 deg C (recovers above 125 deg C)

Sizes

• Five sizes: GPC 801S, GPC 801, GPC 901, GPC 1001, GPC 1101, together covering pile diameters 140 to 460 mm.
• Per-size dimensions are withheld until Gala confirms them: the published chart repeats the GEC 801-1101 cable end-cap chart line for line. Size selection on enquiry.

Applications: Ports and harbours, marinas, jetties and piers, wharves, marine civil construction, waterfront timber structures, boardwalks
