Pole Protection Sleeve for Steel Street Light Poles (GPWS)

About Pole Protection Sleeve for Steel Street Light Poles (GPWS)

Steel street-lighting poles corrode fastest where they meet the ground: water, soil salts and debris collect at the base and attack the coating. Gala's Pole Protection Sleeve is designed to be used together with an epoxy paint system to seal that critical ground-line area.

The sleeve is made from cross-linked polyolefin with a hot-melt adhesive lining. When heated, it shrinks tightly onto the pole and the adhesive melts and bonds, giving a waterproof barrier and mechanical protection at the base.

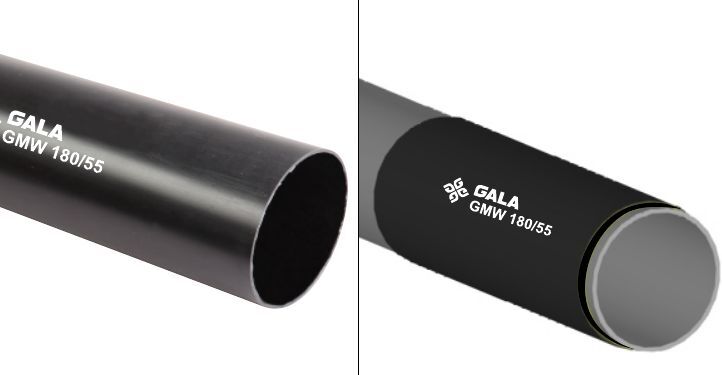

Two formats cover the two situations a maintenance team meets. The GPWS wraparound sleeve is for poles already installed: it wraps round the standing pole with an overlap, so the pole does not have to be taken down, and six sizes cover pole outside diameters from 70 to 360 mm in 700 mm lengths. The GMW tubular sleeve is for new poles before they are erected: the tube is slid over the pole base and shrunk in place, in six sizes from GMW 180/55 to GMW 425/120, also 700 mm long.

Sleeves can be cut to size in the field and custom dimensions can be made on request. Typical jobs are re-used or relocated poles, poles set in pavement, poles in corrosive or waterlogged locations and poles whose base has been disturbed by cable trenching or regrading.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Heat shrink pole protection sleeve (wraparound GPWS) and tubular sleeve (GMW) for metal poles
• Material: Cross-linked polyolefin with hot-melt adhesive lining
• Colour: Black
• Size range: GPWS for pole OD 70 to 360 mm; GMW tube 180/55 to 425/120
• Adhesive / sealant: Hot-melt adhesive lining
• Application: Ground-line corrosion protection of steel street-lighting poles, used with epoxy paint
• Installation: GPWS wrapped round the standing pole with an overlap; GMW slid over the pole before erection; both heat-shrunk with a gas torch
• Country of origin: India
• Length: 700 mm per piece (all sizes)
• Field cutting: Can be cut to size on site

Sizes

• GPWS-502 | pole OD 70-122 mm | length 700 mm | overlap min 50 mm
• GPWS-628 | pole OD 70-145 mm | length 700 mm | overlap min 75 mm
• GPWS-785 | pole OD 140-190 mm | length 700 mm | overlap min 75 mm
• GPWS-1005 | pole OD 150-250 mm | length 700 mm | overlap min 75 mm
• GPWS-1178 | pole OD 160-290 mm | length 700 mm | overlap min 75 mm
• GPWS-1335 | pole OD 175-360 mm | length 700 mm | overlap min 75 mm
• GMW 180/55 | D 180 / d 55 mm | wall 3.3 mm | length 700 mm
• GMW 200/60 | D 200 / d 60 mm | wall 3.5 mm | length 700 mm
• GMW 250/70 | D 250 / d 70 mm | wall 3.5 mm | length 700 mm
• GMW 320/90 | D 320 / d 90 mm | wall 3.5 mm | length 700 mm
• GMW 375/110 | D 375 / d 110 mm | wall 3.5 mm | length 700 mm
• GMW 425/120 | D 425 / d 120 mm | wall 3.5 mm | length 700 mm
• (D = supplied inside diameter min, d = recovered inside diameter max, wall after recovery +/-10%)

Applications: Street lighting and municipal lighting, highway and road lighting, smart-city projects, power distribution steel poles, telecom and signage poles, pole maintenance contractors
