PVC Pole Cap and Dock Pile Cap - Round and Square (GRPC / GSPC)

About PVC Pole Cap and Dock Pile Cap - Round and Square (GRPC / GSPC)

Birds perch and nest on flat pole and pile tops, and rain soaking into the end grain starts decay. Gala's PVC pole cap covers the top with a pointed shape that birds cannot sit on and that sheds rain.

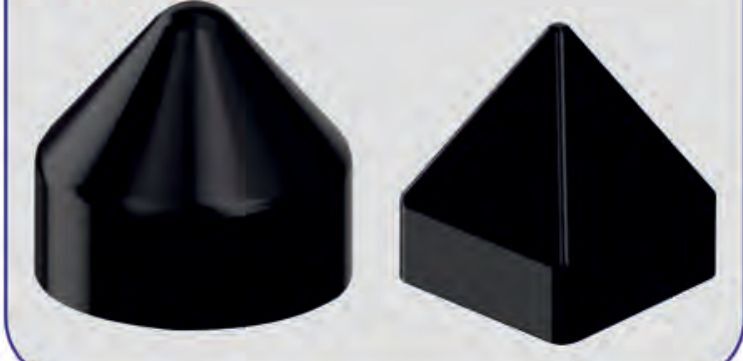

The cap is moulded from specially formulated PVC. Round caps (GRPC) have a conical top and suit round poles and piles; square caps (GSPC) have a pyramid top and suit square posts and piles. Unlike Gala's heat-shrink pole cap, it is not heat-shrunk; it is a rigid cap that sits over the top of the pole.

Twelve round sizes run from GRPC 213 to GRPC 489 and seven square sizes from GSPC 235 to GSPC 483; the number in each code is the cap size D in millimetres. Wall thickness is 2.5 mm on smaller caps and 3.5 mm on larger ones. The material has a hardness of 65 +/- 5 Shore A.

Typical uses are wooden distribution poles, dock and jetty piles, marine pylons and square timber posts. Gala is an ISO 9001, ISO 14001 and ISO 45001 certified manufacturer.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Moulded PVC pole / pile top cap with conical (round) or pyramid (square) top
• Material: PVC (specially formulated)
• Colour: Black (other colours: ask)
• Size range: Round GRPC 213 to 489 mm; square GSPC 235 to 483 mm
• Wall type / thickness: 2.5 mm or 3.5 mm (+/- 10 %)
• Application: Covering tops of wooden poles, dock piles, marine pylons and square posts; bird perching deterrent
• Installation: Placed over the pole or pile top (fixing method to be confirmed by Gala)
• Country of origin: India
• Hardness: 65 +/- 5 Shore A (ASTM D2240)

Sizes

• All in mm. D = cap size (min; the code number), h = skirt height (min), H = overall height (min), T = wall.
• Round caps (GRPC) | D | h | H | T
• GRPC 213 | 213 | 102 | 207 | 2.5
• GRPC 241 | 241 | 102 | 221 | 2.5
• GRPC 260 | 260 | 102 | 230 | 2.5
• GRPC 267 | 267 | 102 | 234 | 2.5
• GRPC 298 | 298 | 102 | 249 | 2.5
• GRPC 305 | 305 | 102 | 253 | 2.5
• GRPC 324 | 324 | 102 | 262 | 2.5
• GRPC 356 | 356 | 102 | 278 | 3.5
• GRPC 375 | 375 | 102 | 288 | 3.5
• GRPC 403 | 403 | 102 | 302 | 3.5
• GRPC 467 | 467 | 102 | 334 | 3.5
• GRPC 489 | 489 | 102 | 345 | 3.5
• Square caps (GSPC): GSPC 235, GSPC 343, GSPC 381, GSPC 406, GSPC 432, GSPC 457, GSPC 483 (code number = D). Heights are being re-confirmed by Gala - give on enquiry.

Applications: Power distribution utilities, telecom pole networks, ports and jetties, marine construction, timber posts and piles
