Heat Shrink Pole Cap for Wooden Poles (POLECAP GPC)

About Heat Shrink Pole Cap for Wooden Poles (POLECAP GPC)

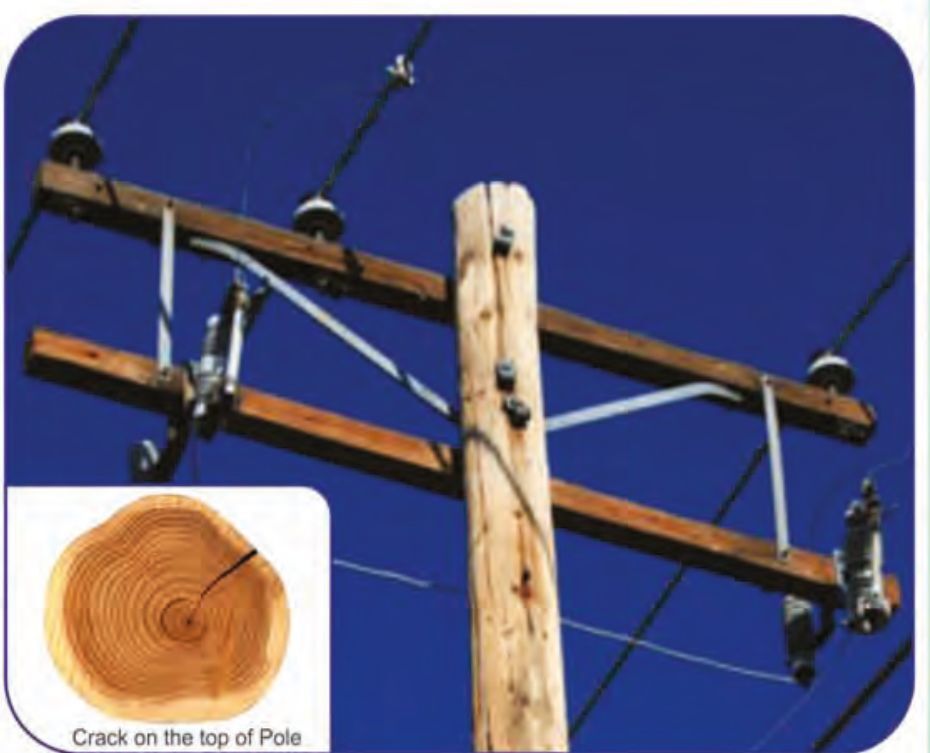

A wooden pole takes in water through its cut top. As the top wets and dries it swells, shrinks and splits, and the cracks let in more water and decay. Gala's POLECAP closes the top of the pole.

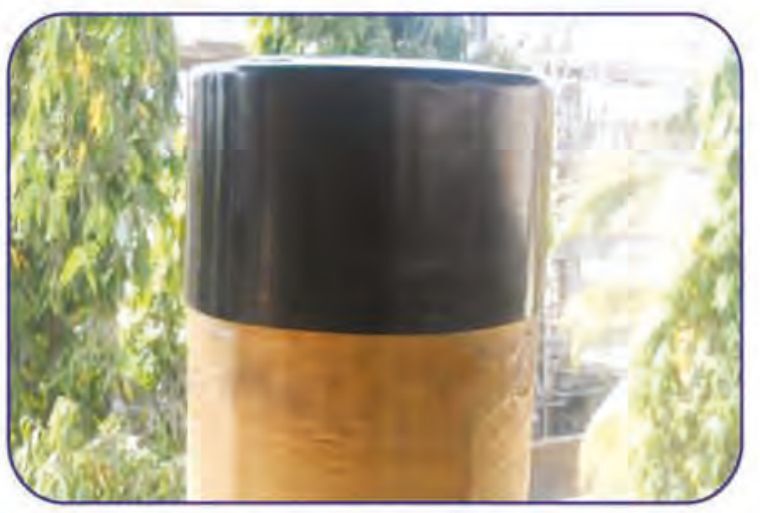

The cap is a closed-end moulding of cross-linked polyolefin with a hot-melt adhesive lining, supplied in its expanded state. To fit it, cut the pole top straight, clean and degrease it, place the cap over the top and shrink it with a propane (preferred) or butane torch, working from the closed end down the pole until adhesive shows at the edge. The cap recovers above 125 deg C; let it cool before any load is applied. As it shrinks, the adhesive flows into surface cracks at the top and bonds the cap to the wood, keeping water out of the end grain.

Five sizes cover pole diameters from 140 mm to 460 mm. The cap is fitted once and needs no maintenance. The same cap is used on wooden dock piles and marine piles, listed separately as the Dock Pile Cap.

Typical buyers are power distribution utilities, telecom operators with wooden poles, and line maintenance contractors. Gala is an ISO 9001, ISO 14001 and ISO 45001 certified manufacturer.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Heat-shrinkable pole top cap
• Material: Cross-linked polyolefin
• Colour: Black
• Size range: GPC 801S to GPC 1101, pole diameter 140 to 460 mm
• Adhesive / sealant: Hot-melt adhesive lining
• Application: Sealing the tops of wooden power and telecom poles
• Installation: Cut top straight, clean, degrease; shrink with propane or butane torch from the closed end down
• Country of origin: India
• Shrink temperature: 125 deg C (recovers above 125 deg C)

Sizes

• Five sizes: GPC 801S, GPC 801, GPC 901, GPC 1001, GPC 1101, together covering pole diameters 140 to 460 mm.
• Per-size dimensions are withheld until Gala confirms them: the published GPC chart repeats the GEC 801-1101 cable end-cap chart line for line (see Ask GSF). Size selection on enquiry.

Applications: Power distribution utilities, rural electrification, telecom pole networks, line maintenance contractors, wooden pole suppliers
