Heat Shrink Pole Protection Tube for New Wooden Poles (GPPT)

About Heat Shrink Pole Protection Tube for New Wooden Poles (GPPT)

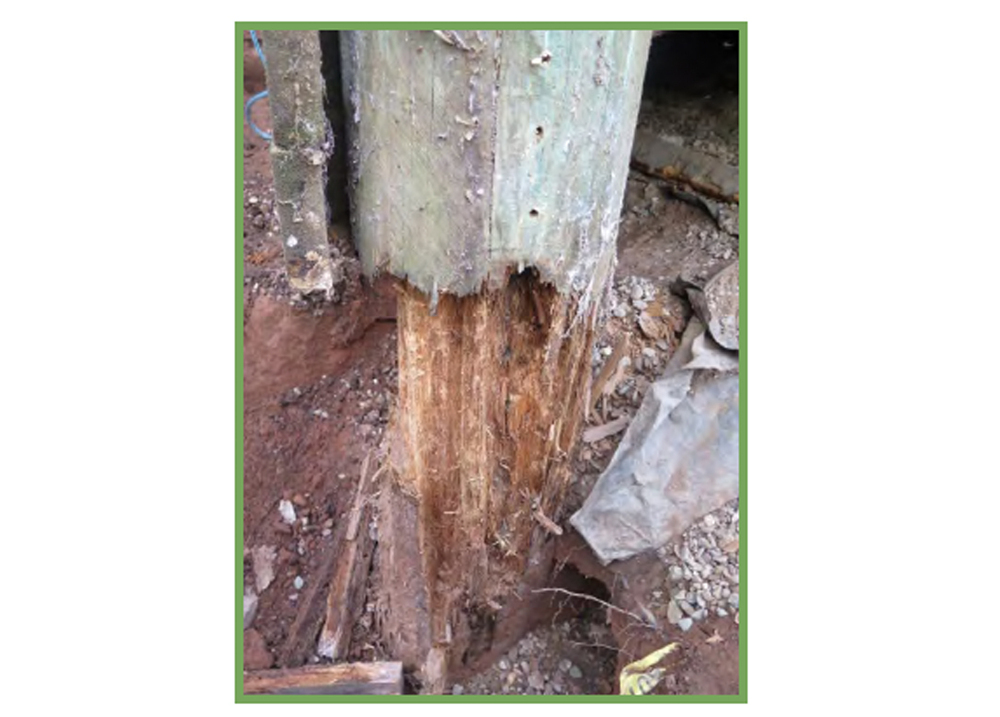

A wooden pole usually fails at the ground line. That is where it carries the highest bending stress, where soil moisture wicks into the wood and starts decay, and where drying cracks let termites into the core. The damage is hidden below the soil and often goes unnoticed until the pole is weak.

Gala's Pole Protection Tube (code GPPT) is the tubular version of Gala's pole protection range, meant for new poles. Because it is a closed tube, it is slid over the pole before cross-arms, cables and fittings are mounted, positioned over the ground-line section and then heat-shrunk so that it grips the pole along with the bituminous liner beneath it. Each GPPT size covers a wider spread of pole diameters than the matching wrap-type sleeve.

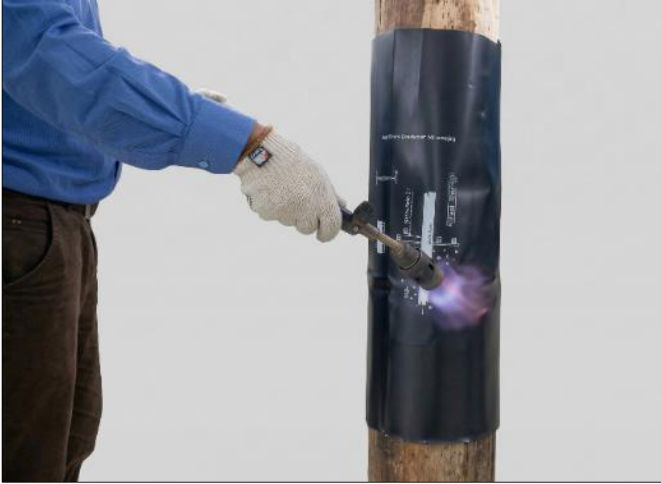

Installation follows the same steps as the sleeve: clean the pole, position the tube, shrink it with a propane torch (butane torch or hot-air gun also used) from the centre outwards in a circular motion, check for wrinkles or trapped air, and let it cool before handling.

Good candidates are new poles, especially poles to be set in pavement, poles going into decay-prone ground, and high-value or hard-to-replace installations. For poles that are already standing with equipment fitted, use the wrap-type Pole Protection Sleeve (GPPS) instead.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

• Brand: Gala
• Product type: Heat shrink pole protection tube, slip-on type, for new poles
• Material: Cross-linked polyolefin, used with a bituminous liner
• Colour: Black
• Size range: 8 sizes, GPPT 115 to GPPT 425, for pole diameters 39 to 414 mm
• Application: Ground-line decay and termite protection for new wooden utility poles, fitted before the pole is dressed
• Installation: Slid over the pole, positioned at the ground line, heat-shrunk with a propane torch from the centre outwards
• Country of origin: India
• Maximum length per piece: 1000 mm (700 mm for GPPT 425)
• Field cutting: Can be cut to length

Sizes

• GPPT 115 | D 115 / d 36 mm | max length 1000 mm | pole dia 39-105 mm
• GPPT 140 | D 140 / d 44 mm | max length 1000 mm | pole dia 47-130 mm
• GPPT 160 | D 160 / d 52 mm | max length 1000 mm | pole dia 55-145 mm
• GPPT 200 | D 200 / d 62 mm | max length 1000 mm | pole dia 65-190 mm
• GPPT 250 | D 250 / d 73 mm | max length 1000 mm | pole dia 76-240 mm
• GPPT 320 | D 320 / d 95 mm | max length 1000 mm | pole dia 98-310 mm
• GPPT 375 | D 375 / d 115 mm | max length 1000 mm | pole dia 118-364 mm
• GPPT 425 | D 425 / d 125 mm | max length 700 mm | pole dia 128-414 mm

Applications: Power distribution utilities, telecom line networks, rural electrification projects, pole treatment and pole yards, new pole installations in pavement or decay-prone ground
