Busbar End Cap - Flexible PVC Push-On (BUSCAP)
Busbar End Cap - Flexible PVC Push-On (BUSCAP)
Busbar End Cap - Flexible PVC Push-On (BUSCAP)
Busbar End Cap - Flexible PVC Push-On (BUSCAP)

Busbar End Cap - Flexible PVC Push-On (BUSCAP)

MOQ : 1 Piece

Busbar End Cap - Flexible PVC Push-On (BUSCAP) Specification

  • Installation Guideline
  • Pushed onto the busbar end by hand; removable and re-usable
  • Size
  • Busbar 15 x 5 mm to 200 x 12 mm (18 sizes)
  • Product Type
  • Busbar end cap, push-on (not heat-shrinkable)
  • Tensile Strength
  • 12 N/sq mm minimum (ASTM D638)
  • Application
  • Insulating the ends of live busbars in switchgear, panels and busducts
  • Usage & Applications
  • Insulating the ends of live busbars in switchgear, panels and busducts
  • Color
  • Blue, black, red, yellow, orange, green, dark blue
  • Operating Temperature
  • -20 deg C to +115 deg C continuous
  • Material
  • Flexible PVC



About Busbar End Cap - Flexible PVC Push-On (BUSCAP)

BUSCAP is Gala's push-on end cap for flat busbars. The open end of a busbar is the point most likely to flash over to an enclosure or a neighbouring phase, and it sets the clearance a panel has to be designed around. A cap moulded from flexible PVC, formulated for electrical insulation, covers that end and lets switchgear and panel builders work with reduced air clearance.

The cap is pushed onto the end of the bar by hand. It needs no heat, adhesive or tools, and it can be installed, removed and replaced in a few minutes, so bus ends can be opened for maintenance and capped again. It is suitable for indoor and outdoor use and resists UV and ozone.

Eighteen standard sizes fit busbars from 15 x 5 mm to 200 x 12 mm, with cap depths of 20 to 70 mm. Caps are made in blue, black, red, yellow, orange, green and dark blue, which also lets phases be colour-coded. Gala can develop new sizes, shapes and colours to order, typically within a week.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

  • Brand: Gala
  • Product type: Busbar end cap, push-on (not heat-shrinkable)
  • Material: Flexible PVC
  • Colour: Blue, black, red, yellow, orange, green, dark blue
  • Operating temperature: -20 deg C to +115 deg C continuous
  • Size range: Busbar 15 x 5 mm to 200 x 12 mm (18 sizes)
  • Application: Insulating the ends of live busbars in switchgear, panels and busducts
  • Installation: Pushed onto the busbar end by hand; removable and re-usable
  • Country of origin: India
  • Tensile strength: 12 N/sq mm minimum (ASTM D638)
  • Elongation: 350 % minimum (ASTM D638)
  • Density: 1.23 g/cm3 (ASTM D792)

Sizes

  • GBC 1 | busbar 15 x 5 mm | depth L 20 mm
  • GBC 2 | busbar 20 x 5 mm | depth L 20 mm
  • GBC 3 | busbar 25 x 5 mm | depth L 20 mm
  • GBC 4 | busbar 30 x 10 mm | depth L 30 mm
  • GBC 5 | busbar 40 x 10 mm | depth L 30 mm
  • GBC 6 | busbar 50 x 6 mm | depth L 30 mm
  • GBC 7 | busbar 50 x 10 mm | depth L 30 mm
  • GBC 8 | busbar 60 x 10 mm | depth L 30 mm
  • GBC 9 | busbar 65 x 8 mm | depth L 30 mm
  • GBC 10 | busbar 75 x 6 mm | depth L 50 mm
  • GBC 11 | busbar 80 x 10 mm | depth L 50 mm
  • GBC 12 | busbar 100 x 6 mm | depth L 50 mm
  • GBC 13 | busbar 100 x 10 mm | depth L 50 mm
  • GBC 14 | busbar 100 x 24 mm | depth L 50 mm
  • GBC 15 | busbar 120 x 10 mm | depth L 50 mm
  • GBC 16 | busbar 125 x 10 mm | depth L 50 mm
  • GBC 17 | busbar 150 x 6 mm | depth L 70 mm
  • GBC 18 | busbar 200 x 12 mm | depth L 70 mm

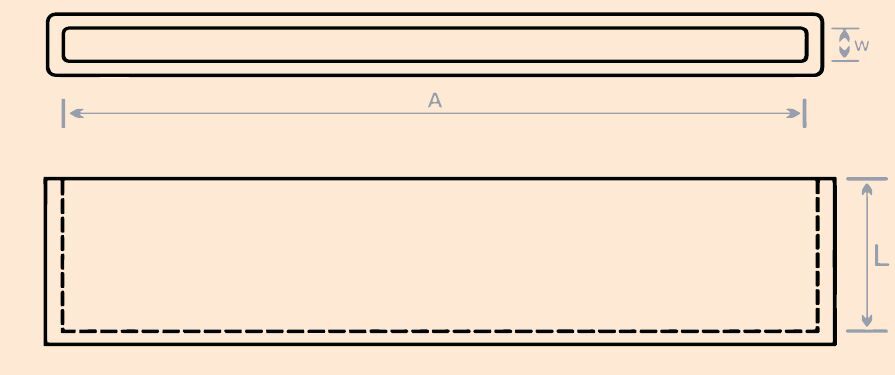

  • Busbar size = cap opening width A x thickness W. Source: Gala BUSCAP catalogue sheet, February 2024.

Applications: Switchgear and panel builders, LV and MV switchboards, busduct manufacturers, distribution boards, transformer and control panel manufacturers, electrical contractors, substations
