BUSBOOT Vinyl is Gala's flexible PVC insulating boot, or shroud, for bolted busbar joints and switchgear connections. Insulating the joints, as well as the busbar runs, reduces the air clearance a panel needs around them. That lets switchgear and panel builders design more compact panels and save on busbar length and sheet metal; Gala's view is that the saving in switchgear components outweighs the cost of the boots.

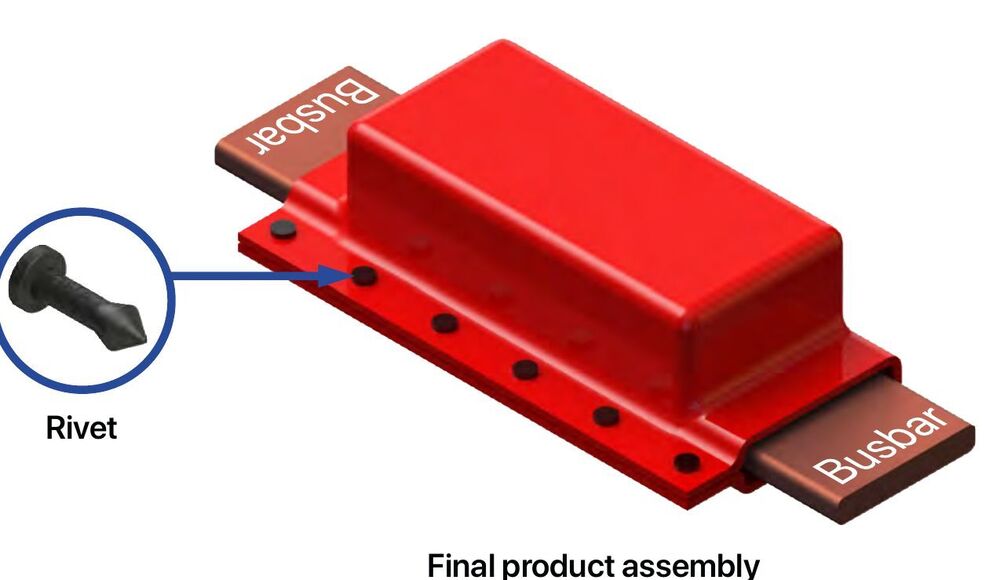

The boot is moulded from specially formulated PVC to fit the shape of a joint. It is placed over the bolted joint and closed along its flanges with the fasteners supplied, without heat or tools, and it can be removed and refitted as often as needed for maintenance. An overlapping design gives extra protection against flashover at the closure.

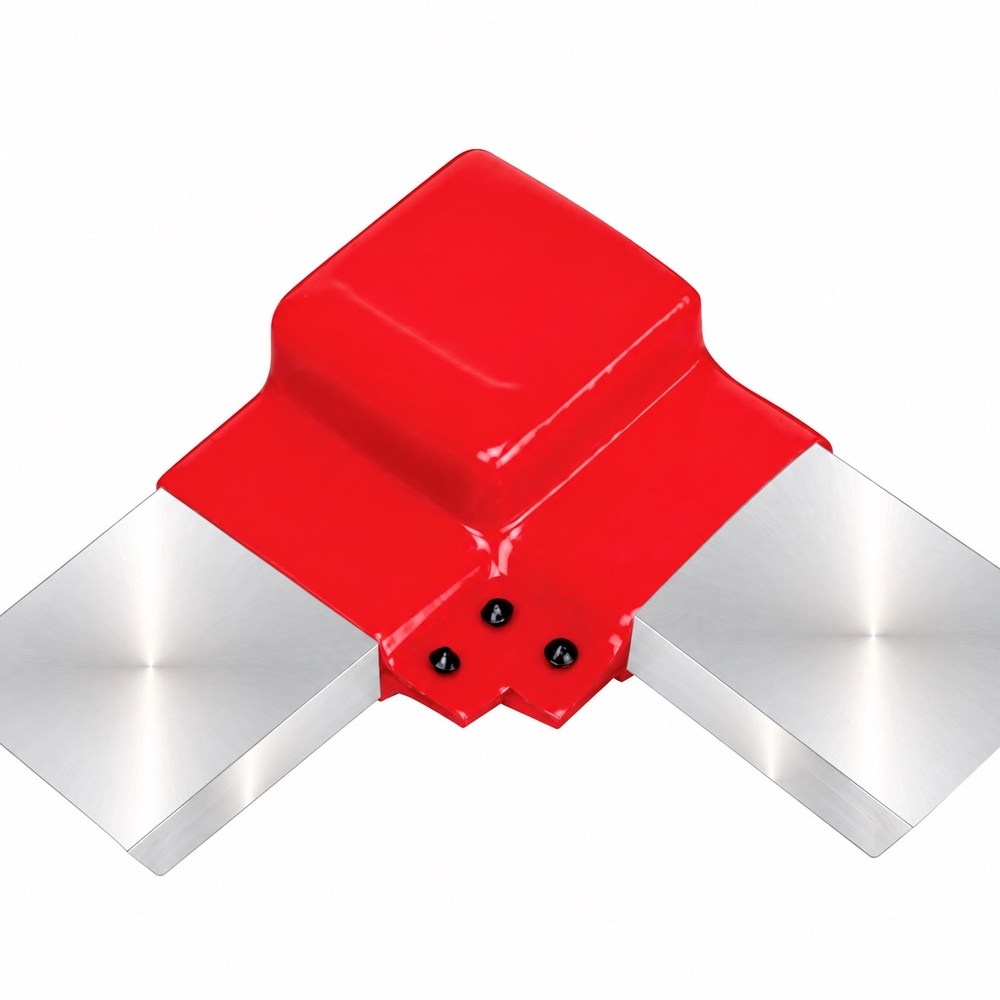

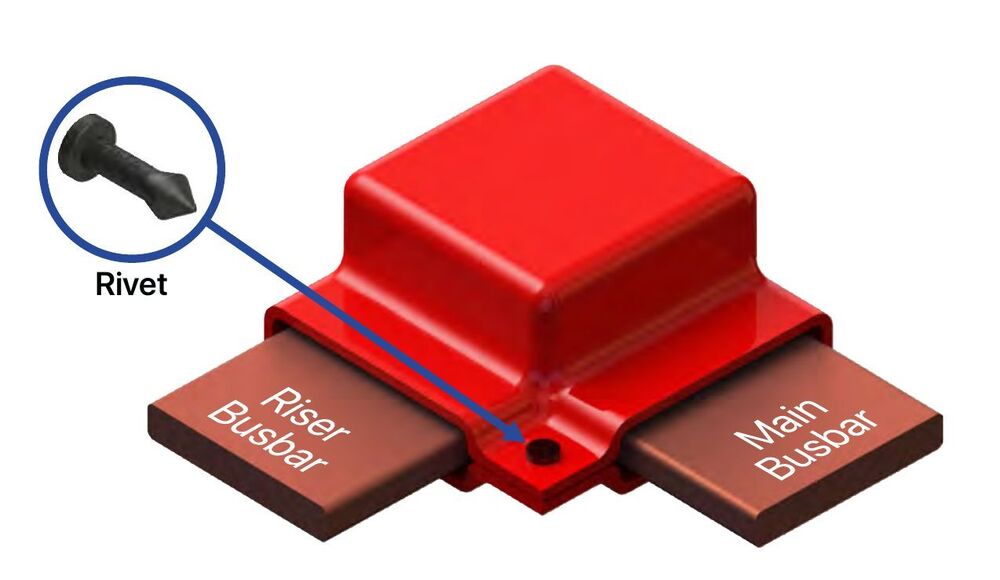

Gala's standard-designs catalogue lists more than a thousand existing GES designs for busbars from 10 mm to 280 mm wide, in L-centred, L off-centred, straight centred, straight off-centred, T-centred, T off-centred, drop-link, T and L with 90 deg riser and standoff-insulator shapes, each with its dimensions. For any other joint, a new design can be developed from the customer's drawing, often within a week, with low tooling cost. Wall thickness is chosen by system voltage, from 1.25 mm at 3.3 kV to 3.0 mm at 24 kV.
Manufactured by Gala in India. Datasheet and size selection on request.
Specifications
Sizes
Applications: Switchgear and panel builders, MV and LV switchboards, busduct manufacturers, transformer manufacturers, substations, power plants and industrial MV installations




Price:
Minimum Order Quantity : 1 Piece
Color : Red
Size : 50 mm wide x 15 m roll
Usage & Applications : Insulating MV busbar bends, joints and irregular connections; busbar repairs
Installation Guideline : Wrapped with 2/3 overlap, end secured with glassfibre tape, shrunk with a propane torch or hotair blower
Application : Insulating MV busbar bends, joints and irregular connections; busbar repairs
Minimum Order Quantity : 1 Piece
Color : Red
Size : For busbars 25 to 150 mm wide; sheet length up to 1200 mm
Usage & Applications : Insulating bolted busbar tees, elbows and straight joints in MV switchgear and panels
Installation Guideline : Cut to size, clamped over the joint and shrunk with a gas torch or hotair gun; reusable version closed with nylon fasteners
Application : Insulating bolted busbar tees, elbows and straight joints in MV switchgear and panels
Minimum Order Quantity : 1 Piece
Color : Blue, yellow, red, black, white, green
Size : 12 sizes; narrowend diameter 3.2 to 30 mm, length 15 to 79 mm
Usage & Applications : Insulating and colourcoding crimped cable lugs and wireend terminals
Installation Guideline : Pushed over the crimped terminal by hand
Application : Insulating and colourcoding crimped cable lugs and wireend terminals
Minimum Order Quantity : 1 Piece
Color : Blue, black, red, yellow, orange, green, dark blue
Size : Busbar 15 x 5 mm to 200 x 12 mm (18 sizes)
Usage & Applications : Insulating the ends of live busbars in switchgear, panels and busducts
Installation Guideline : Pushed onto the busbar end by hand; removable and reusable
Application : Insulating the ends of live busbars in switchgear, panels and busducts
