Polyolefin Busbar Insulating Shroud for Busbar Joints (BUSBOOT)
Polyolefin Busbar Insulating Shroud for Busbar Joints (BUSBOOT)
Polyolefin Busbar Insulating Shroud for Busbar Joints (BUSBOOT)
Polyolefin Busbar Insulating Shroud for Busbar Joints (BUSBOOT)
Polyolefin Busbar Insulating Shroud for Busbar Joints (BUSBOOT)
Polyolefin Busbar Insulating Shroud for Busbar Joints (BUSBOOT)

Polyolefin Busbar Insulating Shroud for Busbar Joints (BUSBOOT)

MOQ : 1 Piece

Polyolefin Busbar Insulating Shroud for Busbar Joints (BUSBOOT) Specification

  • Size
  • Busbars 40 mm to 280 mm wide; about 160 standard designs; custom designs to drawing
  • Installation Guideline
  • Placed over the joint and closed with press-stud buttons using a plier tool; removable and re-usable
  • Product Type
  • Busbar joint insulating boot (shroud), re-usable, cold fitted
  • Thickness
  • 1.0 mm minimum (12 kV) to 2.5 mm minimum (36 kV), chosen by system voltage
  • Application
  • Insulating bolted busbar joints, tees, elbows and standoff connections in switchgear and busducts
  • Usage & Applications
  • Insulating bolted busbar joints, tees, elbows and standoff connections in switchgear and busducts
  • Color
  • Orange-red
  • Material
  • Cross-linked polyolefin



About Polyolefin Busbar Insulating Shroud for Busbar Joints (BUSBOOT)

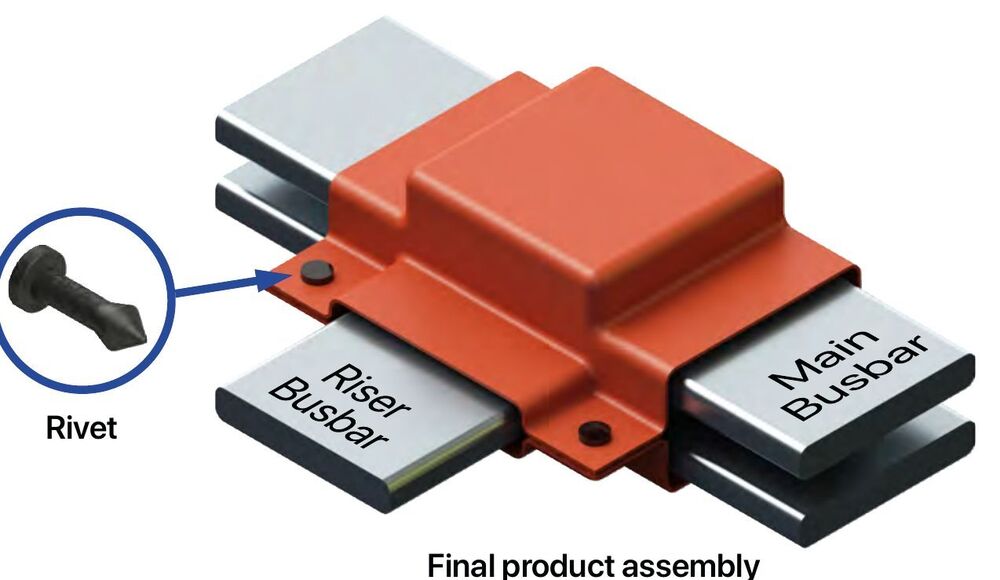

BUSBOOT Polyolefin is Gala's moulded insulating boot, or shroud, for bolted busbar joints and switchgear connections, made from flexible cross-linked polyolefin in orange-red. Insulating the joints as well as the busbar runs reduces the air clearance a panel needs around them, so switchgear and panel builders can design more compact panels and save on busbar length and sheet metal.

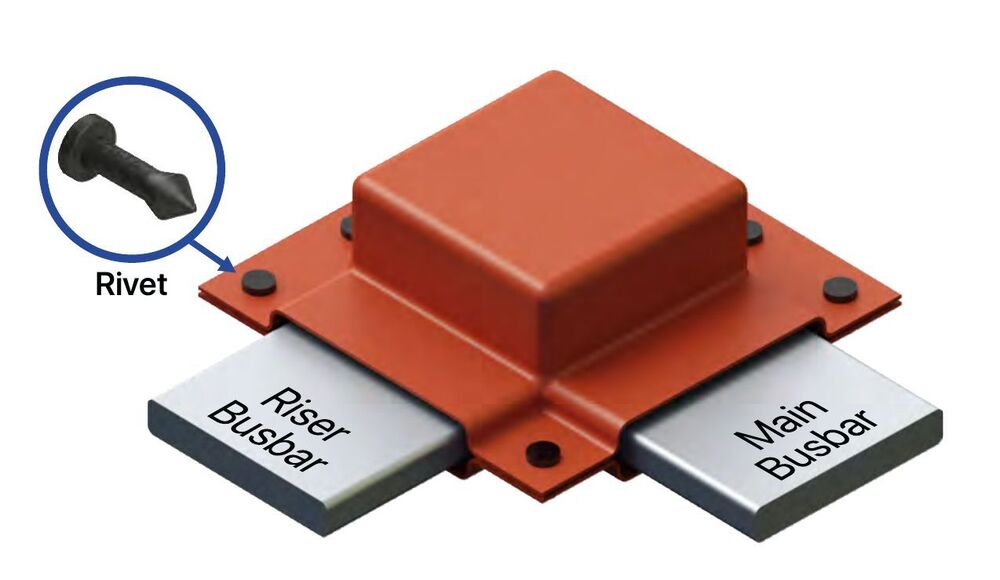

The boot is placed over a tee, elbow or lap joint and closed along its flanges with press-stud buttons, fitted with a plier tool. No heat is used, and the boot can be installed, removed or replaced in a few minutes, as often as maintenance requires. It suits busbar joints of almost any shape, and resists acid, alkali and salt corrosion.

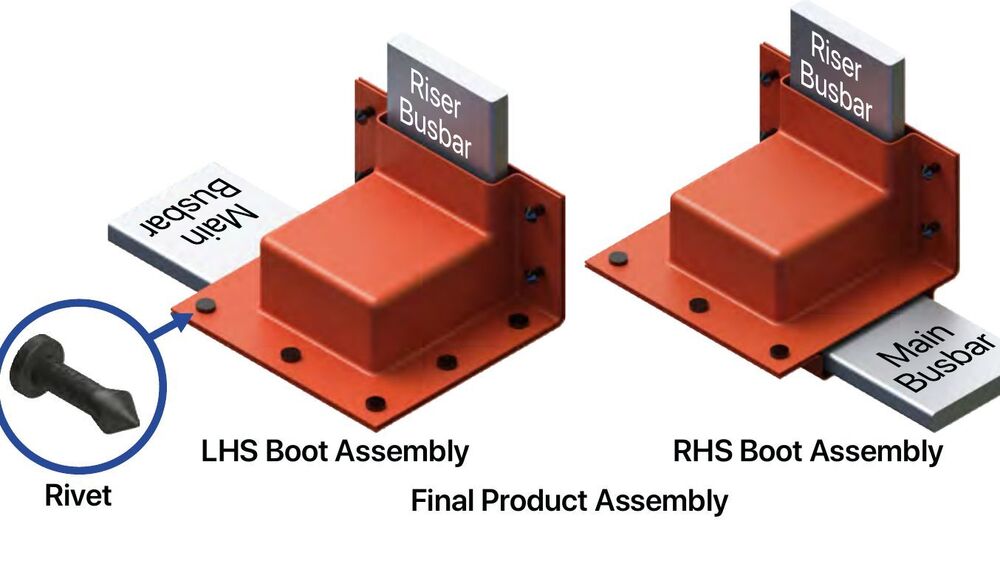

Gala's standard-designs catalogue lists about 160 existing designs for busbars from 40 mm to 280 mm wide, in L-type, T-type and straight shapes (centred and off-centred), L and T boots with a 90 deg riser, and standoff-insulator boots, each with its dimensions. New designs are developed from the customer's drawing. Gala's selection guide sets the minimum wall by system voltage, from 1.0 mm at 12 kV to 2.5 mm at 36 kV.

Manufactured by Gala in India. Datasheet and size selection on request.

Specifications

  • Brand: Gala
  • Product type: Busbar joint insulating boot (shroud), re-usable, cold fitted
  • Material: Cross-linked polyolefin
  • Colour: Orange-red
  • Size range: Busbars 40 mm to 280 mm wide; about 160 standard designs; custom designs to drawing
  • Wall type / thickness: 1.0 mm minimum (12 kV) to 2.5 mm minimum (36 kV), chosen by system voltage
  • Application: Insulating bolted busbar joints, tees, elbows and standoff connections in switchgear and busducts
  • Installation: Placed over the joint and closed with press-stud buttons using a plier tool; removable and re-usable
  • Country of origin: India

Sizes

  • Minimum wall thickness by system voltage: 12 kV 1.0 mm | 18 kV 1.4 mm | 24 kV 1.8 mm | 36 kV 2.5 mm
  • L type centred | 17 standard designs | busbar 50 to 250 mm
  • L type off-centred | 41 standard designs | busbar 40 to 280 mm
  • T type centred | 15 standard designs | busbar 50 to 120 mm
  • T type off-centred | 26 standard designs | busbar 40 to 250 mm
  • Straight type centred | 23 standard designs | busbar 46 to 255 mm
  • Straight type off-centred | 19 standard designs | busbar 40 to 255 mm
  • L boots with 90 deg riser | 8 standard designs
  • T boots with 90 deg riser | 2 standard designs
  • Standoff insulator boots | 13 standard designs
  • Full chart with every code and dimension: Gala standard-designs catalogue (datasheet on request). Thickness guide: Gala BUSBOOT Polyolefin sheet.

Applications: Switchgear and panel builders, MV switchboards, busduct manufacturers, transformer manufacturers, substations, power plants, industrial MV installations
